ENWW Tray 2 (cassette) parts removal 289
4 Remove eight screws (1) from the bottom plate (2) and remove the plate.

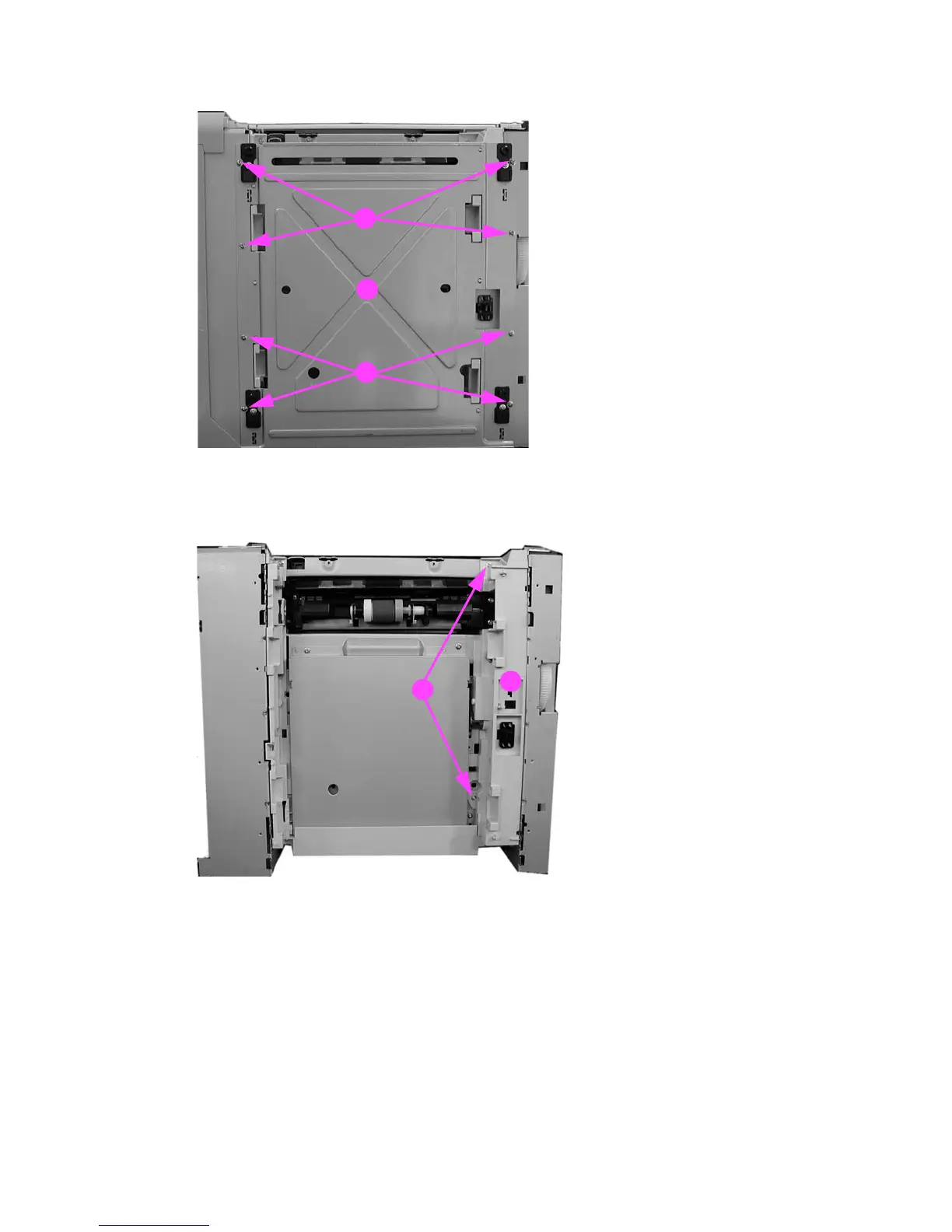

Figure 6-142 Right Tray 2 guide removal (2 of 3)
5 Remove two screws (1) from the right tray guide and remove the guide (2).
Figure 6-143 Right Tray 2 guide removal (3 of 3)
