HP 3500 Series

440 Troubleshooting ENWW
Sensors

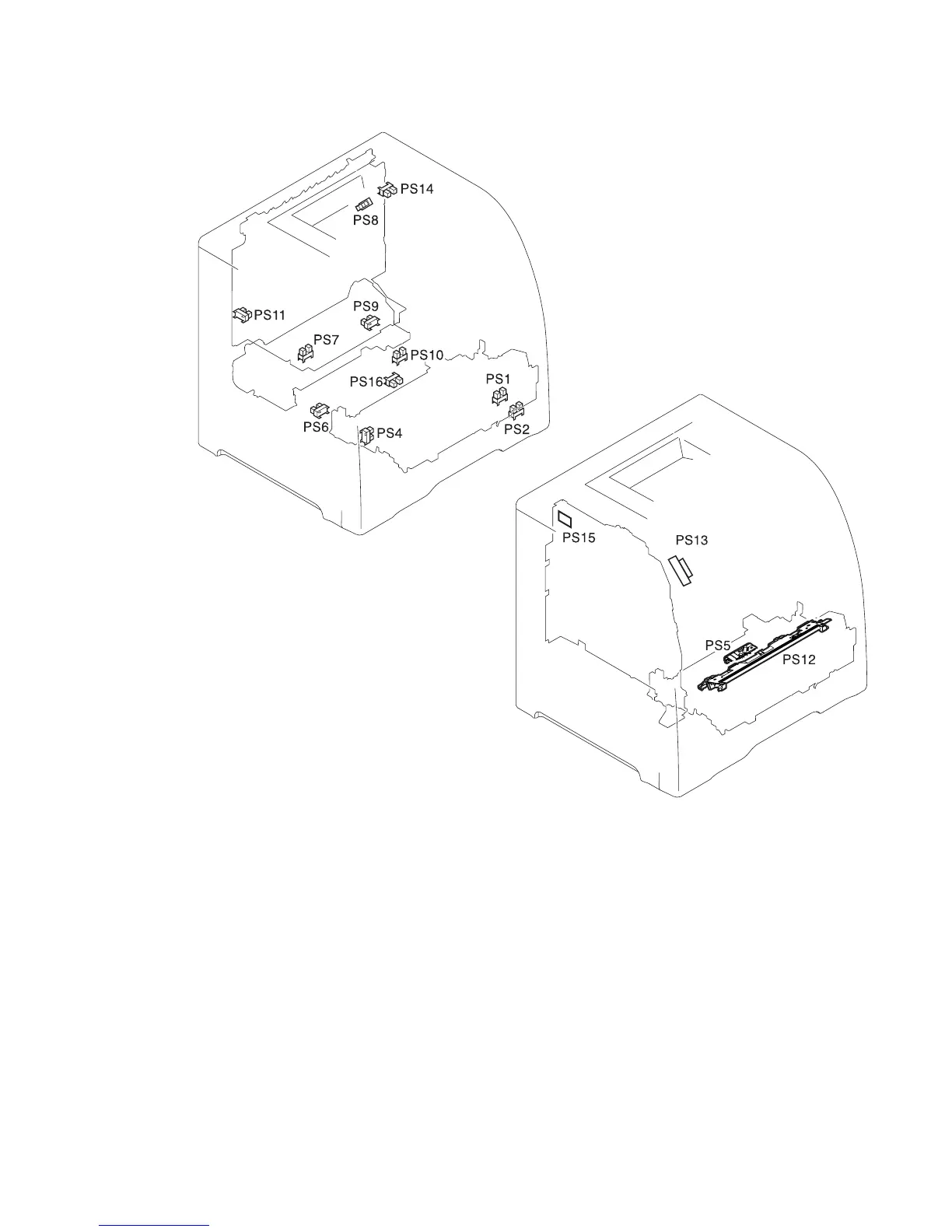

Figure 7-19 Location of sensors
PS1:
PS2:
PS4:
PS5:
PS6:
PS7:
PS8:
PS9:
Tray 1 paper sensor
Cassette paper sensor
Registration paper sensor
Media sensor
Fuser front paper sensor
Fuser delivery paper sensor
Face-down delivery paper sensor
Reversed paper sensor
PS10:
PS11:
PS12:
PS13:
PS14:
PS15:
PS16:
:
Duplexing feed delivery paper sensor
Face-up tray sensor
Color misregistration sensor
Waste toner level sensor
Developing engaging sensor
Environmental conditions sensor
Secondary transfer roller engaging sensor
