Solenoids and clutches

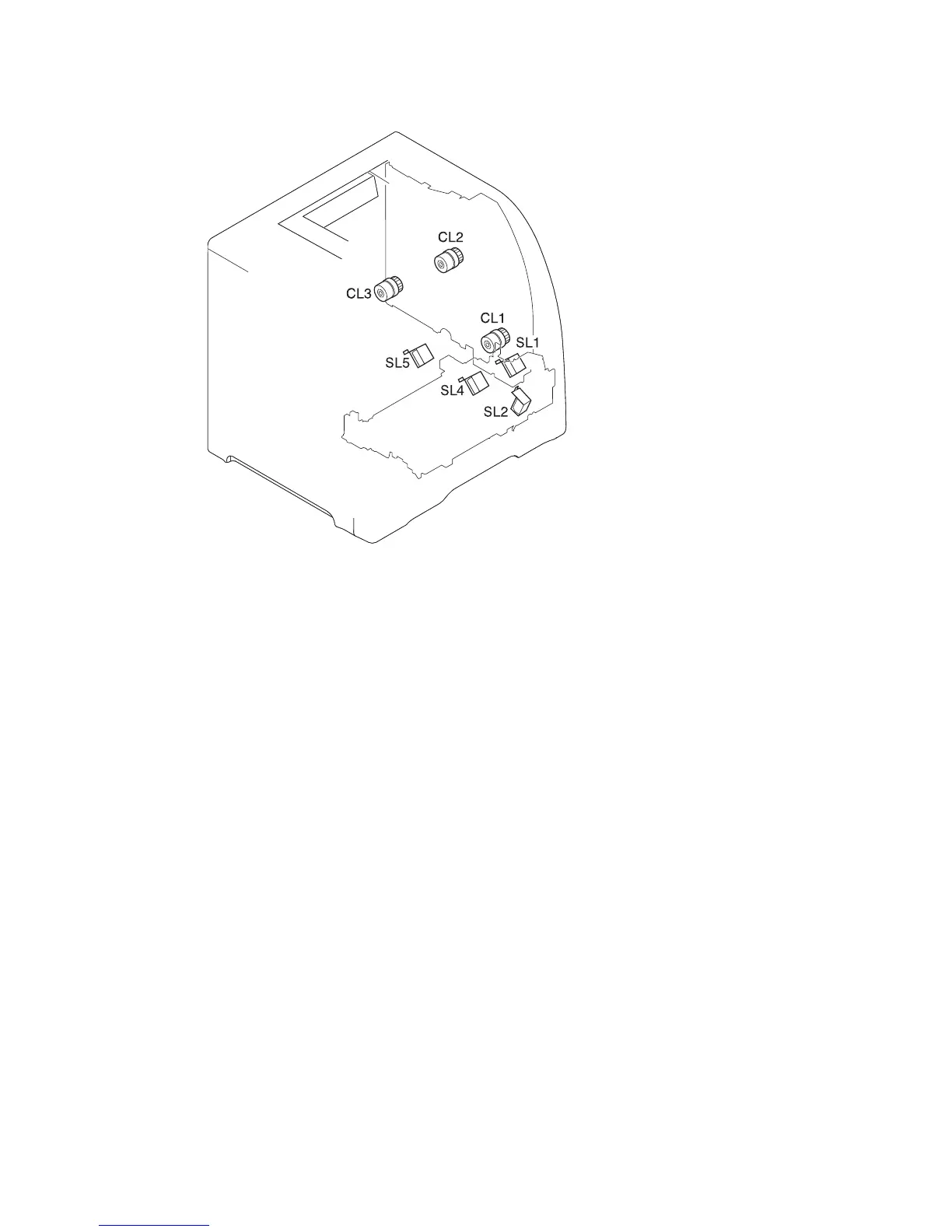

Figure 7-20 Location of solenoids and clutches
SL1:
SL2:
SL4:
SL5:
CL1:
CL2:
CL3:
Tray 1 pick-up solenoid
Tray 2 pick-up solenoid (pick-up/feed assembly)
Secondary transfer roller engaging solenoid
Duplex feed solenoid
Registration clutch
K development clutch (image drive unit)
Developing engaging clutch (developing engaging drive unit)
