442 Troubleshooting ENWW
Motors and fans

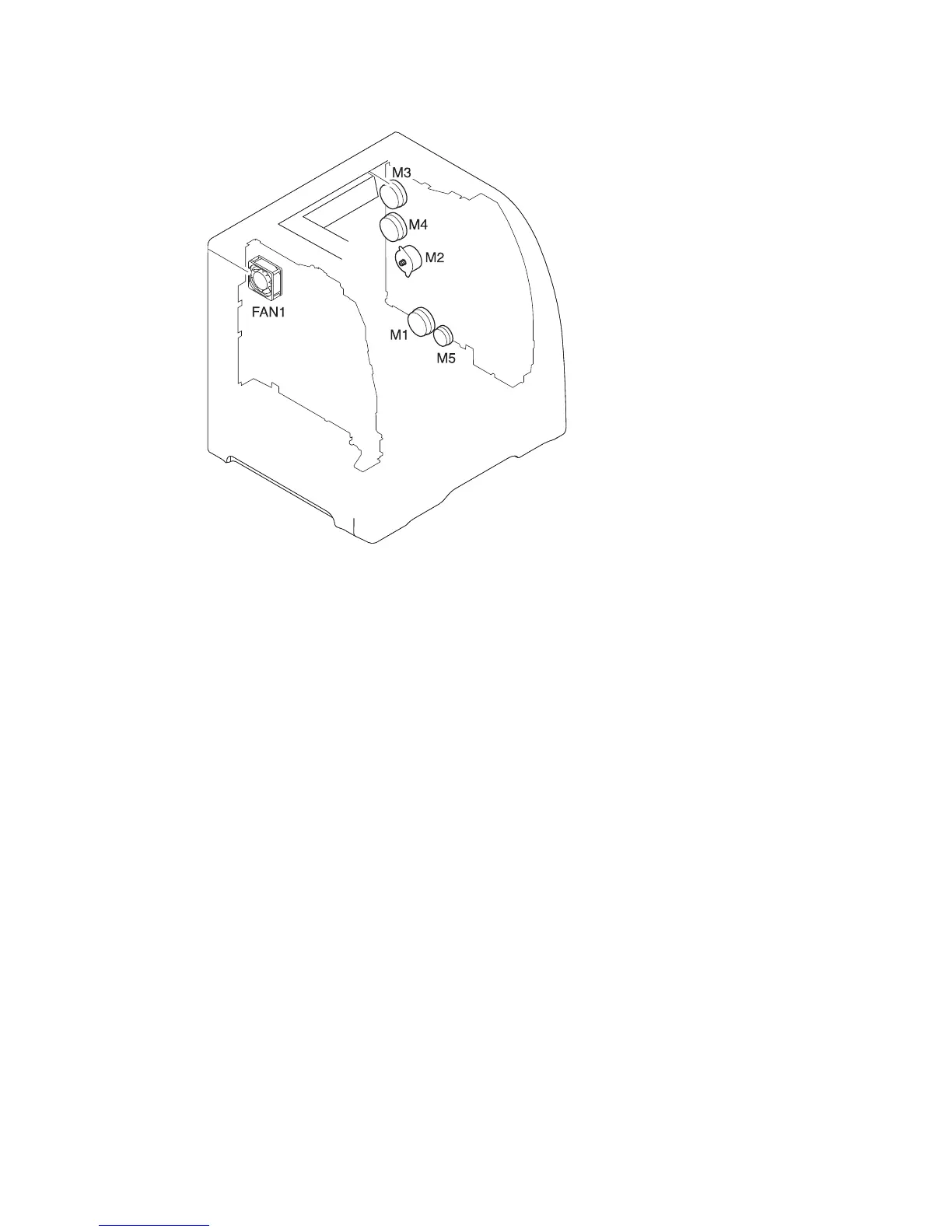

Figure 7-21 Location of motors and fans
M1:
M2:
M3:
M4:
M5:
FAN1:
Feed motor
Delivery motor
Drum motor
Developing motor
Primary transfer roller engaging motor
Exhaust fan
