PCBs

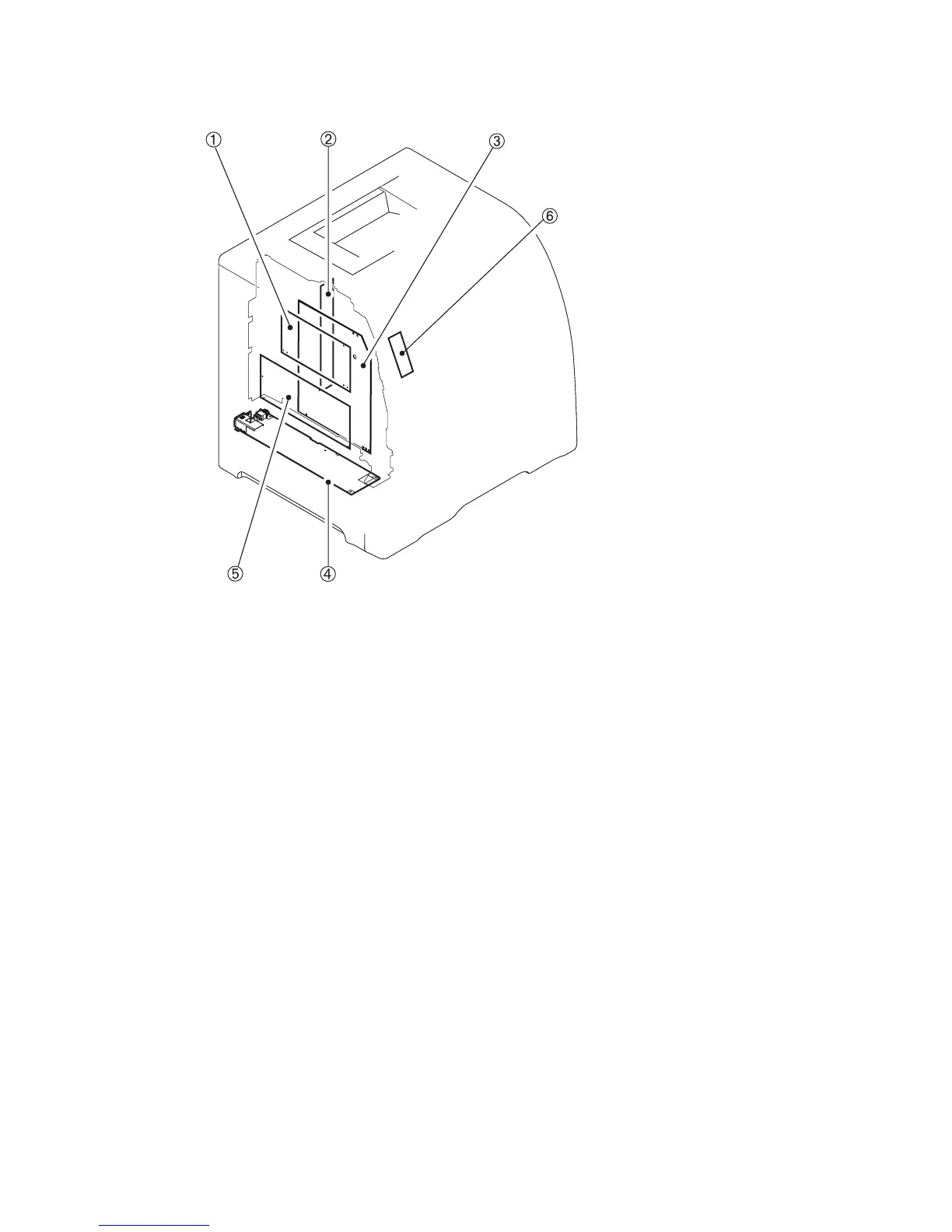

Figure 7-22 PCB locations
1. DC controller PCB
2. Memory controller PCB
3. High-voltage power supply PCBs
4. Low-voltage power supply PCB
5. Formatter PCB
6. Control panel PCB
