7. Push the metal slider located on the bottom of the mounting bracket up to allow the AP
to connect.
8. While still pushing the metal slider, align the mounting posts on the bracket with the
mounting holes on the AP. See Figure 5.

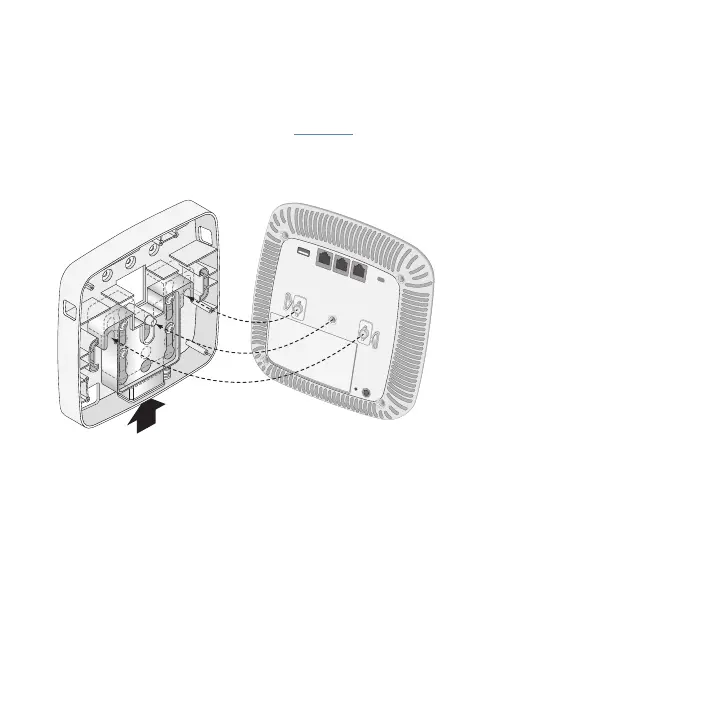

Figure 5: Attaching the AP to the mounting bracket
9. Install the T8 Torx security screw into the screw hole on the bottom of the mounting
bracket to complete the installation.
HP 355/365 AP Wall Mount Kit | Installation Guide 9
