PDH / DSn Testing With The HP 37717C
FAS Monitoring
alarms are logged on the selected logging device in real time.
FAS Monitoring

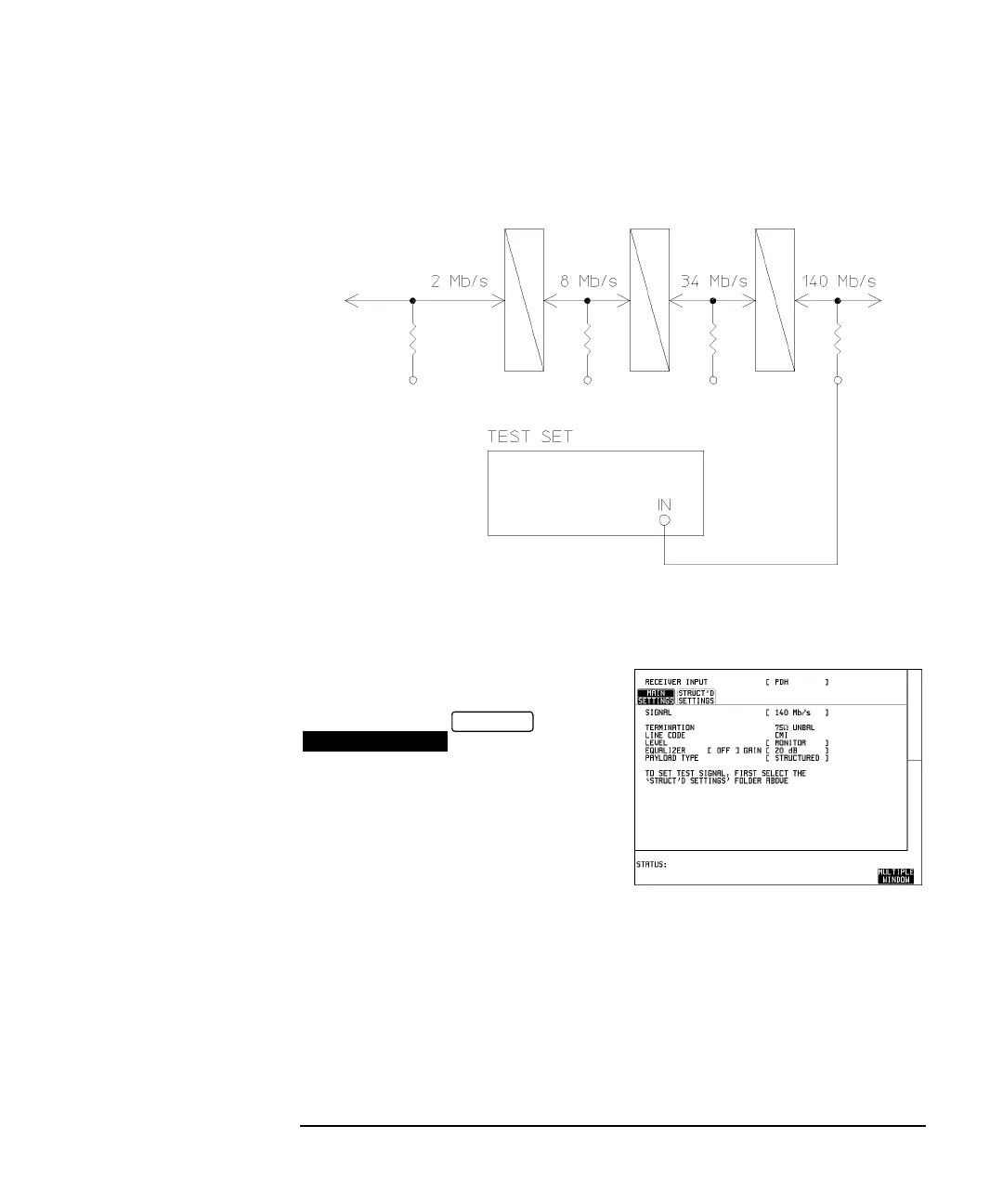

1. Connect the HP 37717C to the line
terminal equipment protected Monitor
point and set up the display
as shown opposite.
When Balanced FAS monitoring is desired
at an unprotected Monitor point use an HP
15511A Protective Monitor Probe.
The GAIN and EQUALIZER settings
should be set to optimize the received
signal.
PDH / DSn
RECEIVE
MAIN SETTINGS
To Next Page
