PDH / DSn Testing With The HP 37717C
M2100, M2110, M2120 Analysis
Default (Known State) Settings
It can be advisable to set the HP 37717C to a known state prior to setting up to make
a measurement. This clears all previous settings and provides a clearly defined
instrument state. For a list of Default Settings and the procedure for accessing them
see Stored Settings in the Mainframe Operating Manual.
Test Setup Procedure M2110 Analysis
The following Option must be fitted to the HP 37717C to perform this test:
• UKJ - Structured PDH Module
This setup procedure is interfaced at 140 Mb/s, with a test signal of 2 Mb/s with
PCM30CRC framing.

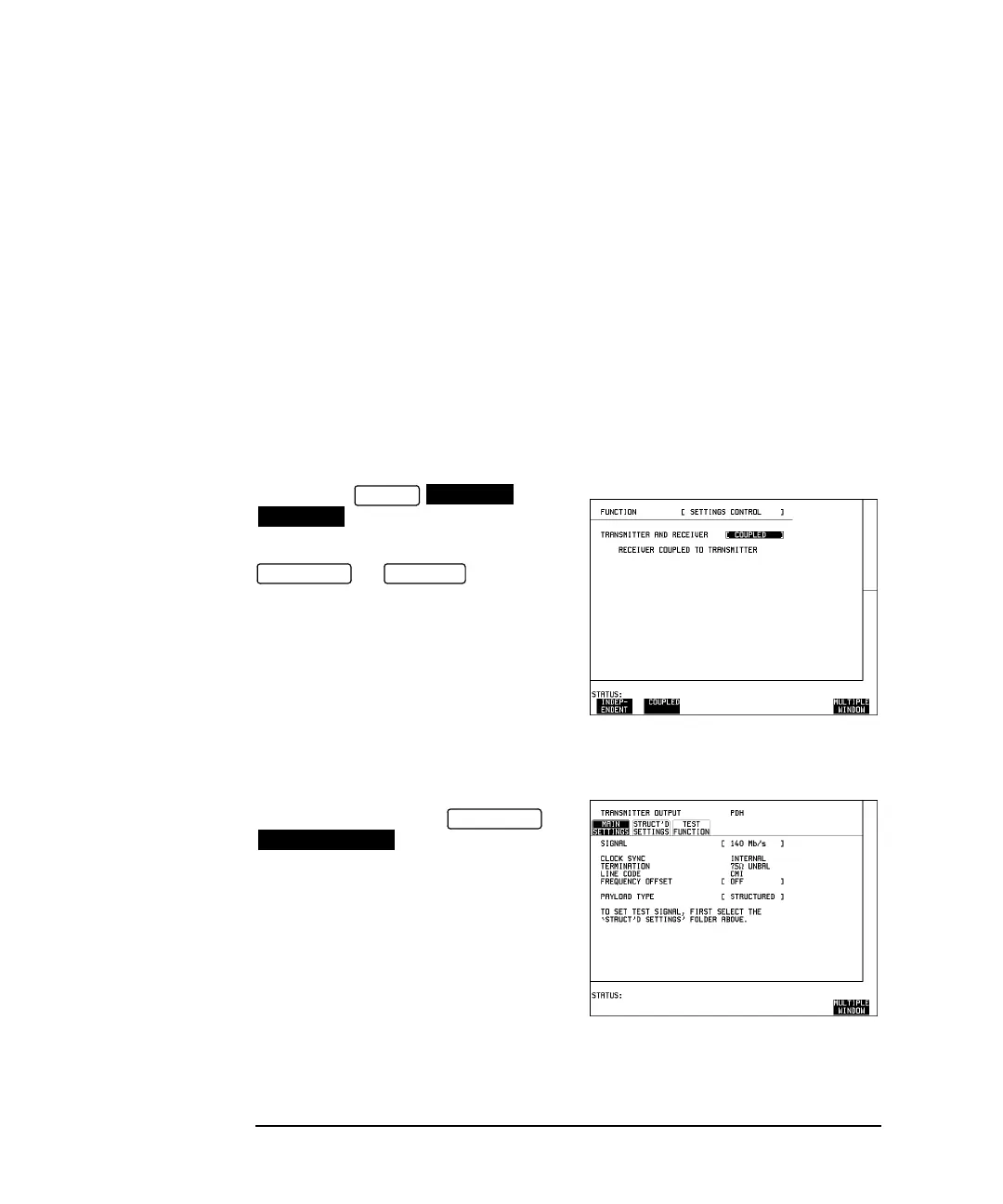

1. Set up the
display as shown opposite.
Any settings change made on the
] or displays will
automatically occur on the other.
2. Connect the HP 37717C to the line
equipment and set up the
display as shown
opposite.
The settings of SIGNAL rate and LINE
CODE must match those of the network
equipment.
OTHER
SETTINGS
CONTROL
TRANSMIT
RECEIVE
TRANSMIT
MAIN SETTINGS
To Next Page
