T.O.
33A1-12-349-1
Section
V
Paragraphs
5-22
to
5-23

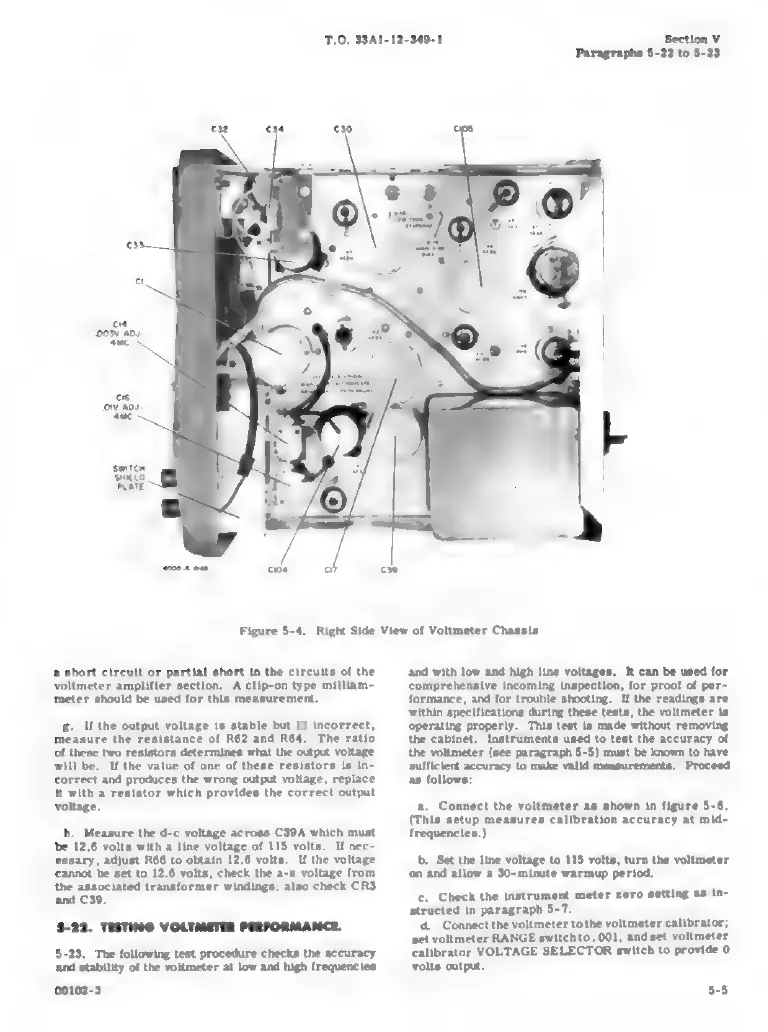

Figure
5-4.
Right
Side
View
of
Voltmeter
Chassis
a
short
circuit
or
partial
short
in
the
circuits
of
the
voltmeter
amplifier
section.
A
clip-on
type
milliam-
meter
should
be
used
for
this
measurement.
g.
If
the
output
voltage
is
stable
but
is
incorrect,
measure
the
resistance
of
R62
and
R64.
The
ratio
of
these
two
resistors
determines
what
the
output
voltage
will
be.
If
the
value
of
one
of
these
resistors
is
in-
correct
and
produces
the
wrong
output
voltage,
replace
it
with
a
resistor
which
provides
the
correct
output
voltage.
h.
Measure
the
d-c
voltage
across
C39A
which
must
be
12.6
volts
with
a
line
voltage
of
115
volts.
If
nec-
essary,
adjust
R66
to
obtain
12.6
volts.
If
the
voltage
cannot
be
set
to
12.6
volts,
check
the
a-c
voltage
from
the
associated
transformer
windings;
also
check
CR3
and
C39.
5-22.
TESTING
VOLTMETER
PERFORMANCE.
5-23.
The
following
test
procedure
checks
the
accuracy
and
stability
of
the
voltmeter
at
low
and
high
frequencies
00102-3
and
with
low and
high
line
voltages.
It
can
be
used
for
comprehensive
incoming
inspection,
for
proof
of
per-
formance,
and
for
trouble
shooting.
If
the
readings
are
within
specifications
during
these
tests,
the
voltmeter
is
operating
properly.
This
test
is
made
without
removing
the
cabinet.
Instruments
used
to
test
the
accuracy
of
the
voltmeter
(see
paragraph
5-5)
must
be
known
to
have
sufficient
accuracy
to
make
valid
measurements.
Proceed
as
follows:
a.
Connect
the
voltmeter
as
shown
in
figure
5-6.
(This
setup
measures
calibration
accuracy
at
mid-
frequencies.)
b,
Set
the
line
voltage
to
115
volts,
turn
the
voltmeter
on
and
allow
a
30-minute
warmup
period,
c.
Check
the
instrument
meter
zero
setting
as
in-
structed
in
paragraph
5-7.
‘&
Connect
the
voltmeter
tothe
voltmeter
calibrator;
set
voltmeter
RANGE
switchto.
001,
and
set
voltmeter
calibrator
VOLTAGE
SELECTOR
switch
to
provide
0
volts
output.
