Section
V
Paragraphs
5-24
to
5-26
T.O.
33A1-12-349-1
DISCONNECT
CHASSIS
GROUNDS
OSCILLATOR
HEWLETT-PACKARD
MODEL
200S
AT
ADAPTERS
ouTeuT
CN-I6/U
VARIABLE
TRANSFORMER
©),
©)
Féoo
8
FREQUENCY
RESPONSE
TEST
SET
HEWLETT-PACKARD
MODEL
739A
VOLTMETER
UNDER
TEST

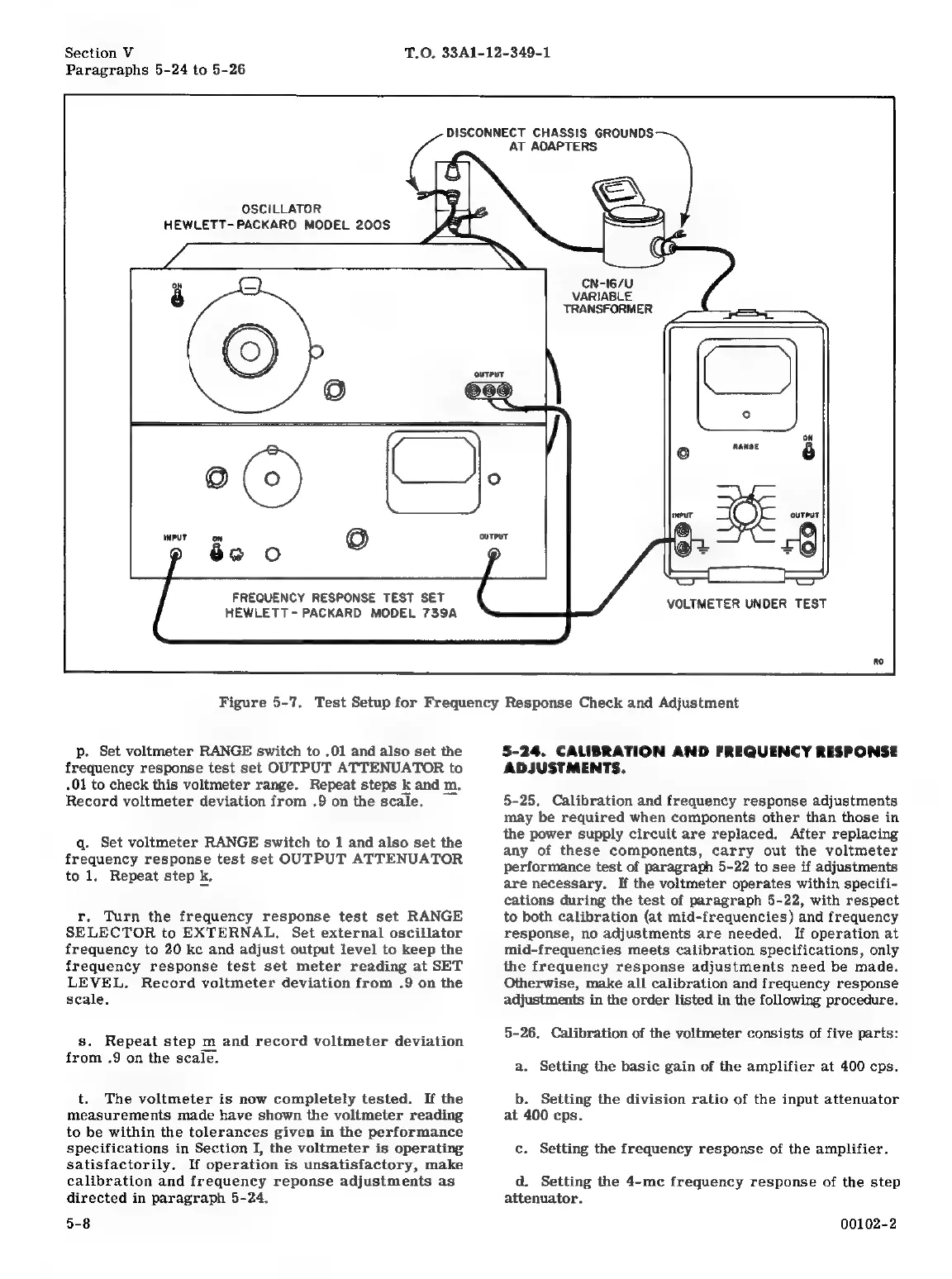

Figure
5-7.
Test
Setup
for
Frequency
Response
Check
and
Adjustment
p.
Set
voltmeter
RANGE
switch
to
.01
and
also
set
the
frequency
response
test
set
OUTPUT
ATTENUATOR
to
.01
to
check
this
voltmeter
range.
Repeat
steps
k
and
m,
Record
voltmeter
deviation
from
.9
on
the
scale.
q.
Set
voltmeter
RANGE
switch
to
1
and
also
set
the
frequency
response
test
set
OUTPUT
ATTENUATOR
to
1.
Repeat
step
k.
r.
Turn
the
frequency
response
test
set
RANGE
SELECTOR
to
EXTERNAL,
Set
external
oscillator
frequency
to
20
kc
and
adjust
output
level
to
keep
the
frequency
response
test
set
meter
reading
at
SET
LEVEL.
Record
voltmeter
deviation
from
.9
on
the
scale.
s.
Repeat
step
m
and
record
voltmeter
deviation
from
.9
on
the
scale.
t.
The
voltmeter
is
now
completely
tested.
If
the
measurements
made
have
shown
the
voltmeter
reading
to
be
within
the
tolerances
given
in
the
performance
specifications
in
Section
I,
the
voltmeter
is
operating
satisfactorily.
If
operation
is
unsatisfactory,
make
calibration
and
frequency
reponse
adjustments
as
directed
in
paragraph
5-24,
5-8
5-24.
CALIBRATION
AND
FREQUENCY
RESPONSE
ADJUSTMENTS.
5-25.
Calibration
and
frequency
response
adjustments
may
be
required
when
components
other
than
those
in
the
power
supply
circuit
are
replaced.
After
replacing
any
of
these
components,
carry
out
the
voltmeter
performance
test
of
paragraph
5-22
to
see
if
adjustments
are
necessary.
[If
the
voltmeter
operates
within
specifi-
cations
during
the
test
of
paragraph
5-22,
with
respect
to
both
calibration
(at
mid-frequencies)
and
frequency
response,
no
adjustments
are
needed.
If
operation
at
mid-frequencies
meets
calibration
specifications,
only
the
frequency
response
adjustments
need
be
made.
Otherwise,
make
all
calibration
and
frequency
response
adjustments
in
the
order
listed
in
the
following
procedure.
5-26.
Calibration
of
the
voltmeter
consists
of
five
parts:
a.
Setting
the
basic
gain
of
the
amplifier
at
400
cps.
b.
Setting
the
division
ratio
of
the
input
attenuator
at
400
cps.
c.
Setting
the
frequency
response
of
the
amplifier.
d.
Setting
the
4-mec
frequency
response
of
the
step
attenuator.
00102-2
