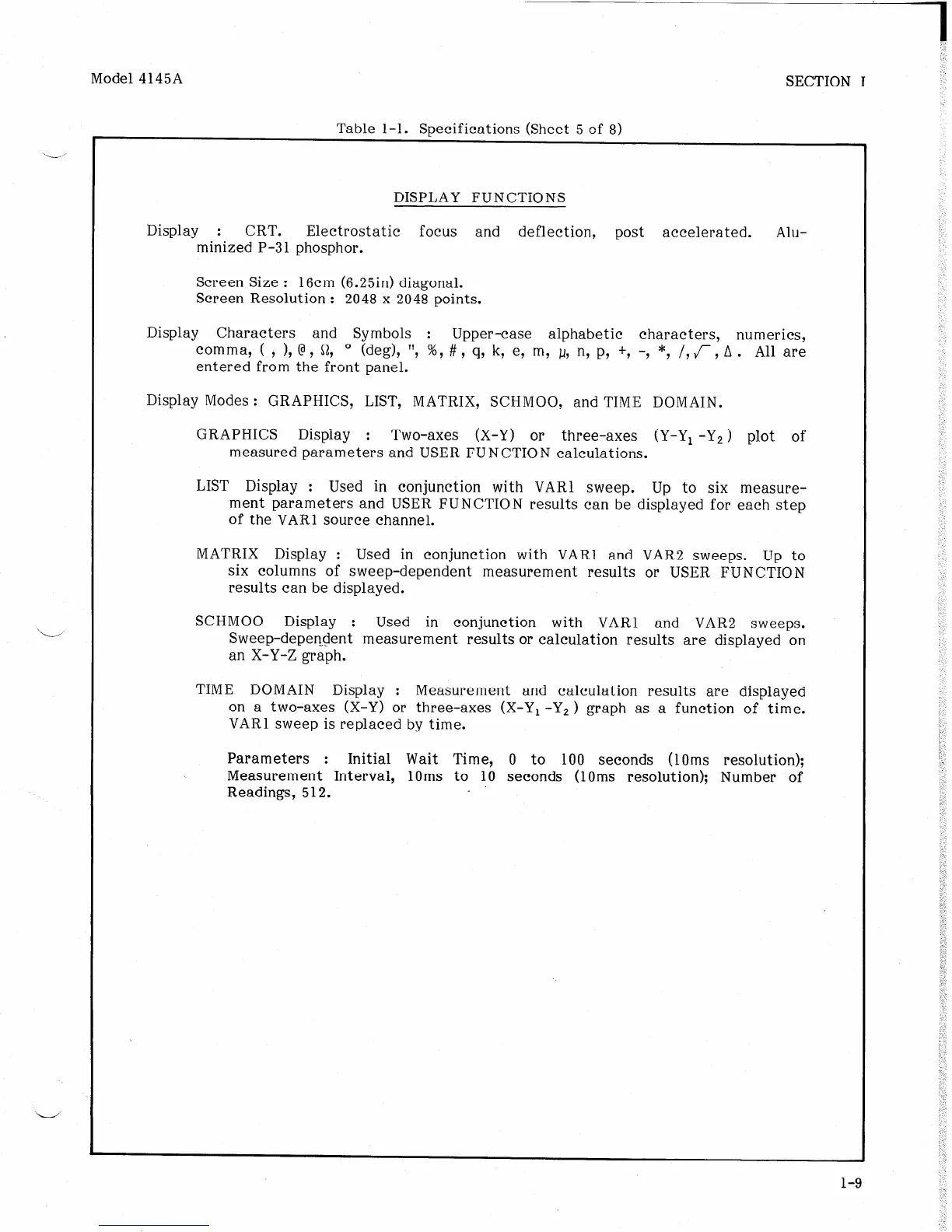

Model 4145A SECTION I
Table l-l. Specifications (Sheet 5 of 8)
DISPLAY FUNCTIONS
Display : CRT. Electrostatic focus and deflection, post accelerated.
Alu-
minized P-3 1 phosphor.
Screen Size : 16cm (6.25in) diagonal.
Screen Resolution : 2048 x 2048 points.
Display Characters and Symbols :
Upper-case
alphabetic characters, numerics,
comma ( ) @ R O
entered frAm9 th’e iront(W&,l 5 % # y CL k, e7 my I-I, n, P, +, -) *, /, J- 7 A . All are
.
Display Modes : GRAPHICS, LIST, MATRIX, SCHMOO, and TIME DOMAIN.
GRAPHICS Display : Two-axes (X-Y) or three-axes (Y-Y, -Y2) plot of
measured parameters and USER FUNCTION calculations.
LIST Display : Used in conjunction with VARl sweep. Up to six measure-
ment parameters and USER FUNCTION results can be displayed for each step
of the VARl source channel.
MATRIX Display : Used in conjunction with VARl and VAR2 sweeps. Up to
six columns of sweep-dependent measurement results or USER FUNCTION
results can be displayed.
SCHMOO Display : Used in conjunction with VARl and VAR2 sweeps.
Sweep-dependent measurement results or calculation results are displayed on
an X-Y-Z graph.
TIME DOMAIN Display : Measurement and calculation results are displayed
on a two-axes (X-Y) or three-axes (X-Y, -Y2 ) graph as a function of time.
VARl sweep is replaced by time.
Parameters : Initial Wait Time, 0 to 100 seconds (1 Oms resolution);
Measurement Interval, 1Oms to 10 seconds (1 Oms resolution); Number of
Readings, 5 12.
l-9
