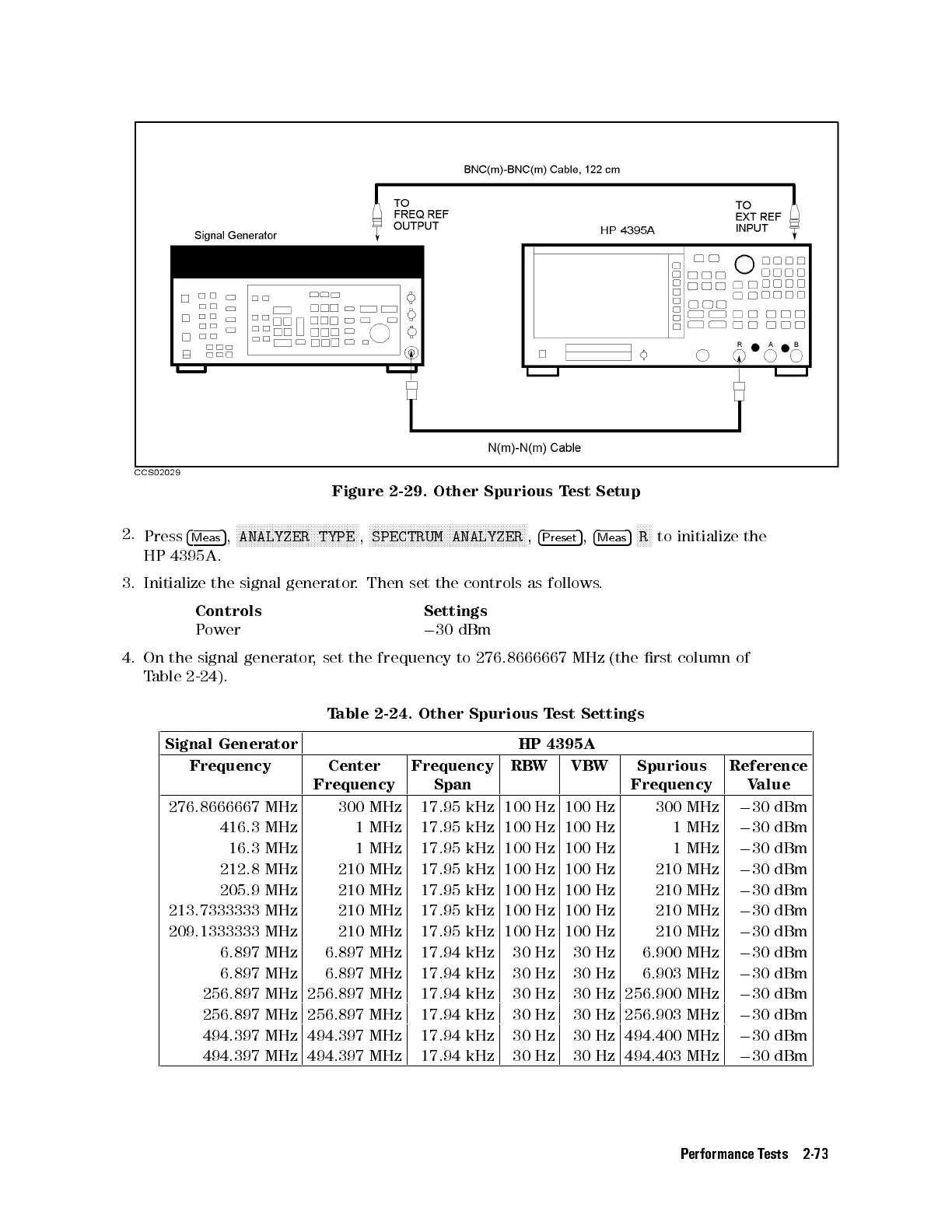

Figure 2-29. Other Spurious Test Setup
2.
Press 4
Meas
5 ,
N
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
ANALYZER TYPE ,
N
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
SPECTRUM ANALYZER , 4
Preset
5 , 4
Meas
5
N
NNNN
R to initialize the
HP 4395A.
3. Initialize the signal generator. Then set the controls as follows.
Controls Settings
Power 0 30 dBm
4. On the signal generator, set the frequency to 276.8666667 MHz (the rst column of
Table 2-24 ).
Table 2-24. Other Spurious Test Settings
Signal Generator HP 4395A
Frequency Center
Frequency
Frequency
Span
RBW VBW Spurious
Frequency
Reference
Value
276.8666667 MHz 300 MHz 17.95 kHz 100 Hz 100 Hz 300 MHz 0 30 dBm
416.3 MHz 1 MHz 17.95 kHz 100 Hz 100 Hz 1 MHz 0 30 dBm
16.3 MHz 1 MHz 17.95 kHz 100 Hz 100 Hz 1 MHz 0 30 dBm
212.8 MHz 210 MHz 17.95 kHz 100 Hz 100 Hz 210 MHz 0 30 dBm
205.9 MHz 210 MHz 17.95 kHz 100 Hz 100 Hz 210 MHz 0 30 dBm
213.7333333 MHz 210 MHz 17.95 kHz 100 Hz 100 Hz 210 MHz 0 30 dBm
209.1333333 MHz 210 MHz 17.95 kHz 100 Hz 100 Hz 210 MHz 0 30 dBm
6.897 MHz 6.897 MHz 17.94 kHz 30 Hz 30 Hz 6.900 MHz 0 30 dBm
6.897 MHz 6.897 MHz 17.94 kHz 30 Hz 30 Hz 6.903 MHz 0 30 dBm
256.897 MHz 256.897 MHz 17.94 kHz 30 Hz 30 Hz 256.900 MHz 0 30 dBm
256.897 MHz 256.897 MHz 17.94 kHz 30 Hz 30 Hz 256.903 MHz 0 30 dBm
494.397 MHz 494.397 MHz 17.94 kHz 30 Hz 30 Hz 494.400 MHz 0 30 dBm
494.397 MHz 494.397 MHz 17.94 kHz 30 Hz 30 Hz 494.403 MHz 0 30 dBm
Performance Tests 2-73
