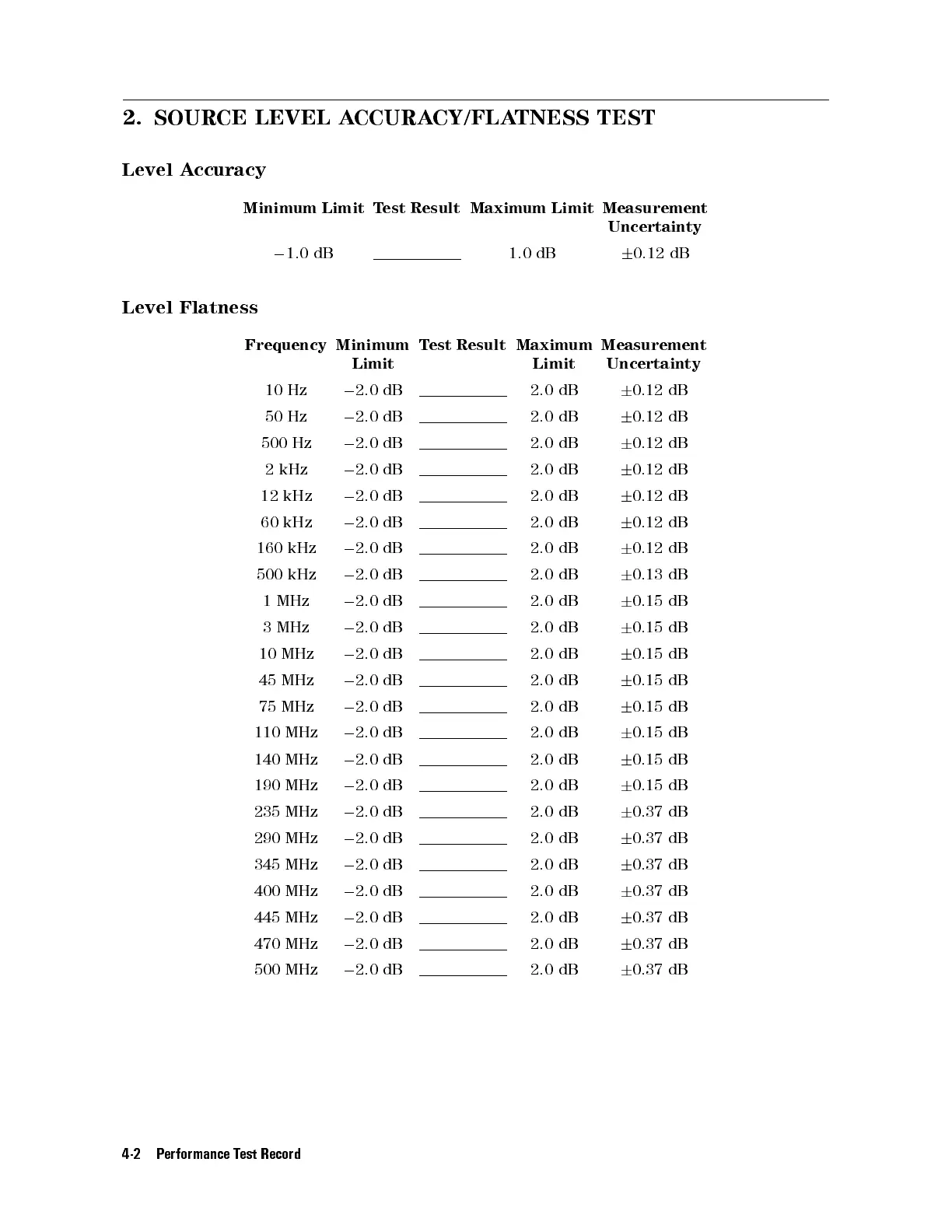

2. SOURCE LEVEL ACCURACY/FLATNESS TEST
Level Accuracy
Minimum Limit Test Result Maximum Limit Measurement
Uncertainty
0 1.0 dB 1.0 dB 6 0.12 dB
Level Flatness
Frequency Minimum
Limit
Test Result Maximum
Limit
Measurement
Uncertainty
10 Hz 0 2.0 dB 2.0 dB 6 0.12 dB
50 Hz 0 2.0 dB 2.0 dB 6 0.12 dB
500 Hz 0 2.0 dB 2.0 dB 6 0.12 dB
2 kHz 0 2.0 dB 2.0 dB 6 0.12 dB
12 kHz 0 2.0 dB 2.0 dB 6 0.12 dB
60 kHz 0 2.0 dB 2.0 dB 6 0.12 dB
160 kHz 0 2.0 dB 2.0 dB 6 0.12 dB
500 kHz 0 2.0 dB 2.0 dB 6 0.13 dB
1 MHz 0 2.0 dB 2.0 dB 6 0.15 dB
3 MHz 0 2.0 dB 2.0 dB 6 0.15 dB
10 MHz 0 2.0 dB 2.0 dB 6 0.15 dB
45 MHz 0 2.0 dB 2.0 dB 6 0.15 dB
75 MHz 0 2.0 dB 2.0 dB 6 0.15 dB
110 MHz 0 2.0 dB 2.0 dB 6 0.15 dB
140 MHz 0 2.0 dB 2.0 dB 6 0.15 dB
190 MHz 0 2.0 dB 2.0 dB 6 0.15 dB
235 MHz 0 2.0 dB 2.0 dB 6 0.37 dB
290 MHz 0 2.0 dB 2.0 dB 6 0.37 dB
345 MHz 0 2.0 dB 2.0 dB 6 0.37 dB
400 MHz 0 2.0 dB 2.0 dB 6 0.37 dB
445 MHz 0 2.0 dB 2.0 dB 6 0.37 dB
470 MHz 0 2.0 dB 2.0 dB 6 0.37 dB
500 MHz 0 2.0 dB 2.0 dB 6 0.37 dB
4-2 Performance Test Record
