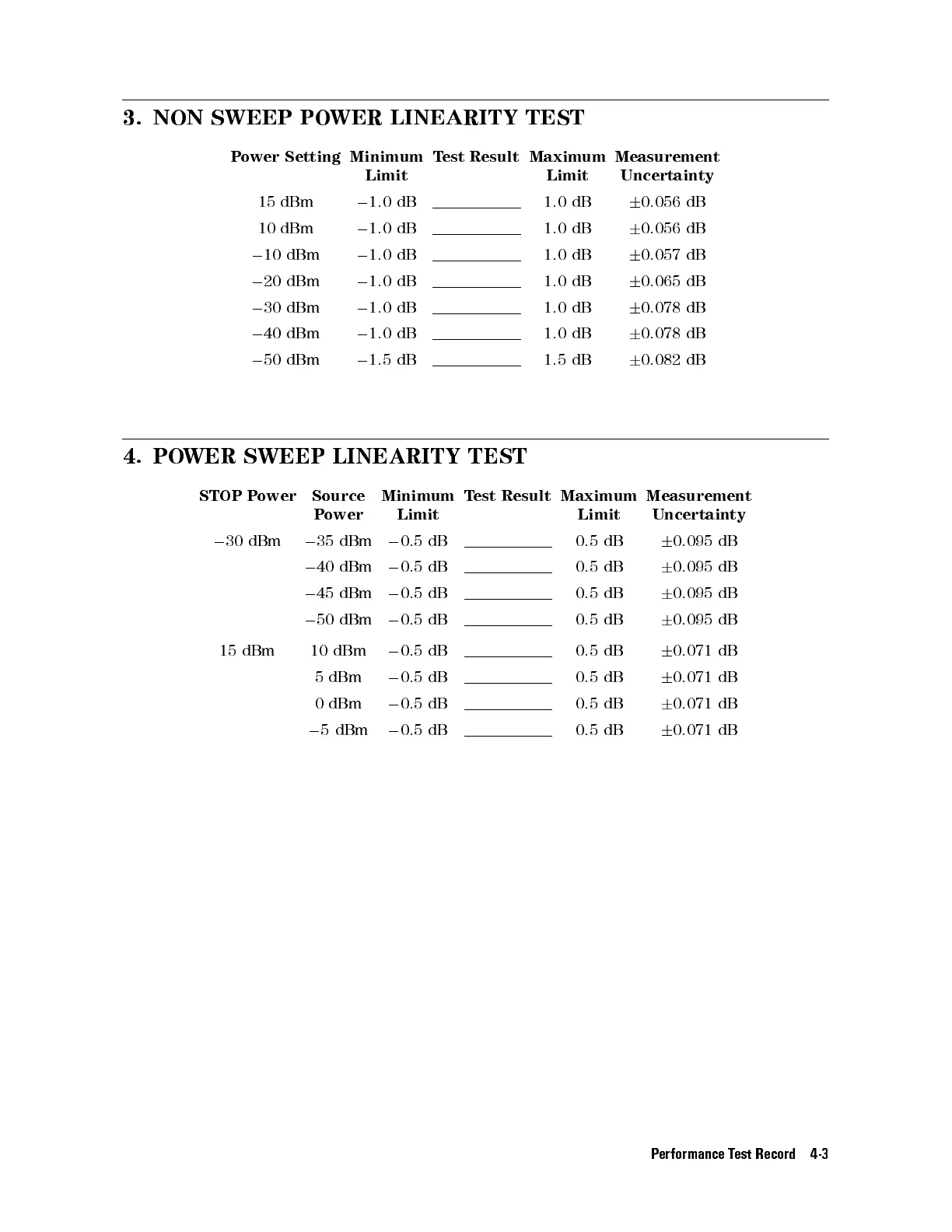

3. NON SWEEP POWER LINEARITY TEST
Power Setting Minimum
Limit
Test Result Maximum
Limit
Measurement
Uncertainty
15 dBm 0 1.0 dB 1.0 dB 6 0.056 dB
10 dBm 0 1.0 dB 1.0 dB 6 0.056 dB
0 10 dBm 0 1.0 dB 1.0 dB 6 0.057 dB
0 20 dBm 0 1.0 dB 1.0 dB 6 0.065 dB
0 30 dBm 0 1.0 dB 1.0 dB 6 0.078 dB
0 40 dBm 0 1.0 dB 1.0 dB 6 0.078 dB
0 50 dBm 0 1.5 dB 1.5 dB 6 0.082 dB
4. POWER SWEEP LINEARITY TEST
STOP Power Source
Power
Minimum
Limit
Test Result Maximum
Limit
Measurement
Uncertainty
0 30 dBm 0 35 dBm 0 0.5 dB 0.5 dB 6 0.095 dB
0 40 dBm 0 0.5 dB 0.5 dB 6 0.095 dB
0 45 dBm 0 0.5 dB 0.5 dB 6 0.095 dB
0 50 dBm 0 0.5 dB 0.5 dB 6 0.095 dB
15 dBm 10 dBm 0 0.5 dB 0.5 dB 6 0.071 dB
5 dBm 0 0.5 dB 0.5 dB 6 0.071 dB
0 dBm 0 0.5 dB 0.5 dB 6 0.071 dB
0 5 dBm 0 0.5 dB 0.5 dB 6 0.071 dB
Performance Test Record 4-3
