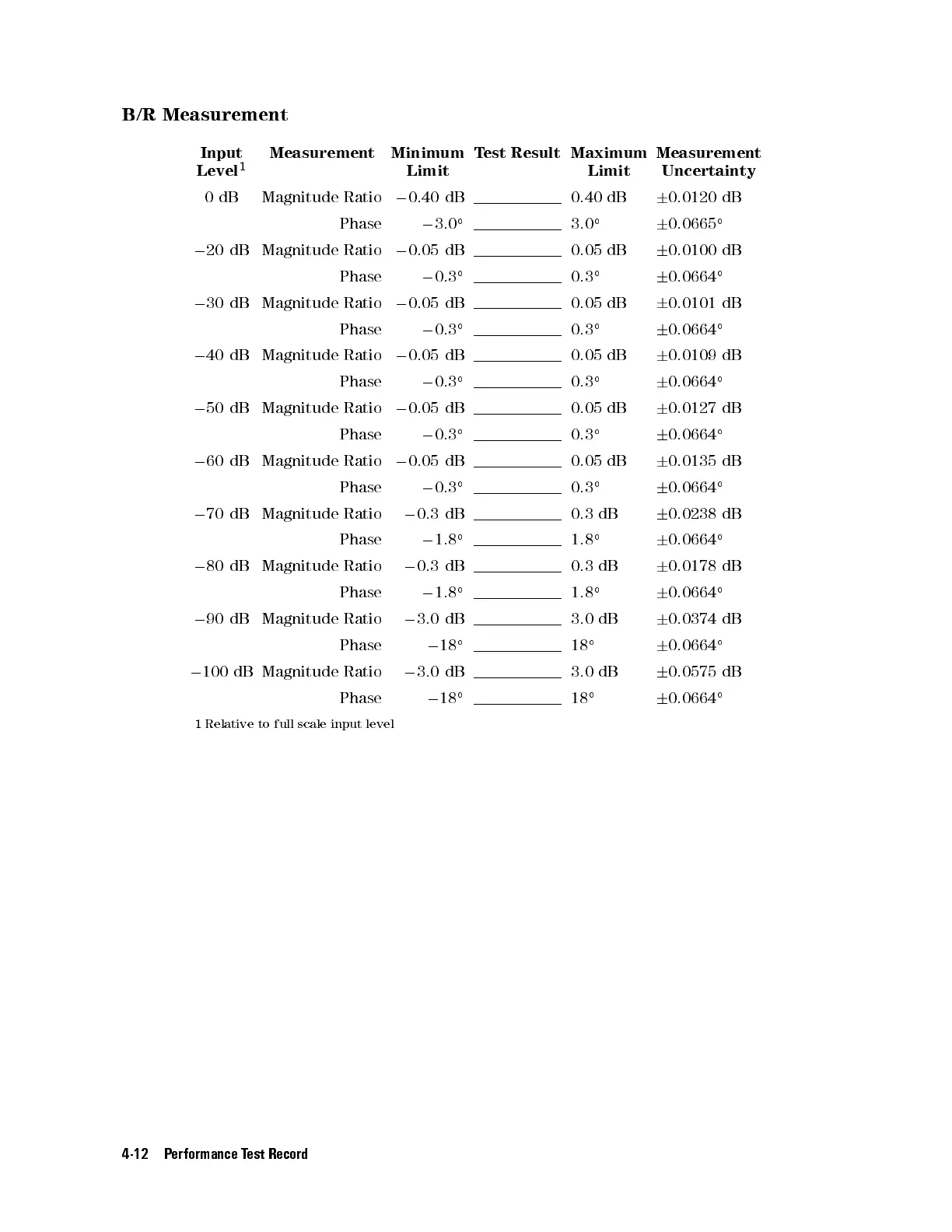

B/R Measurement
Input
Level
1
Measurement Minimum
Limit
Test Result Maximum
Limit
Measurement
Uncertainty
0dB Magnitude Ratio 0 0.40 dB 0.40 dB 6 0.0120 dB
Phase 0 3.0

3.0

6 0.0665

0 20 dB Magnitude Ratio 0 0.05 dB 0.05 dB 6 0.0100 dB
Phase 0 0.3

0.3

6 0.0664

0 30 dB Magnitude Ratio 0 0.05 dB 0.05 dB 6 0.0101 dB
Phase 0 0.3

0.3

6 0.0664

0 40 dB Magnitude Ratio 0 0.05 dB 0.05 dB 6 0.0109 dB
Phase 0 0.3

0.3

6 0.0664

0 50 dB Magnitude Ratio 0 0.05 dB 0.05 dB 6 0.0127 dB
Phase 0 0.3

0.3

6 0.0664

0 60 dB Magnitude Ratio 0 0.05 dB 0.05 dB 6 0.0135 dB
Phase 0 0.3

0.3

6 0.0664

0 70 dB Magnitude Ratio 0 0.3 dB 0.3 dB 6 0.0238 dB
Phase 0 1.8

1.8

6 0.0664

0 80 dB Magnitude Ratio 0 0.3 dB 0.3 dB 6 0.0178 dB
Phase 0 1.8

1.8

6 0.0664

0 90 dB Magnitude Ratio 0 3.0 dB 3.0 dB 6 0.0374 dB
Phase 0 18

18

6 0.0664

0 100 dB Magnitude Ratio 0 3.0 dB 3.0 dB 6 0.0575 dB
Phase 0 18

18

6 0.0664

1 Relative to full scale input level
