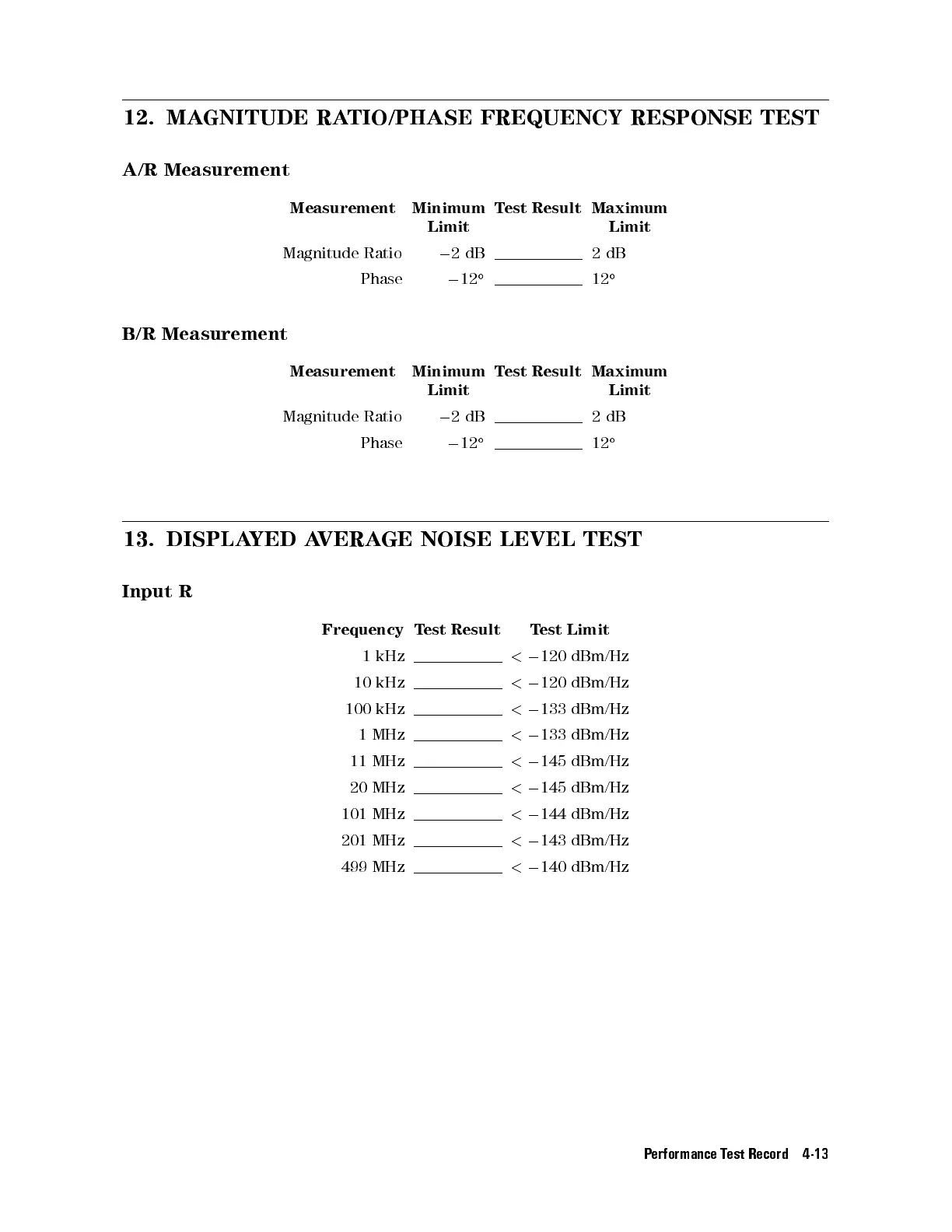

12. MAGNITUDE RATIO/PHASE FREQUENCY RESPONSE TEST
A/R Measurement
Measurement Minimum
Limit
Test Result Maximum
Limit
Magnitude Ratio 0 2dB 2dB
Phase 0 12

12

B/R Measurement
Measurement Minimum
Limit
Test Result Maximum
Limit
Magnitude Ratio 0 2dB 2dB
Phase 0 12

12

13. DISPLAYED AVERAGE NOISE LEVEL TEST
Input R
Frequency Test Result Test Limit
1 kHz < 0 120 dBm/Hz
10 kHz < 0 120 dBm/Hz
100 kHz < 0 133 dBm/Hz
1 MHz < 0 133 dBm/Hz
11 MHz < 0 145 dBm/Hz
20 MHz < 0 145 dBm/Hz
101 MHz < 0 144 dBm/Hz
201 MHz < 0 143 dBm/Hz
499 MHz < 0 140 dBm/Hz
Performance Test Record 4-13
