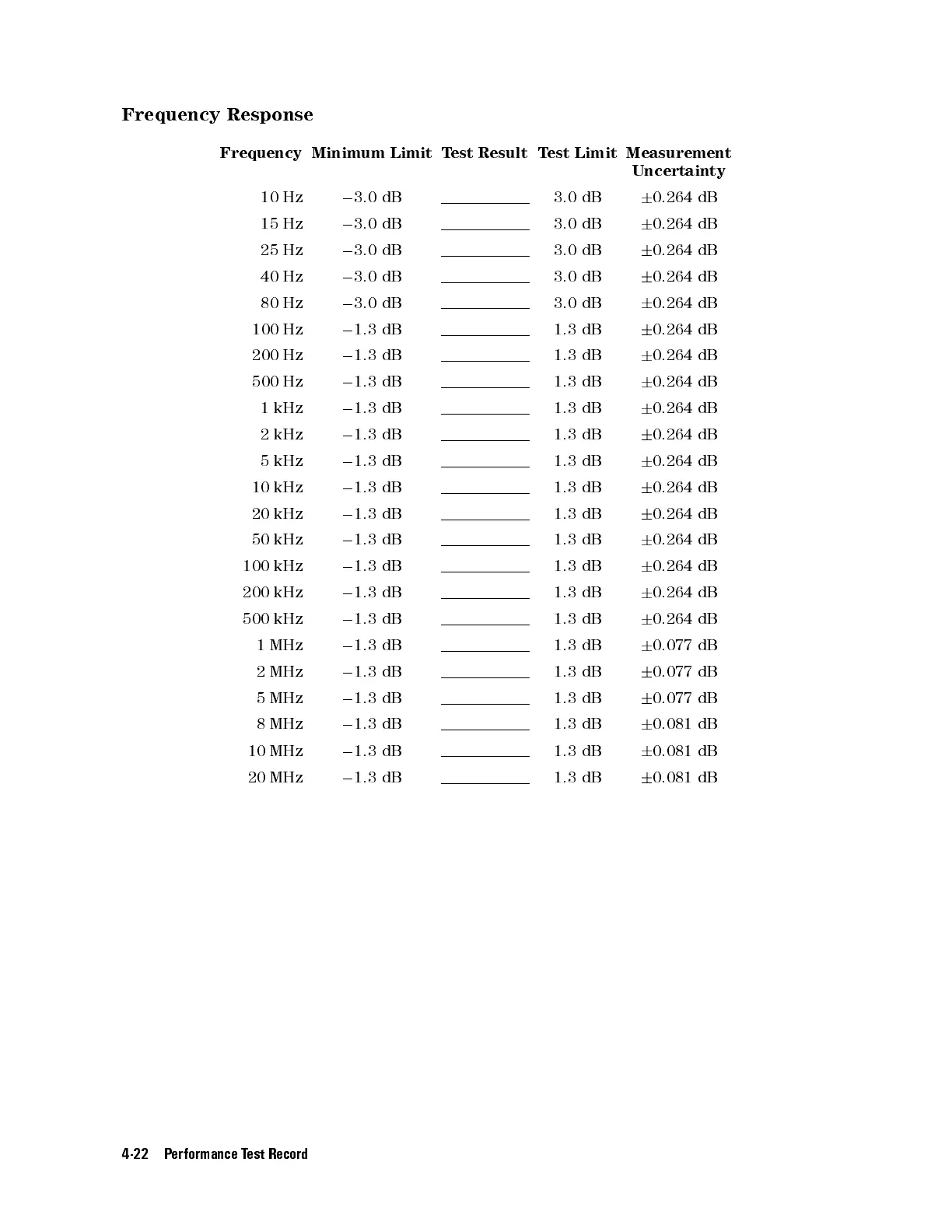

Frequency Response
Frequency Minimum Limit Test Result Test Limit Measurement
Uncertainty
10 Hz 0 3.0 dB 3.0 dB 6 0.264 dB
15 Hz 0 3.0 dB 3.0 dB 6 0.264 dB
25 Hz 0 3.0 dB 3.0 dB 6 0.264 dB
40 Hz 0 3.0 dB 3.0 dB 6 0.264 dB
80 Hz 0 3.0 dB 3.0 dB 6 0.264 dB
100 Hz 0 1.3 dB 1.3 dB 6 0.264 dB
200 Hz 0 1.3 dB 1.3 dB 6 0.264 dB
500 Hz 0 1.3 dB 1.3 dB 6 0.264 dB
1 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
2 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
5 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
10 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
20 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
50 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
100 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
200 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
500 kHz 0 1.3 dB 1.3 dB 6 0.264 dB
1 MHz 0 1.3 dB 1.3 dB 6 0.077 dB
2 MHz 0 1.3 dB 1.3 dB 6 0.077 dB
5 MHz 0 1.3 dB 1.3 dB 6 0.077 dB
8 MHz 0 1.3 dB 1.3 dB 6 0.081 dB
10 MHz 0 1.3 dB 1.3 dB 6 0.081 dB
20 MHz 0 1.3 dB 1.3 dB 6 0.081 dB
4-22 Performance Test Record
