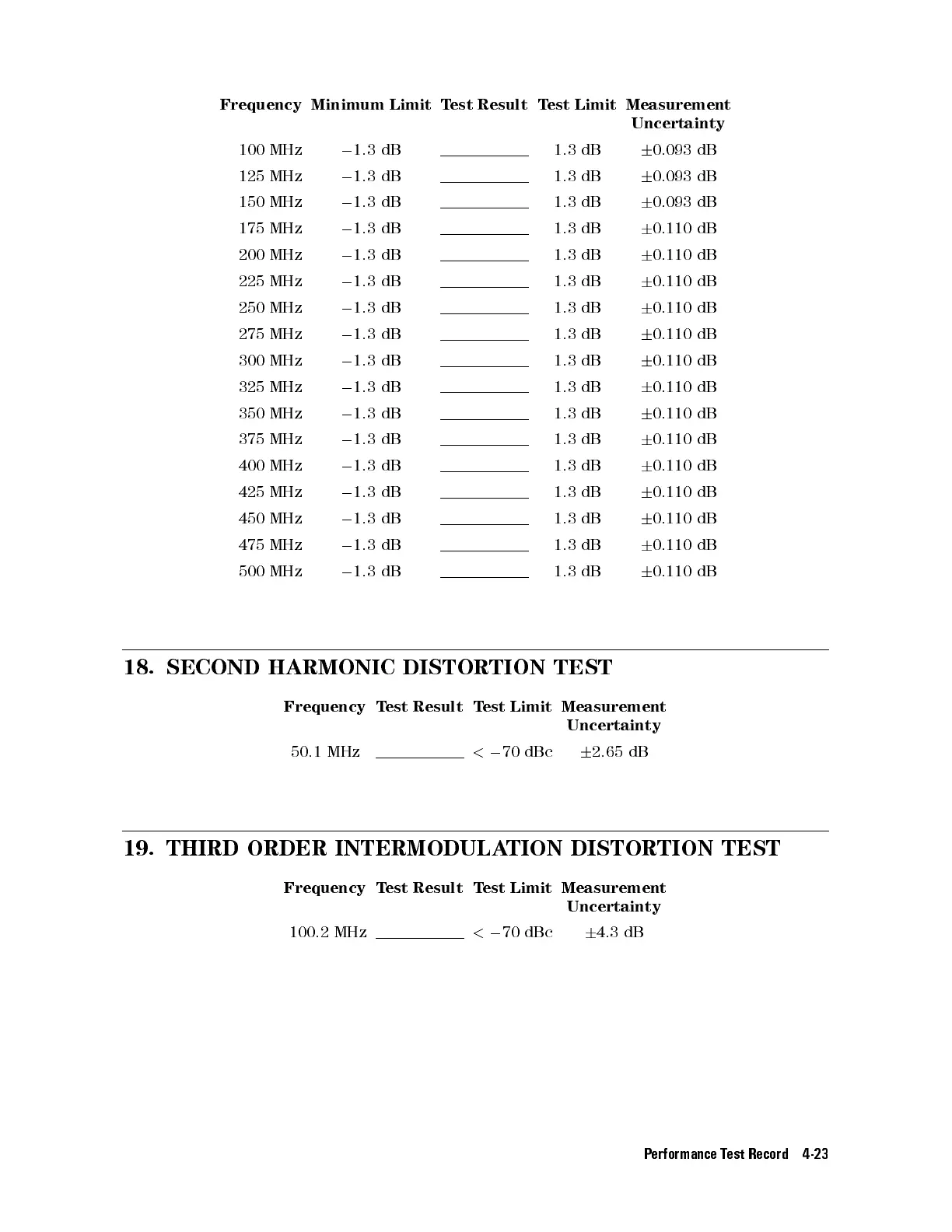

HP 4395A - Page 155

Frequency Minimum Limit Test Result Test Limit Measurement
Uncertainty
100 MHz 0 1.3 dB 1.3 dB 6 0.093 dB
125 MHz 0 1.3 dB 1.3 dB 6 0.093 dB
150 MHz 0 1.3 dB 1.3 dB 6 0.093 dB
175 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
200 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
225 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
250 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
275 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
300 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
325 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
350 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
375 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
400 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
425 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
450 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
475 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
500 MHz 0 1.3 dB 1.3 dB 6 0.110 dB
18. SECOND HARMONIC DISTORTION TEST
Frequency Test Result Test Limit Measurement
Uncertainty
50.1 MHz < 0 70 dBc 6 2.65 dB
19. THIRD ORDER INTERMODULATION DISTORTION TEST
Frequency Test Result Test Limit Measurement
Uncertainty
100.2 MHz < 0 70 dBc 6 4.3 dB
Performance Test Record 4-23
