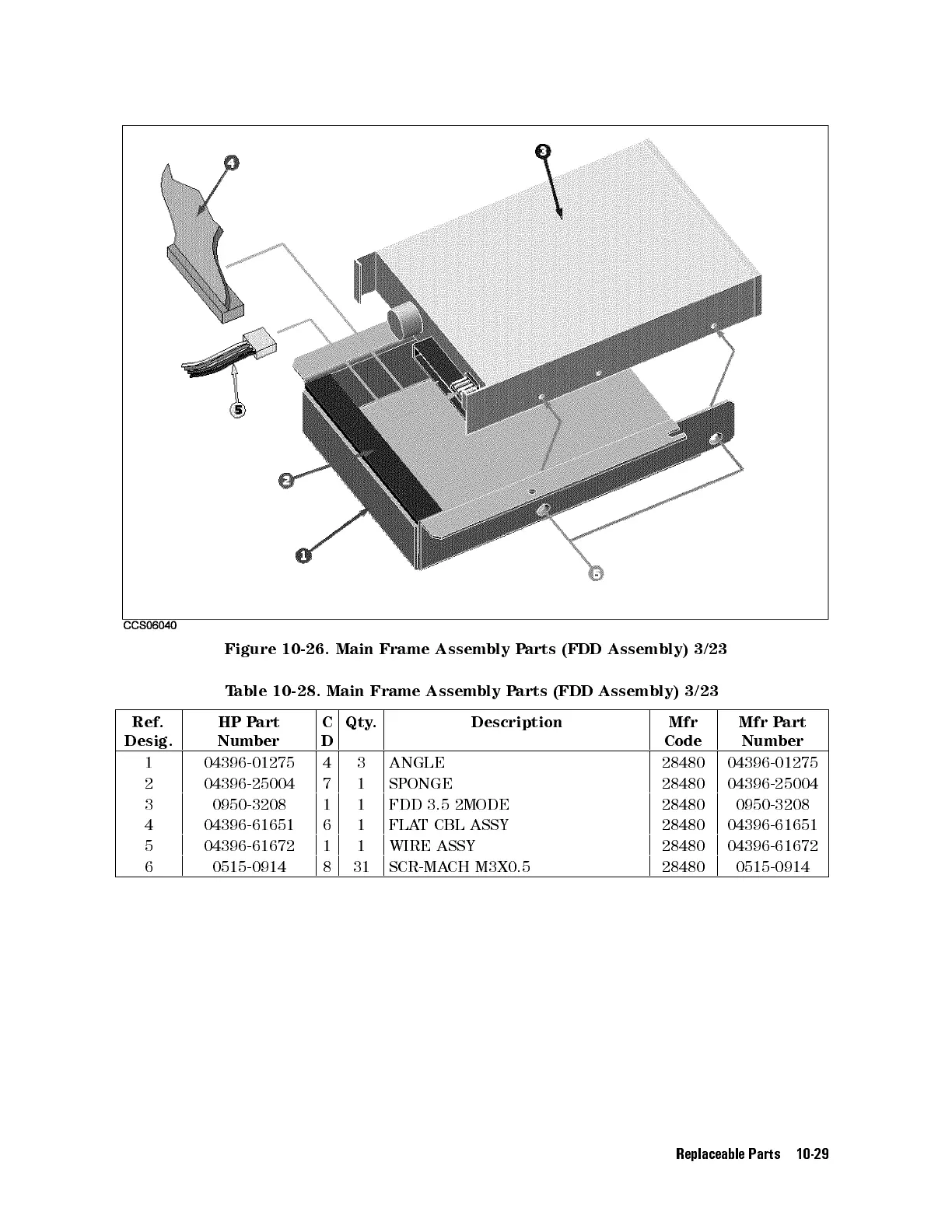

Figure 10-26. Main Frame Assembly Parts (FDD Assembly) 3/23
Table 10-28. Main Frame Assembly Parts (FDD Assembly) 3/23
Ref.
Desig.
HP Part
Number
C
D
Qty. Description Mfr
Code
Mfr Part
Number
1 04396-01275 4 3 ANGLE 28480 04396-01275
2 04396-25004 7 1 SPONGE 28480 04396-25004
3 0950-3208 1 1 FDD 3.5 2MODE 28480 0950-3208
4 04396-61651 6 1 FLAT CBL ASSY 28480 04396-61651
5 04396-61672 1 1 WIRE ASSY 28480 04396-61672
6 0515-0914 8 31 SCR-MACH M3X0.5 28480 0515-0914
