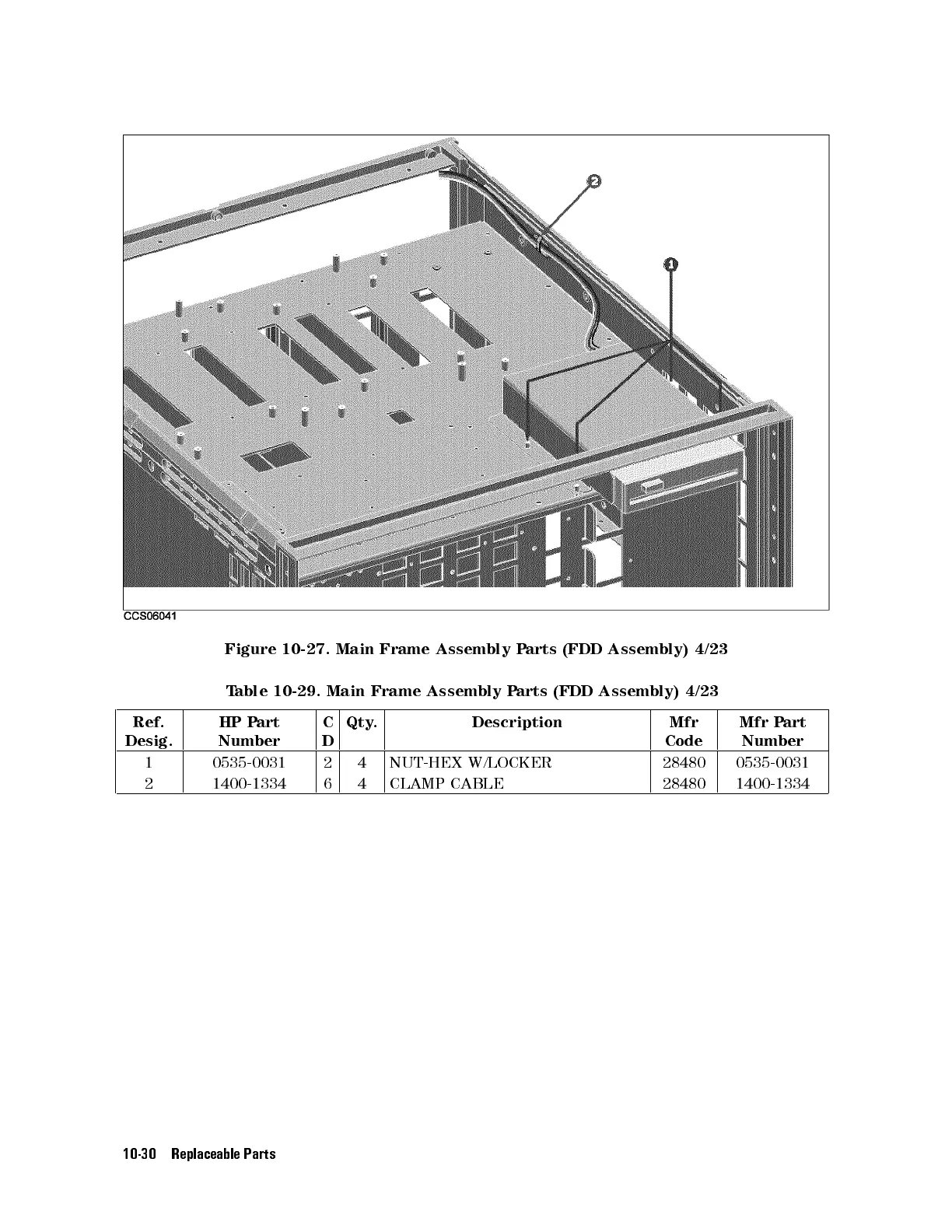

Figure 10-27. Main Frame Assembly Parts (FDD Assembly) 4/23
Table 10-29. Main Frame Assembly Parts (FDD Assembly) 4/23
Ref.
Desig.
HP Part
Number
C
D
Qty. Description Mfr
Code
Mfr Part
Number
1 0535-0031 2 4 NUT-HEX W/LOCKER 28480 0535-0031
2 1400-1334 6 4 CLAMP CABLE 28480 1400-1334
10-30 Replaceable Parts
