w. Repeat steps 1-h through 1-m to remove the power splitter tracking characteristic.
Record the HP 4395A marker reading and power meter reading in the in \HP 4395A
Reading 2" and \Power Meter Reading 2" columns of the calculation sheet.
x. Change the test equipment setup as shown in Figure 2-26.

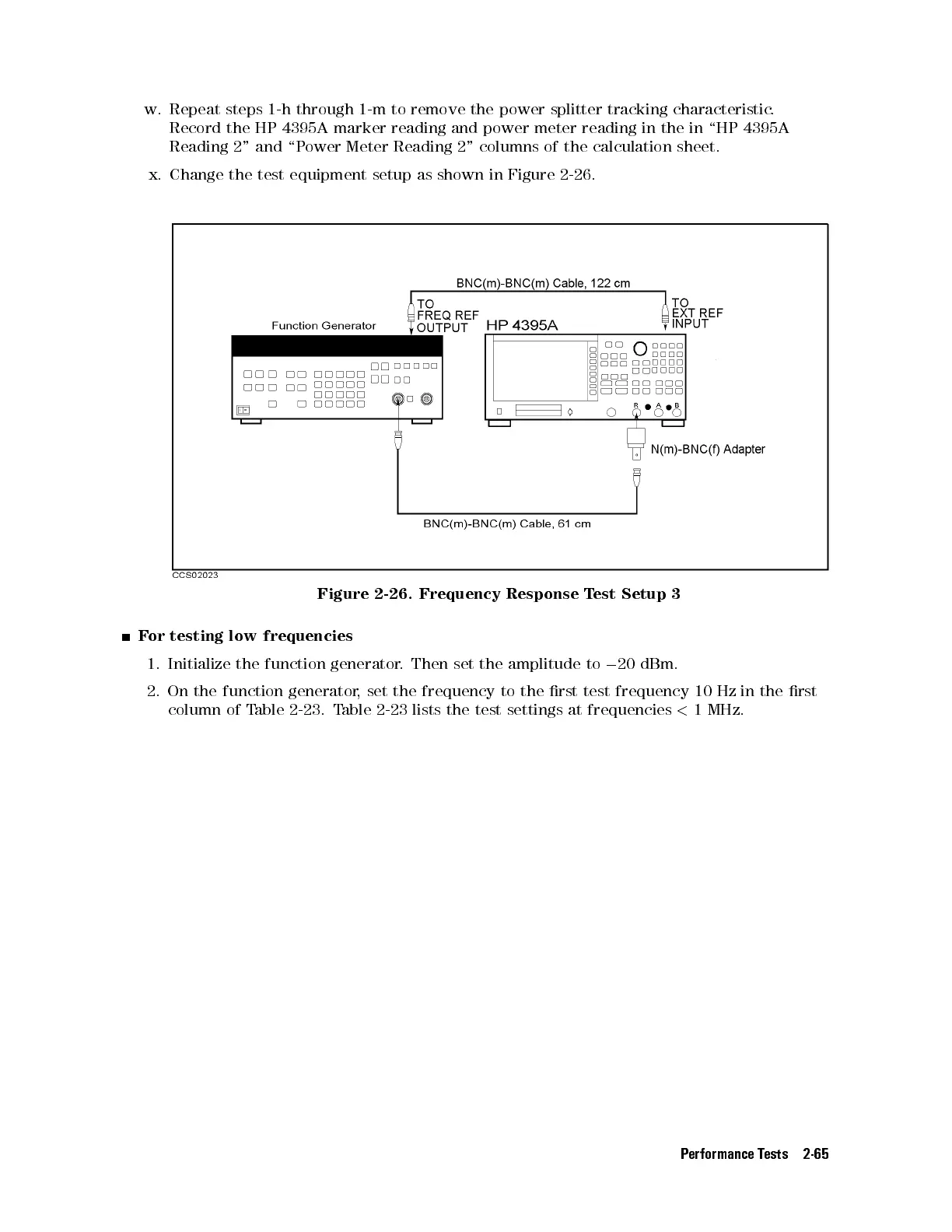

Figure 2-26. Frequency Response Test Setup 3
For testing low frequencies
1. Initialize the function generator. Then set the amplitude to
0
20 dBm.
2. On the function generator, set the frequency to the rst test frequency 10 Hz in the rst
column of Table 2-23. Table 2-23 lists the test settings at frequencies
<
1 MHz.
Performance Tests 2-65
