Resetting the HP 2D Imaging Barcode Scanner to Factory Defaults

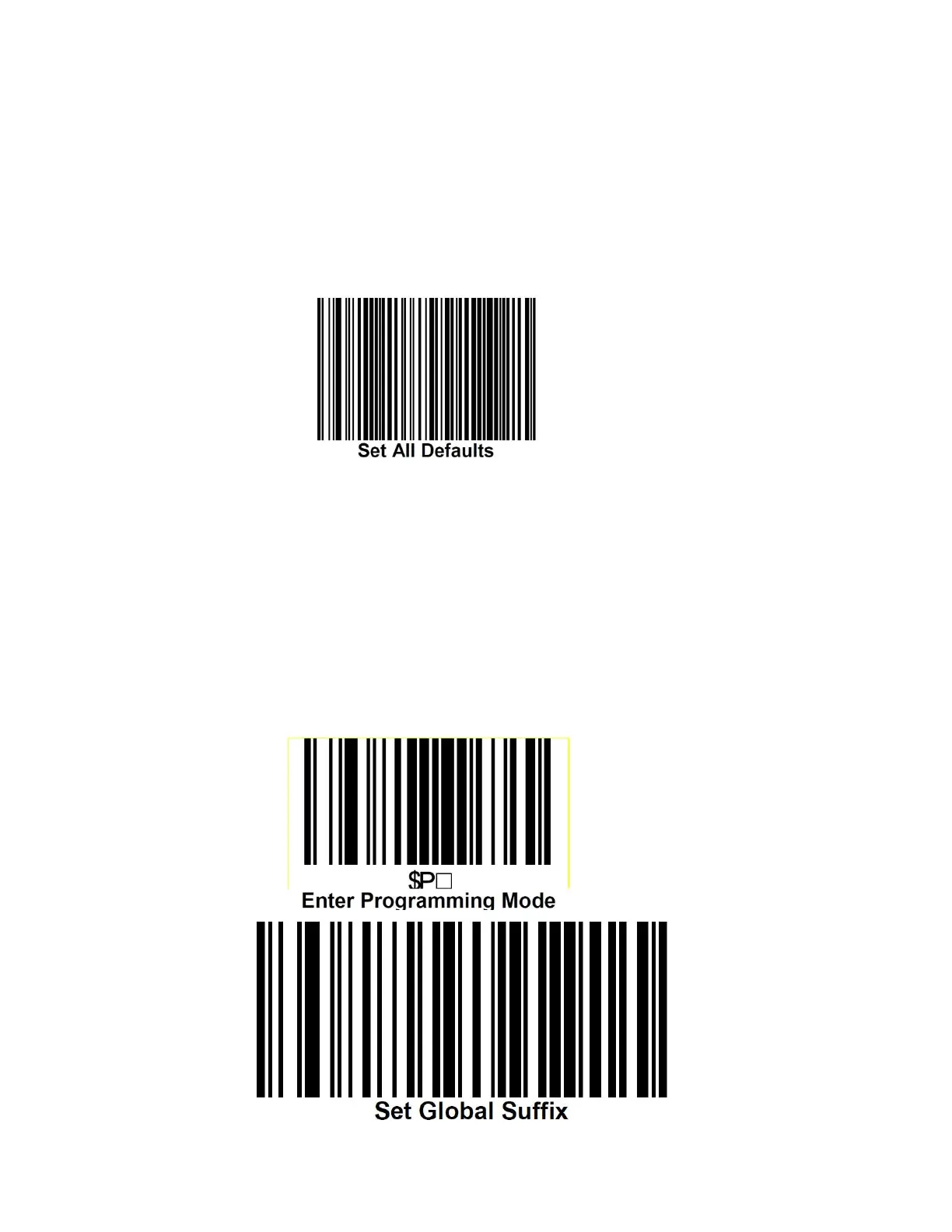

Scan this barcode to reset all scanner parameters to factory defaults:

Note: Scanning the “Set All Defaults” barcode

does not change the interface type

Simulating Carriage Return (Enter Key)

If a carriage return/enter is required after each scanned bar code, scan the following bar

codes in order:

Questions and Answers:

Need help?

Do you have a question about the HP 4430 and is the answer not in the manual?

HP 4430 Specifications

General

Scan Engine	Laser
Scan Pattern	Single line
Scan Rate	100 scan/s
Interface	USB
Supported Barcodes	Code 39, Code 128, Interleaved 2 of 5, Codabar, MSI, Code 93, GS1 Databar, PDF417, MicroPDF417, QR Code, Data Matrix, Aztec, MaxiCode
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20 to 60° C (-4 to 140° F)
Humidity	5% to 95% (non-condensing)
Drop Specification	1.5 m (5 ft) to concrete
Light Source	LED
