Printer Parts and Locations

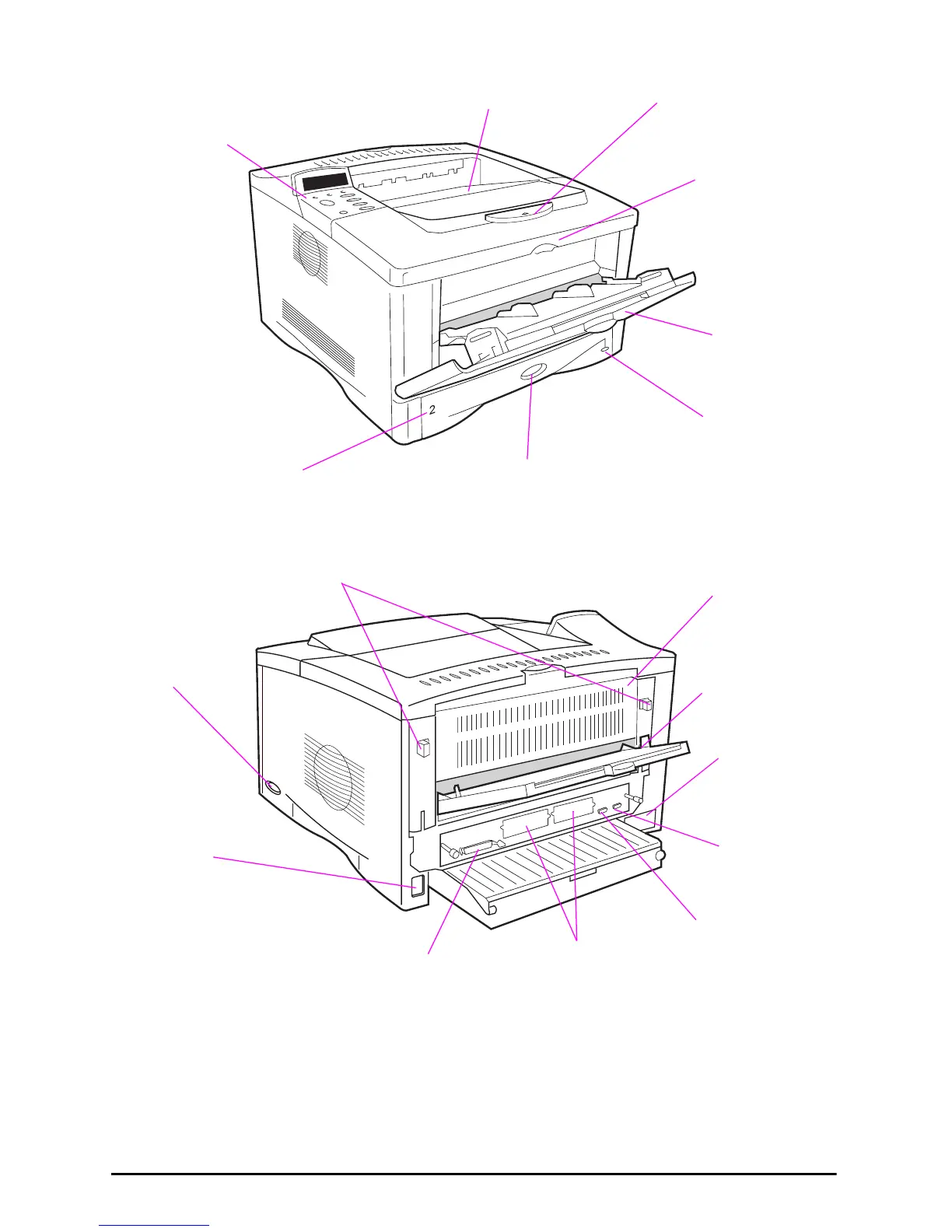

Figure 2 Printer Parts
(front and rear views)
Control
panel and
display
Paper stop
Top output bin
Tray 1
(100-sheet)
Tray 2
(250-sheet)
Paper level
indicator
Top cover
Paper size indicator
(set with dial inside tray)
Power
switch
Rear output bin
(straight-through
paper path)
Power
connector
Rear door
(paper jam access)
Latches
(to open rear door)
Network, I/O
or hard disk
Parallel interface
connector
Product
serial
number
Serial interface
connector
Accessory
connector
