HP 5335A - Page 12

installation
PIN LINE
DIOI
DI02
DI03
DI04
DI05
DI06
DI07
Di08
EO!
REN
DAV
NRFD
NDAC
IFC
SRQ
ATN
SHIELD-CHASSIS GROUND
P/O TWISTED PAIR WITH PIN 6
P/O TWISTED PAIR WITH PIN 7
P/O TWISTED PAIR WITH PIN 8
P/O TWISTED PAIR WITH PIN 9
P/O TWISTED PAIR WITH PIN 10
P/O TWISTED PAIR WITH PIN 11
ISOLATED DIGITAL GROUND
CAUTION
The 5335A contains metric threaded HP-IB cable mounting studs
as opposed to English threads. Metric threaded HP 10631A, B, C,
or D HP-IB cable lockscrews must be used to secure the cable to the
Instrument. Identification of the two types of mounting studs and
lockscrews is made by their color. English threaded fasteners are
colored silver and metric threaded fasteners are colored black.
DO NOT mate silver and black fasteners to each other or the
threads of either or both will be destroyed. Metric threaded HP-IB
cable hardware illustrations and part numbers follows.
LOCKSCREW
1390-0360
THESE PINS
ARE
INTERNALLY
GROUNDED
LONG MOUNTING
STUD
0380-0643
SHORT MOUNTING
STUD
0380-0644
Logic Levels
The Hewlett-Packard Interface Bus logic levels are TTL compatible, i.e., the true (1) state is
0.0V dc to 0.4V dc and the false (0) state is +2.5V dc to +5.0V dc.
Programming and Output Data Format
Refer to Section III, Operation
Mating Connector
HP 1251-0293; Amphenol 57-30240.
Mating Cables Available
HP 10631 A, 1 metre (3.3 ft.), HP 10631B, 2 metres {6.6 ft),
HP 10631C, 4 metres (13.2 ft.}, HP 10631D, 1/2 metre {1.6 ft.).
Cabling Restrictions
1. A Hewlett-Packard Interface Bus System may contain no more than 2 metres (6.6 ft.) of
connecting cable per instrument.
2. The maximum accumulative length of connecting cable for any Hewlett-Packard Inter¬
face Bus System is 20.0 metres (65.6 ft.).

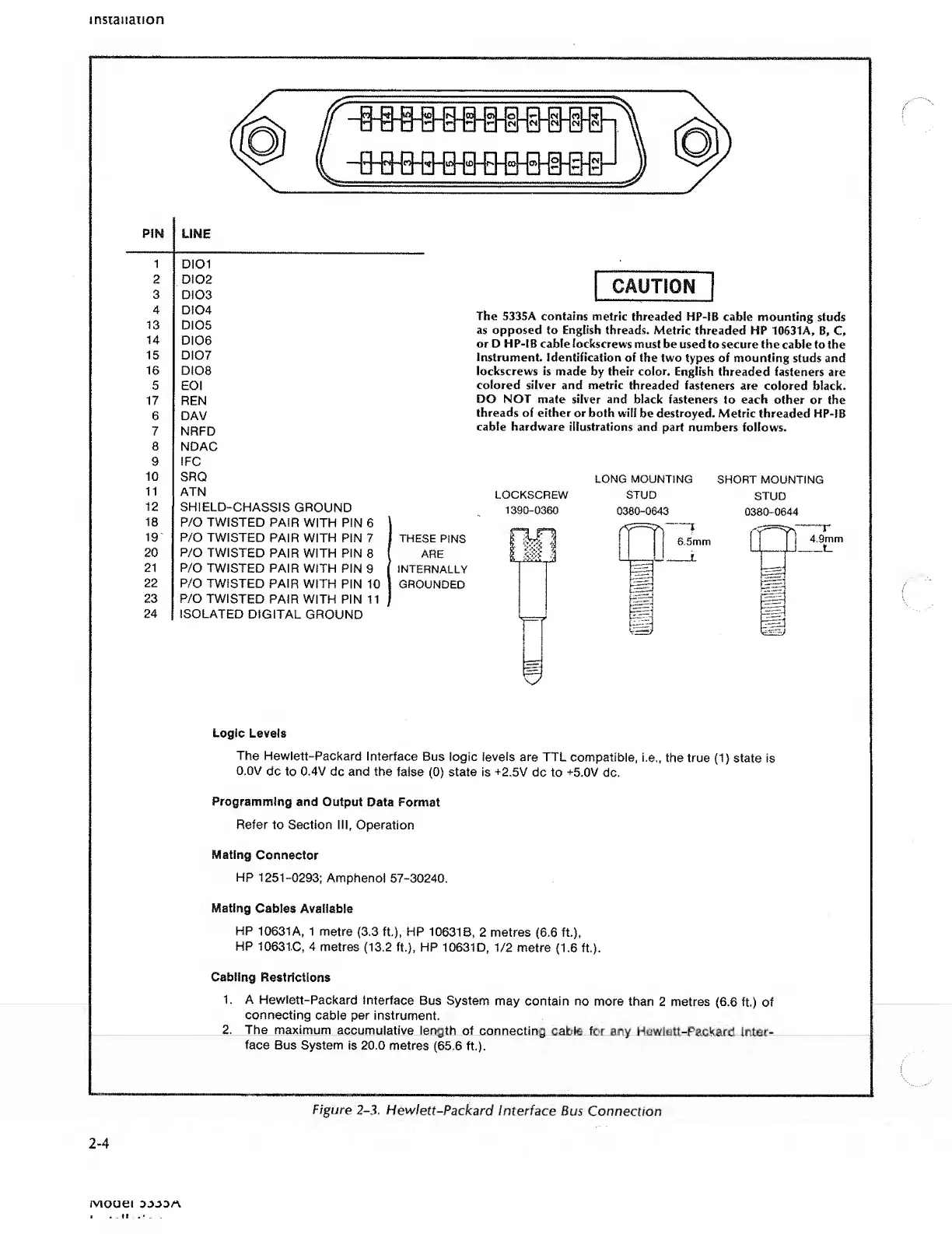

Figure 2-3. Hewlett-Packard Interface Bus Connection
