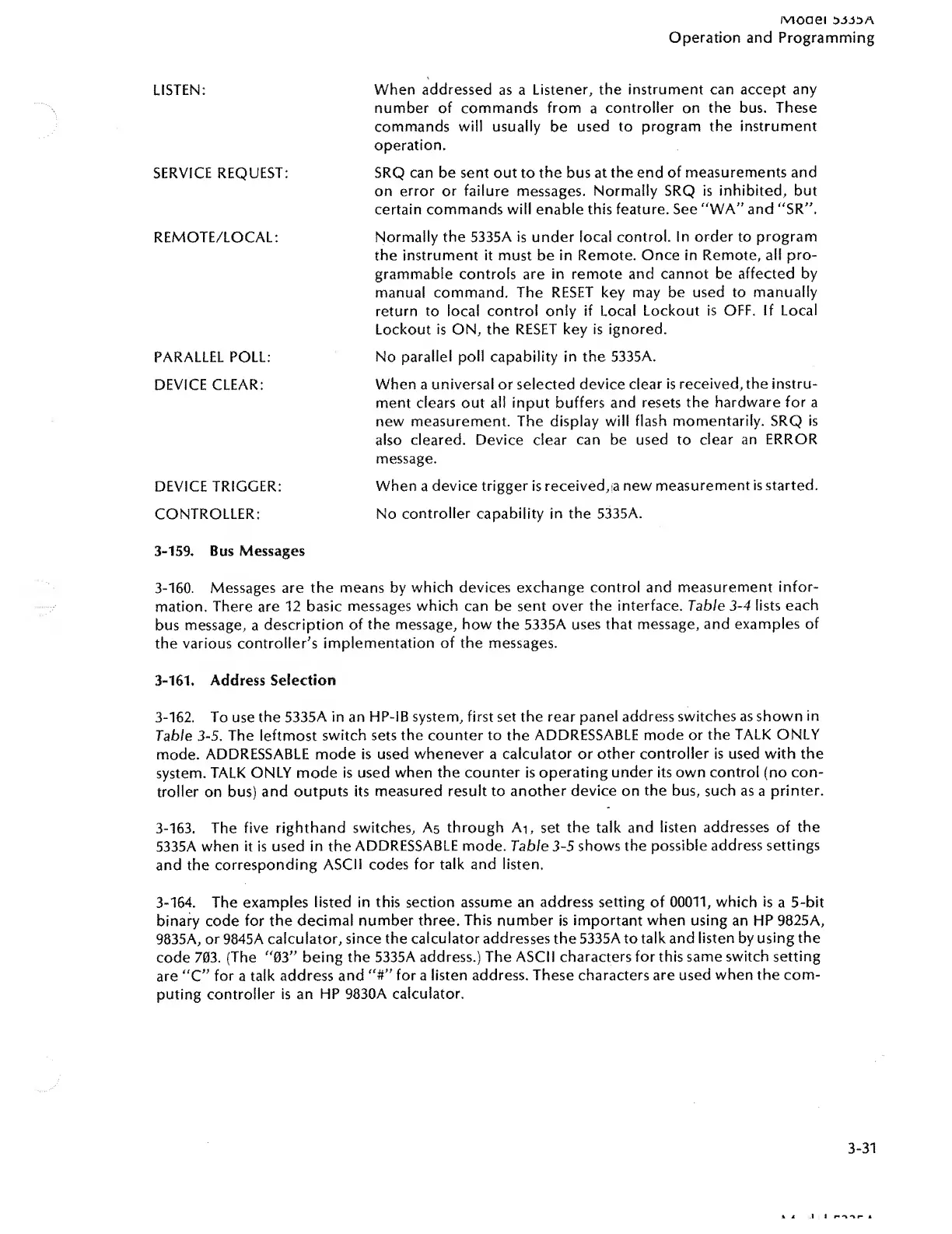

Operation
and
Programming
LISTEN:
SERVICE
REQUEST:
REMOTE/LOCAL:
PARALLEL
POLL:
DEVICE
CLEAR:
DEVICE
TRIGGER:
CONTROLLER:
3-159.
Bus
Messages
When
addressed
as
a
Listener,
the
instrument
can
accept
any
number
of
commands
from
a
controller
on
the
bus.
These
commands
will
usually
be
used
to
program
the
instrument
operation.
SRQ
can
be
sent
out
to
the
bus
at
the
end
of
measurements
and
on
error
or
failure
messages.
Normally
SRQ
is
inhibited,
but
certain
commands
will
enable
this
feature.
See
"WA”
and
"SR”.
Normally
the
5335A
is
under
local
control.
In
order
to
program
the
instrument
it
must
be
in
Remote.
Once
in
Remote,
all
pro¬
grammable
controls
are
in
remote
and
cannot
be
affected
by
manual
command.
The
RESET
key
may
be
used
to
manually
return
to
local
control
only
if
Local
Lockout
is
OFF.
If
Local
Lockout
is
ON,
the
RESET
key
is
ignored.
No
parallel
poll
capability
in
the
5335A.
When
a
universal
or
selected
device
clear
is
received,
the
instru¬
ment
clears
out
ail
input
buffers
and
resets
the
hardware
for
a
new
measurement.
The
display
will
flash
momentarily.
SRQ
is
also
cleared.
Device
clear
can
be
used
to
clear
an
ERROR
message.
When
a
device
trigger
is
received,ia
new
measurement
is
started.
No
controller
capability
in
the
5335A.
3-160.
Messages
are
the
means
by
which
devices
exchange
control
and
measurement
infor¬
mation.
There
are
12
basic
messages
which
can
be
sent
over
the
interface.
Table
3-4
lists
each
bus
message,
a
description
of
the
message,
how
the
5335A
uses
that
message,
and
examples
of
the
various
controller’s
implementation
of
the
messages.
3-161.
Address
Selection
3-162.
To
use
the
5335A
in
an
HP-IB
system,
first
set
the
rear
panel
address
switches
as
shown
in
Table
3~5.
The
leftmost
switch
sets
the
counter
to
the
ADDRESSABLE
mode
or
the
TALK
ONLY
mode.
ADDRESSABLE
mode
is
used
whenever
a
calculator
or
other
controller
is
used
with
the
system.
TALK
ONLY
mode
is
used
when
the
counter
is
operating
under
its
own
control
(no
con¬
troller
on
bus)
and
outputs
its
measured
result
to
another
device
on
the
bus,
such
as
a
printer.
3-163.
The
five
righthand
switches,
As
through
Ai,
set
the
talk
and
listen
addresses
of
the
5335A
when
it
is
used
in
the
ADDRESSABLE
mode.
Table
3-5
shows
the
possible
address
settings
and
the
corresponding
ASCII
codes
for
talk
and
listen.
3-164.
The
examples
listed
in
this
section
assume
an
address
setting
of
00011,
which
is
a
5-bit
binary
code
for
the
decimal
number
three.
This
number
is
important
when
using
an
HP
9825A,
9835A,
or
9845A
calculator,
since
the
calculator
addresses
the
5335A
to
talk
and
listen
by
using
the
code
703.
(The
"03”
being
the
5335A
address.)
The
ASCII
characters
for
this
same
switch
setting
are
“C”
for
a
talk
address
and
"#”
for
a
listen
address.
These
characters
are
used
when
the
com¬
puting
controller
is
an
HP
9830A
calculator.
