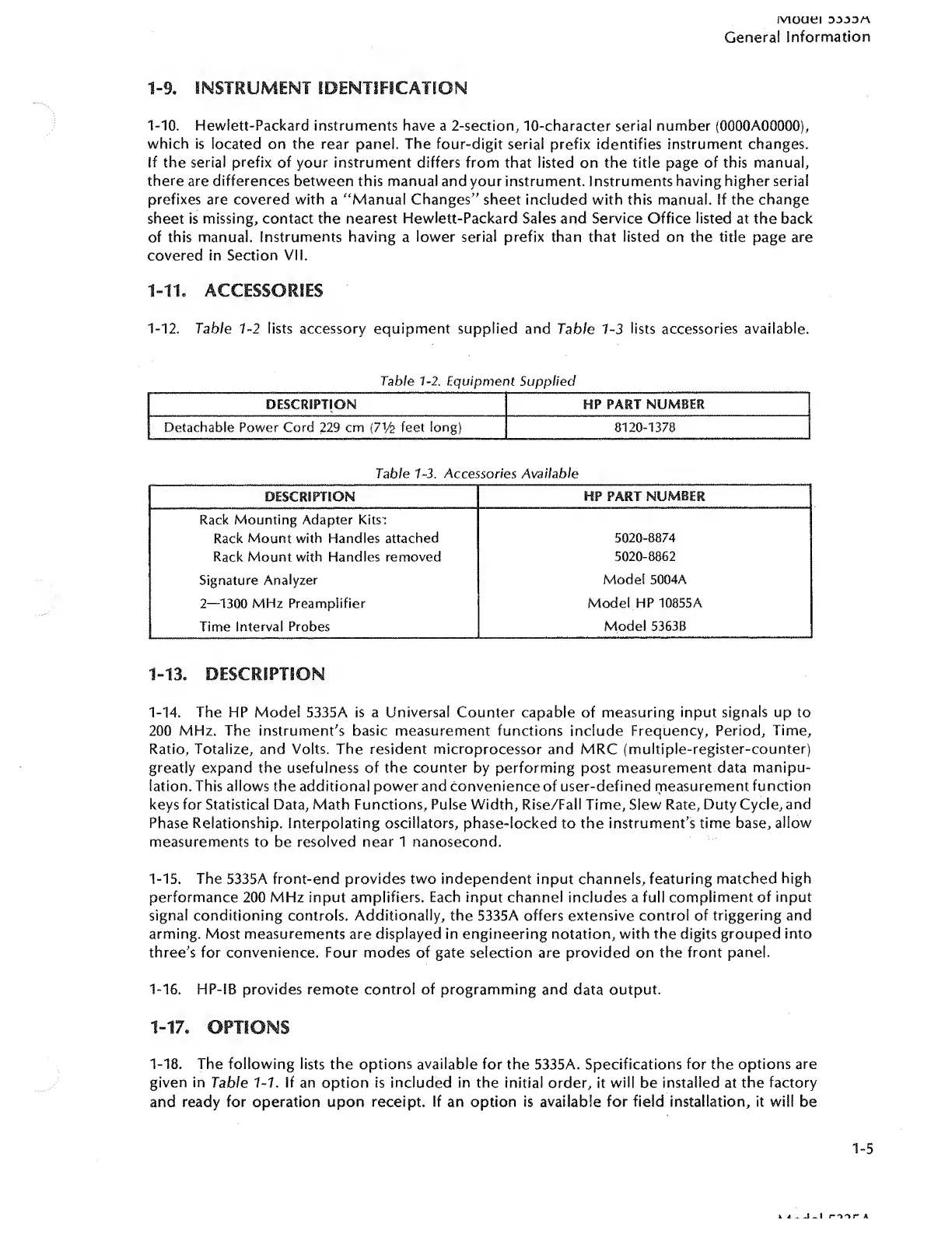

General Information
1-9. INSTRUMENT IDENTIFICATION
1-10. Hewlett-Packard instruments have a 2-section, 10-character serial number (OOOOAOOOOO),
which is located on the rear panel. The four-digit serial prefix identifies instrument changes.
If the serial prefix of your instrument differs from that listed on the title page of this manual,
there are differences between this manual and your instrument. Instruments having higher serial
prefixes are covered with a "Manual Changes" sheet included with this manual. If the change
sheet is missing, contact the nearest Hewlett-Packard Sales and Service Office listed at the back
of this manual. Instruments having a lower serial prefix than that listed on the title page are
covered in Section VII.
1-11. ACCESSORIES
1-12. Table 1-2 lists accessory equipment supplied and Table 1-3 lists accessories available.
Table 1-2, Equipment Supplied
DESCRIPTION HP PART NUMBER
Detachable Power Cord 229 cm (7V2 feet long) 8120-1378
Table 1-3. Accessories Available
DESCRIPTION
HP PART NUMBER
Rack Mounting Adapter Kits - :
Rack Mount with Handles attached
5020-8874
Rack Mount with Handles removed
5020-8862
Signature Analyzer
Model 5004A
2—1300 MHz Preamplifier
Model HP 10855A
Time Interval Probes
Mode! 5363B
1-13. DESCRIPTION
1-14. The HP Model 5335A is a Universal Counter capable of measuring input signals up to
200 MHz. The instrument's basic measurement functions include Frequency, Period, Time,
Ratio, Totalize, and Volts. The resident microprocessor and MRC (multiple-register-counter)
greatly expand the usefulness of the counter by performing post measurement data manipu¬
lation. This allows the additional power and convenience of user-defined measurement function
keys for Statistical Data, Math Functions, Pulse Width, Rise/Fall Time, Slew Rate, Duty Cycle, and
Phase Relationship, interpolating oscillators, phase-locked to the instrument’s time base, allow
measurements to be resolved near 1 nanosecond.
1-15. The 5335A front-end provides two independent input channels, featuring matched high
performance 200 MHz input amplifiers. Each input channel includes a full compliment of input
signal conditioning controls. Additionally, the 5335A offers extensive control of triggering and
arming. Most measurements are displayed in engineering notation, with the digits grouped into
three’s for convenience. Four modes of gate selection are provided on the front panel.
1-16. HP-IB provides remote control of programming and data output.
1-17. OPTIONS
1-18. The following lists the options available for the 5335A. Specifications for the options are
given in Table 1-1. If an option is included in the initial order, it will be installed at the factory
and ready for operation upon receipt. If an option is available for field installation, it will be
1-5
