oenerai information
supplied as a retrofit kit. For field installation of Options 010, 020, and 030, refer to Section II
for kit part numbers and instructions.
Option
Description
010
High Stability Time Base (Oven Oscillator)
020
DC Voltmeter Module
030
C Channel input Module

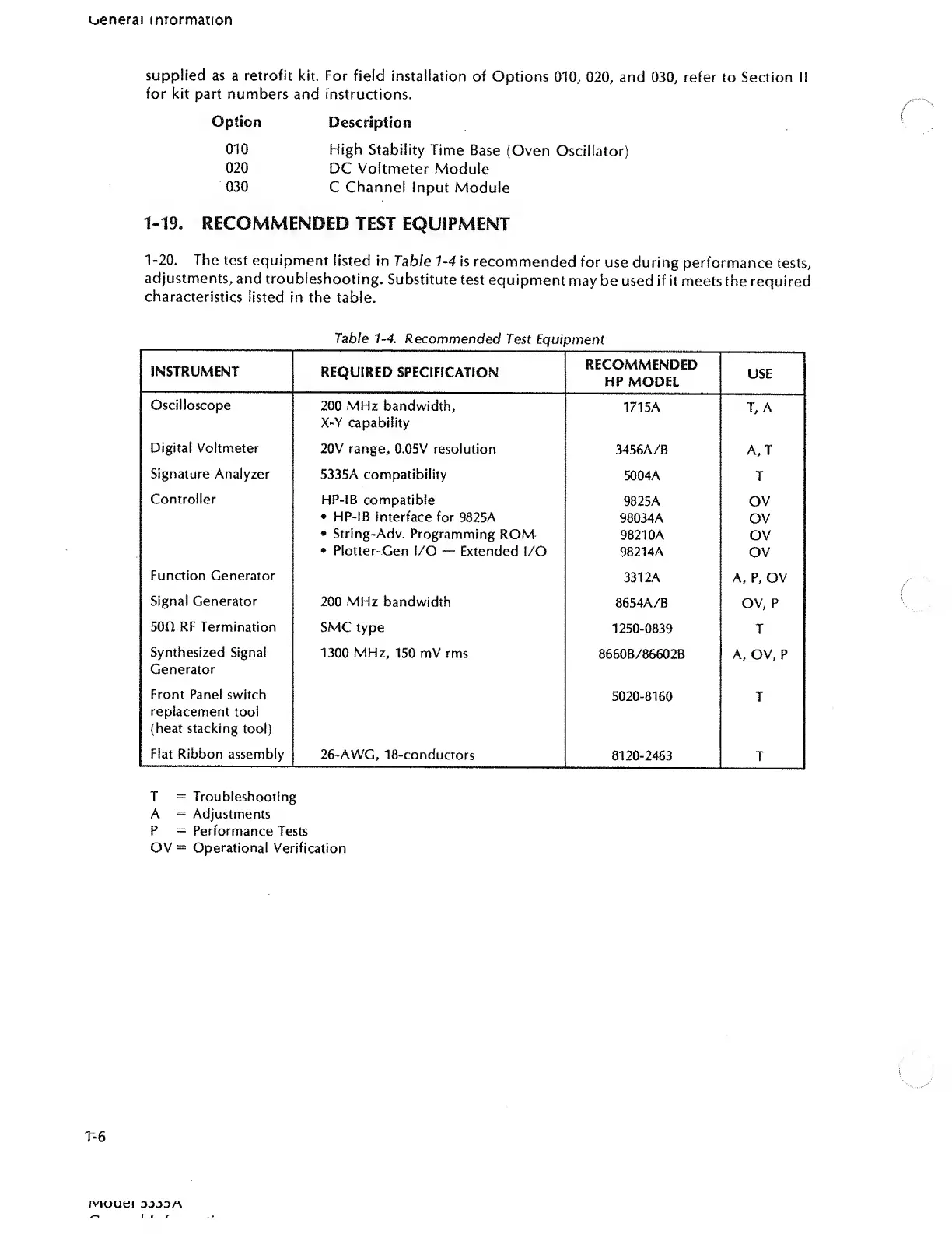

1-19. RECOMMENDED TEST EQUIPMENT
1-20. The test equipment listed in Table 1-4 is recommended for use during performance tests,
adjustments, and troubleshooting. Substitute test equipment may be used if it meets the required
characteristics listed in the table.
Table 1-4. Recommended Test Equipment
INSTRUMENT
REQUIRED SPECIFICATION
RECOMMENDED
HP MODEL
USE
Oscilloscope
200 MHz bandwidth,
X-Y capability
1715A
T, A
Digital Voltmeter
20V range, 0.05V resolution
3456A/B
A, T
Signature Analyzer
5335A compatibility
5004A
T
Controller
HP-iB compatible
9825A
OV
• HP-IB interface for 9825A
98034A
OV
• String-Adv. Programming ROM
98210A
OV
* Plotter-Gen I/O — Extended I/O
98214A
OV
Function Generator
3312 A A, P, OV
Signal Generator
200 MHz bandwidth
8654A/B
OV, P
50ft RF Termination
SMC type
1250-0839 T
Synthesized Signal
Generator
1300 MHz, 150 mV rms
8660B/86602B
A, OV, P
Front Panel switch
replacement tool
(heat stacking tool)
5020-8160
T
Flat Ribbon assembly
26-AWG, 18-conductors
8120-2463
T
T = Troubleshooting
A = Adjustments
P = Performance Tests
OV = Operational Verification
