Model 5355A
General Information

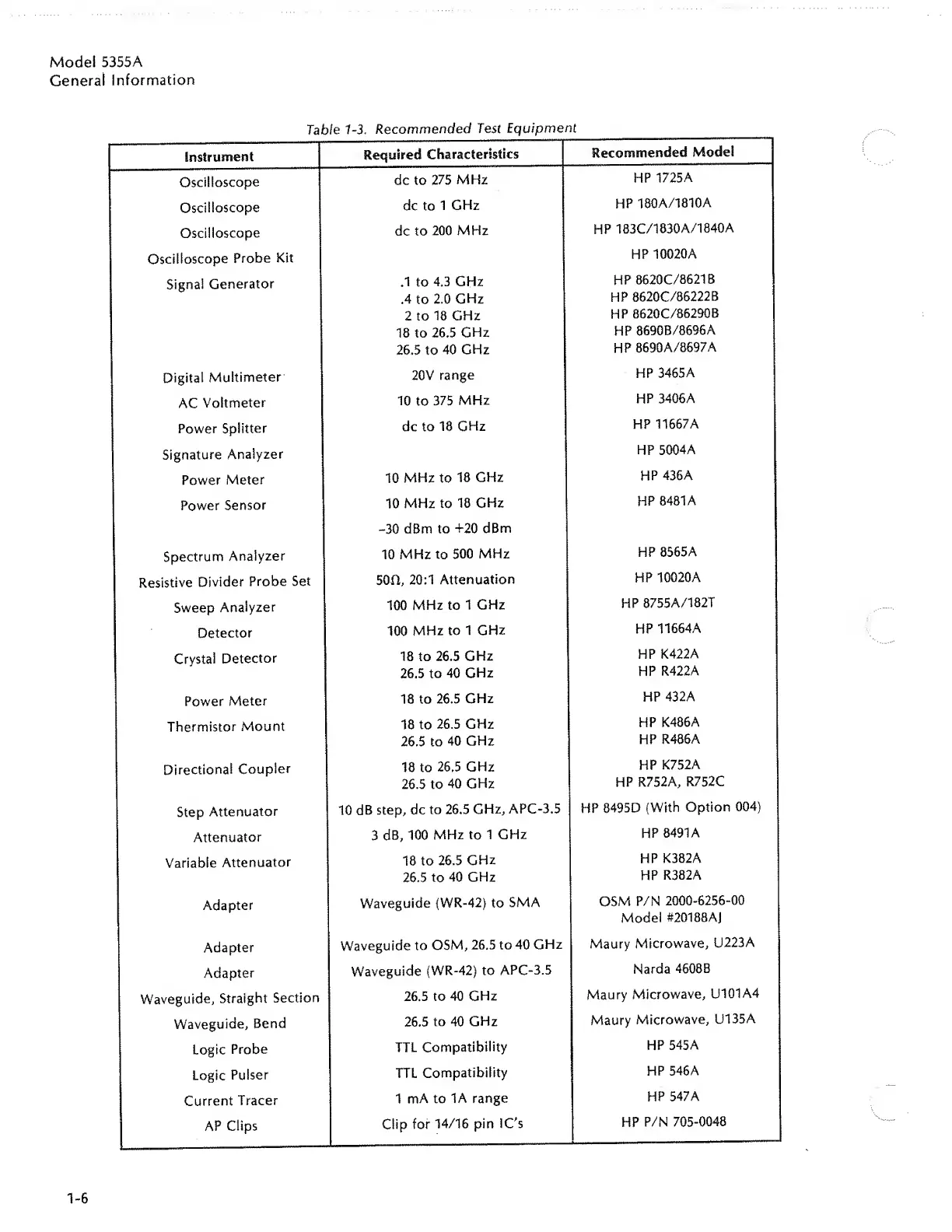

Table 1-3. Recommended Test Equipment
Instrument
Required Characteristics
Recommended Model
Oscilloscope
dc to 275 MHz
HP 1725A
Oscilloscope
dc to 1 GHz
HP 180A/1810A
Oscilloscope
dc to 200 MHz
HP 183C/1830A/1840A
Oscilloscope Probe Kit
HP 10020A
Signal Generator
.1 to 4.3 GHz
.4 to 2.0 GHz
2 to 18 GHz
18 to 26.5 GHz
26.5 to 40 GHz
HP 8620C/8621B
HP 8620C/86222B
HP 8620C/86290B
HP 8690B/8696A
HP 8690A/8697A
Digital Multimeter
20V range
HP 3465A
AC Voltmeter
10 to 375 MHz
HP 3406A
Power Splitter
dc to 18 GHz
HP 11667A
Signature Analyzer
HP 5004A
Power Meter
10 MHz to 18 GHz
HP 436A
Power Sensor
10 MHz to 18 GHz
HP 8481A
-30 dBm to +20 dBm
Spectrum Analyzer
10 MHz to 500 MHz
HP 8565A
Resistive Divider Probe Set
50Q, 20:1 Attenuation
HP 10020A
Sweep Analyzer
100 MHz to 1 GHz
HP 8755A/182T
Detector
100 MHz to 1 GHz
HP 11664A
Crystal Detector
18 to 26.5 GHz
26.5 to 40 GHz
HP K422A
HP R422A
Power Meter
18 to 26.5 GHz
HP 432A
Thermistor Mount
18 to 26.5 GHz
26.5 to 40 GHz
HP K486A
HP R486A
Directional Coupler
18 to 26.5 GHz
26.5 to 40 GHz
HP K752A
HP R752A, R752C
Step Attenuator
10 dB step, dc to 26.5 GHz, APC-3.5
HP 8495D (With Option 004)
Attenuator
3 dB, 100 MHz to 1 GHz
HP 8491A
Variable Attenuator
18 to 26.5 GHz
26.5 to 40 GHz
HP K382A
HP R382A
Adapter
Waveguide (WR-42) to SMA
OSM P/N 2000-6256-00
Model #20188Aj
Adapter
Waveguide to OSM, 26.5 to 40 GHz
Maury Microwave, U223A
Adapter
Waveguide (WR-42) to APC-3.5
Narda 4608B
Waveguide, Straight Section
26.5 to 40 GHz
Maury Microwave, U101A4
Waveguide, Bend
26.5 to 40 GHz
Maury Microwave, U135A
Logic Probe
TTL Compatibility
HP 545A
Logic Pulser
TTL Compatibility
HP 546A
Current Tracer
1 mA to 1A range
HP 547A
AP Clips
Clip for 14/16 pin IC's
HP P/N 705-0048
