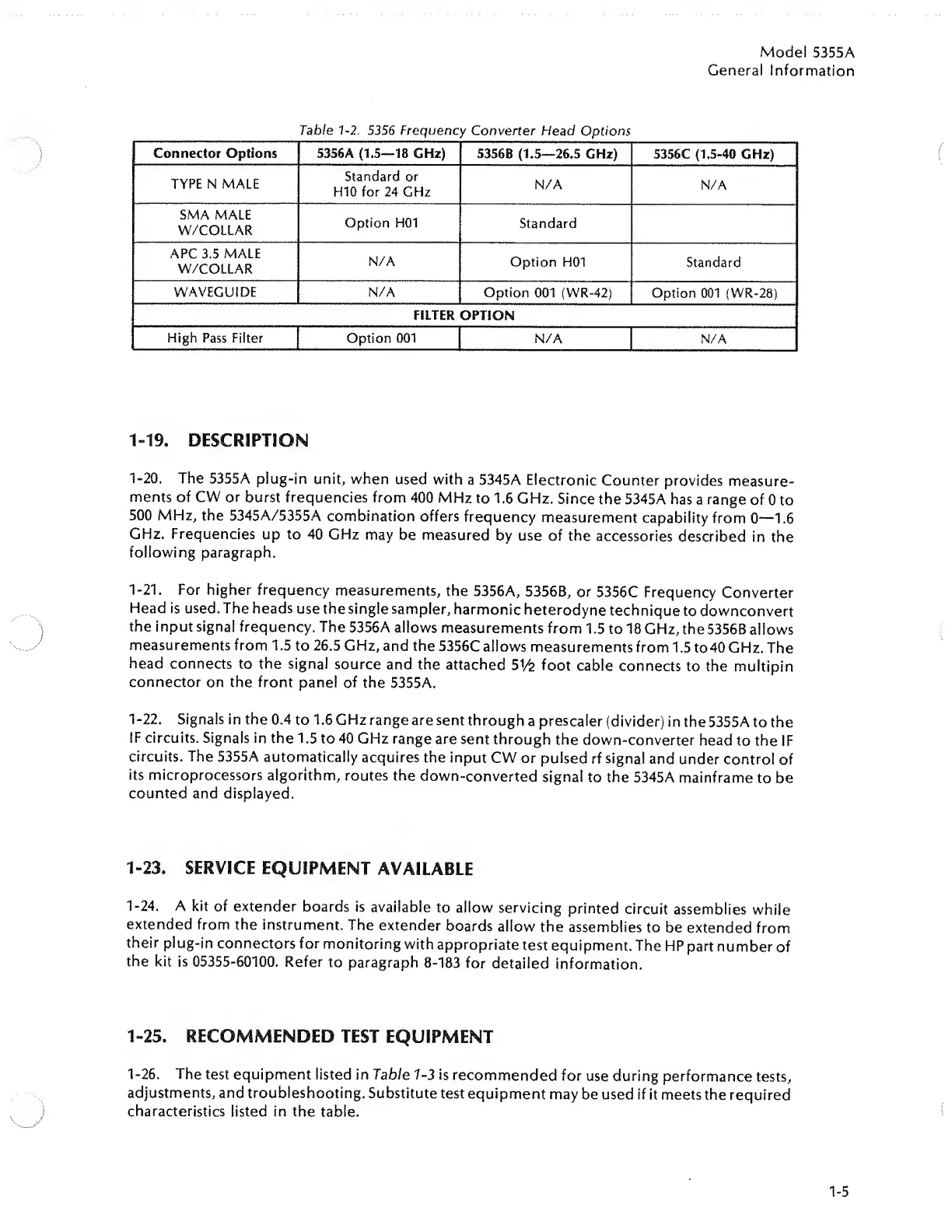

Model
5355A
General
Information
Table
1-2.
5356
Frequency
Converter
Head
Options
Connector
Options
5356A
(1.5—18
GHz)
53568
(1.5—26.5
GHz)
5356C
(1.5-40
GHz)
TYPE
N
MALE
Standard
or
H10
for
24
GHz
N/A
N/A
SMA
MALE
W/COLLAR
Option
H01
Standard
APC
3,5
MALE
W/COLLAR
N/A
Option
H01
Standard
WAVEGUIDE
N/A
Option
001
(WR-42)
Option
001
(WR-28)
FILTER
OPTION
High
Pass
Filter
Option
001
N/A
N/A
1-19.
DESCRIPTION
1-20.
The
5355A
plug-in
unit,
when
used
with
a
5345A
Electronic
Counter
provides
measure¬
ments
of
CW
or
burst
frequencies
from
400
MHz
to
1.6
GHz.
Since
the5345A
has
a
range
of
Oto
500
MHz,
the
5345A/5355A
combination
offers
frequency
measurement
capability
from
0—1.6
GHz.
Frequencies
up
to
40
GHz
may
be
measured
by
use
of
the
accessories
described
in
the
following
paragraph.
1-21.
For
higher
frequency
measurements,
the
5356A,
5356B,
or
5356C
Frequency
Converter
Head
is
used.
The
heads
use
the
single
sampler,
harmonic
heterodyne
technique
to
downconvert
the
input
signal
frequency.
The
5356A
allows
measurements
from
1.5
to
18
GHz,
the
5356B
allows
measurements
from
1.5
to
26.5
GHz,
and
the
5356C
allows
measurements
from
1.5
to40
GHz.
The
head
connects
to
the
signal
source
and
the
attached
5V2
foot
cable
connects
to
the
multipin
connector
on
the
front
panel
of
the
5355A.
1-22.
Signals
in
the
0.4
to
1.6
GHz
range
are
sent
through
a
prescaler
(divider)
in
the
5355A
to
the
IF
circuits.
Signals
in
the
1.5
to
40
GHz
range
are
sent
through
the
down-converter
head
to
the
IF
circuits.
The
5355A
automatically
acquires
the
input
CW
or
pulsed
rf
signal
and
under
control
of
its
microprocessors
algorithm,
routes
the
down-converted
signal
to
the
5345A
mainframe
to
be
counted
and
displayed.
1-23.
SERVICE
EQUIPMENT
AVAILABLE
1-24.
A
kit
of
extender
boards
is
available
to
allow
servicing
printed
circuit
assemblies
while
extended
from
the
instrument.
The
extender
boards
allow
the
assemblies
to
be
extended
from
their
plug-in
connectors
for
monitoring
with
appropriate
test
equipment.
The
HP
part
number
of
the
kit
is
05355-60100.
Refer
to
paragraph
8-183
for
detailed
information.
1-25.
RECOMMENDED
TEST
EQUIPMENT
1-26.
The
test
equipment
listed
in
Table
1-3
is
recommended
for
use
during
performance
tests,
adjustments,
and
troubleshooting.
Substitute
test
equipment
may
be
used
if
it
meets
the
required
characteristics
listed
in
the
table.
