Model

5355A

Installation

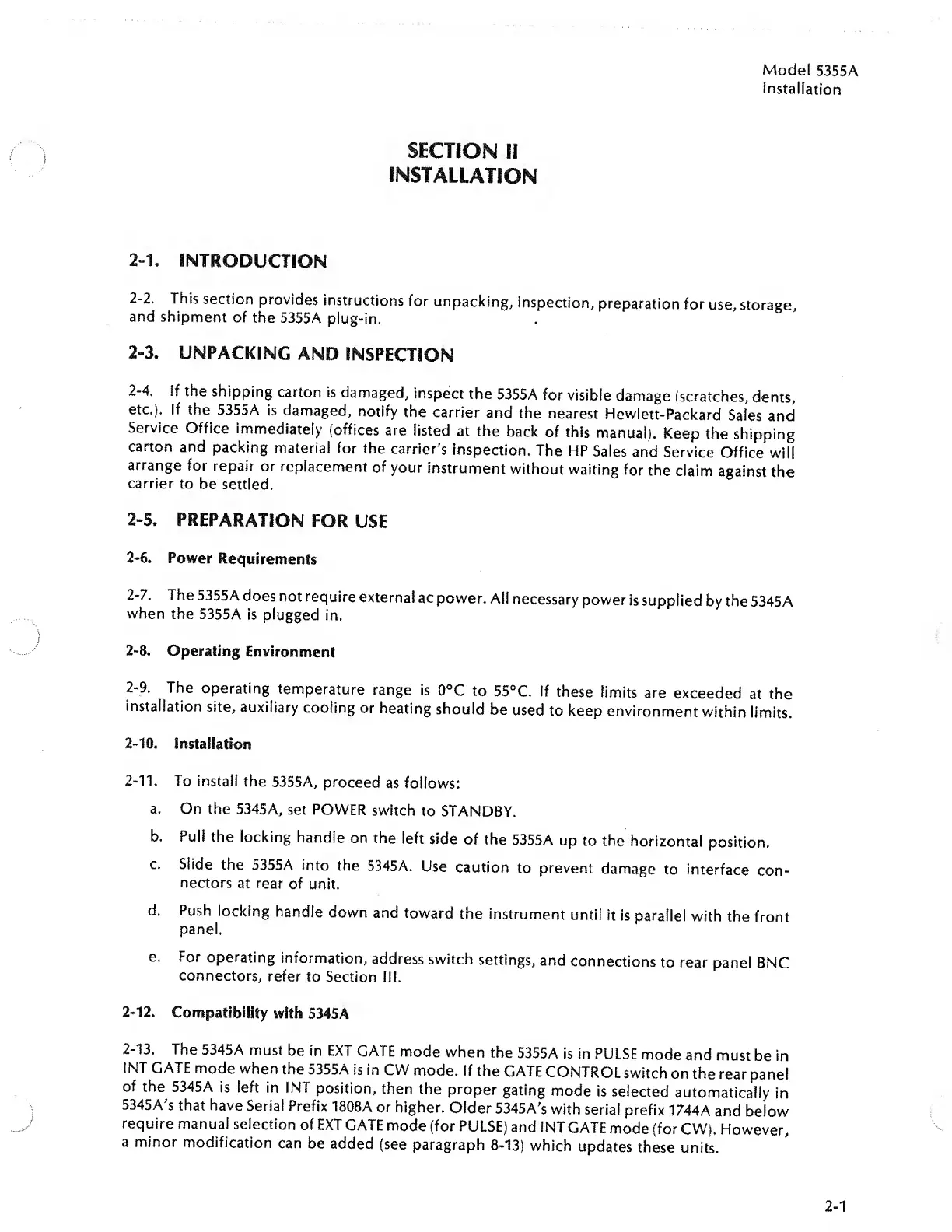

SECTION

II

INSTALLATION

2-1.

INTRODUCTION

2-2.

This

section

provides

instructions

for

unpacking,

inspection,

preparation

for

use,

storage,

and

shipment

of

the

5355A

plug-in.

.

2-3.

UNPACKING

AND

INSPECTION

2-4.

if

the

shipping

carton

is

damaged,

inspect

the

5355A

for

visible

damage

(scratches,

dents,

etc.).

If

the

5355A

is

damaged,

notify

the

carrier

and

the

nearest

Hewlett-Packard

Sales

and

Service

Office

immediately

(offices

are

listed

at

the

back

of

this

manual).

Keep

the

shipping

carton

and

packing

material

for

the

carrier's

inspection.

The

HP

Sales

and

Service

Office

will

arrange

for

repair

or

replacement

of

your

instrument

without

waiting

for

the

claim

against

the

carrier

to

be

settled.

2-5.

PREPARATION

FOR

USE

2-6.

Power

Requirements

2-7.

The

5355A

does

not

require

external

ac

power.

All

necessary

power

is

supplied

by

the

5345A

when

the

5355A

is

plugged

in.

2-8.

Operating

Environment

2-9.

The

operating

temperature

range

is

0°C

to

55°C.

If

these

limits

are

exceeded

at

the

installation

site,

auxiliary

cooling

or

heating

should

be

used

to

keep

environment

within

limits.

2-10.

installation

2-11,

To

install

the

5355A,

proceed

as

follows:

a.

On

the

5345A,

set

POWER

switch

to

STANDBY.

b.

Pull

the

locking

handle

on

the

left

side

of

the

5355A

up

to

the

horizontal

position.

c.

Slide

the

5355A

into

the

5345A.

Use

caution

to

prevent

damage

to

interface

con¬

nectors

at

rear

of

unit.

d.

Push

locking

handle

down

and

toward

the

instrument

until

it

is

parallel

with

the

front

panel.

e.

For

operating

information,

address

switch

settings,

and

connections

to

rear

panel

BNC

connectors,

refer

to

Section

ill.

2-12.

Compatibility

with

5345A

2-13.

The

5345A

must

be

in

EXT

GATE

mode

when

the

5355A

is

in

PULSE

mode

and

must

be

in

INT

GATE

mode

when

the

5355A

is

in

CW

mode.

If

the

GATE

CONTROL

switch

on

the

rear

panel

of

the

5345A

is

left

in

INT

position,

then

the

proper

gating

mode

is

selected

automatically

in

5345A's

that

have

Serial

Prefix

1808A

or

higher.

Older

5345A's

with

serial

prefix

1744A

and

below

require

manual

selection

of

EXT

GATE

mode

(for

PULSE)

and

INT

GATE

mode

(for

CW).

However,

a

minor

modification

can

be

added

(see

paragraph

8-13)

which

updates

these

units.

2-1
