Mode!
5355A
Operation
and
Programming
OUT
BNC
connector
that
supplies
an
outputfrom
the
IF
amplifier.
The
down-converted
signal
in
the
78—375
MHz
range
is
available
for
monitoring.
PULSE
OUT
BNC
connector
that
supplies
the
envelope
of
the
input
pulse.
Signal
can
be
used
to
measure
the
pulse
width
or
PRF
of
the
RF
input.
Can
be
used
to
trigger
a
delay
generator
for
frequency
profile
measurements.
GATE
BNC
connector
that
supplies
a
gating
signal,
derived
from
the
IF
pulse
burst,
that
is
used
to
drive
the
5345A
CATE
CONTROL
INPUT.
OUT
Hewlett-Packard
Interface
Bus
connector.
Accepts
HP-IB
system
signals
for
remote
control
of
the
plug-in
functions.
Refer
to
HP-IB
programming
paragraph
3-58
for
details.
HP-IB
Address
switches
(Ai—As).
These
switches
are
used
to
assign
the
HP-IB
address
code
{listen
only)
to
the
5355A.
Refer
to
paragraph
3-62.

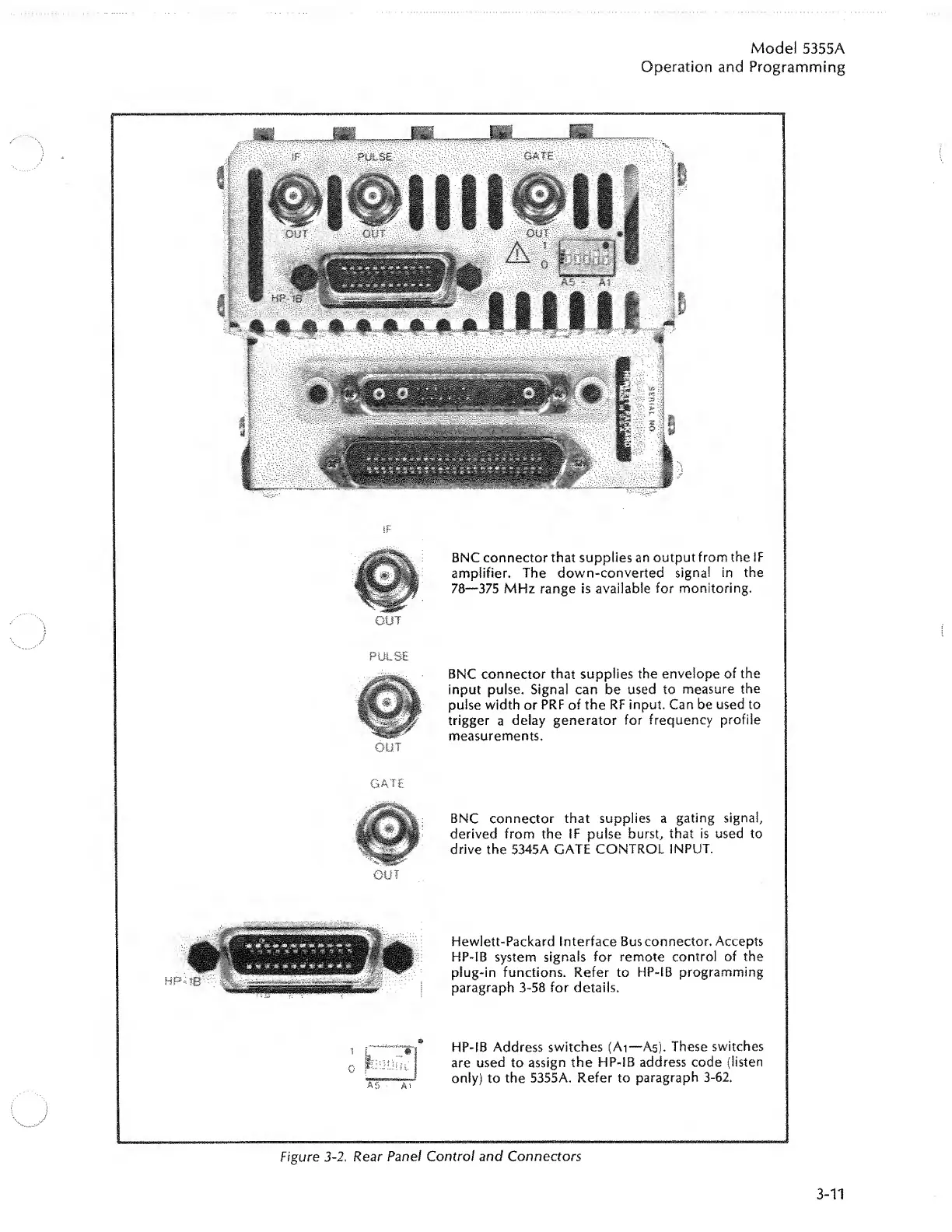

Figure
3-2.
Rear
Panel
Control
and
Connectors
3-11
