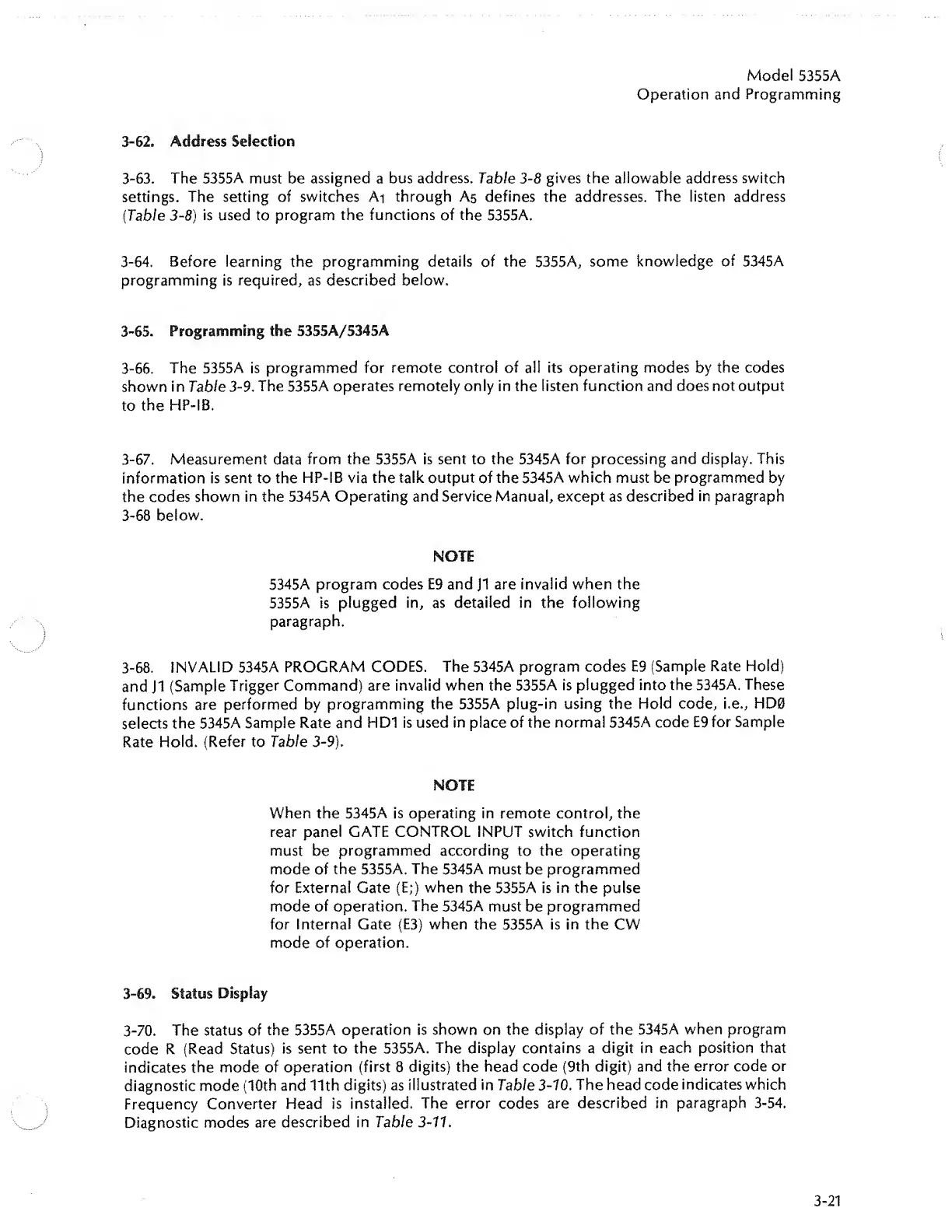

Model

5355A

Operation

and

Programming

3-62.

Address

Selection

3-63.

The

5355A

must

be

assigned

a

bus

address.

Table

3-8

gives

the

allowable

address

switch

settings.

The

setting

of

switches

Ai

through

As

defines

the

addresses.

The

listen

address

{Table

3-8)

is

used

to

program

the

functions

of

the

5355A.

3-64.

Before

learning

the

programming

details

of

the

5355A,

some

knowledge

of

5345A

programming

is

required,

as

described

below.

3-65.

Programming

the

5355A/5345A

3-66.

The

5355A

is

programmed

for

remote

control

of

all

its

operating

modes

by

the

codes

shown

in

Table

3-9.

The

5355A

operates

remotely

only

in

the

listen

function

and

does

not

output

to

the

HP-IB.

3-67.

Measurement

data

from

the

5355A

is

sent

to

the

5345A

for

processing

and

display.

This

information

is

sent

to

the

HP-IB

via

the

talk

output

of

the

5345A

which

must

be

programmed

by

the

codes

shown

in

the

5345A

Operating

and

Service

Manual,

except

as

described

in

paragraph

3-68

below.

NOTE

5345A

program

codes

E9

and

J1

are

invalid

when

the

5355A

is

plugged

in,

as

detailed

in

the

following

paragraph.

3-68.

INVALID

5345A

PROGRAM

CODES.

The

5345A

program

codes

E9

(Sample

Rate

Hold)

and

J1

(Sample

Trigger

Command)

are

invalid

when

the

5355A

is

plugged

into

the

5345A.

These

functions

are

performed

by

programming

the

5355A

plug-in

using

the

Hold

code,

i.e.,

HD0

selects

the

5345A

Sample

Rate

and

HD1

is

used

in

place

of

the

normal

5345A

code

E9

for

Sample

Rate

Hold.

(Refer

to

Table

3-9).

NOTE

When

the

5345A

is

operating

in

remote

control,

the

rear

panel

GATE

CONTROL

INPUT

switch

function

must

be

programmed

according

to

the

operating

mode

of

the

5355A.

The

5345A

must

be

programmed

for

External

Gate

(E;)

when

the

5355A

is

in

the

pulse

mode

of

operation.

The

5345A

must

be

programmed

for

Internal

Gate

(E3)

when

the

5355A

is

in

the

CW

mode

of

operation.

3-69.

Status

Display

3-70.

The

status

of

the

5355A

operation

is

shown

on

the

display

of

the

5345A

when

program

code

R

(Read

Status)

is

sent

to

the

5355A.

The

display

contains

a

digit

in

each

position

that

indicates

the

mode

of

operation

(first

8

digits)

the

head

code

(9th

digit)

and

the

error

code

or

diagnostic

mode

(10th

and

11th

digits)

as

illustrated

in

Table

3-70.

The

head

code

indicates

which

Frequency

Converter

Head

is

installed.

The

error

codes

are

described

in

paragraph

3-54.

Diagnostic

modes

are

described

in

Table

3-11

.

3-21
