HP 5355A - Page 46

Model 5355A
Operation and Programming

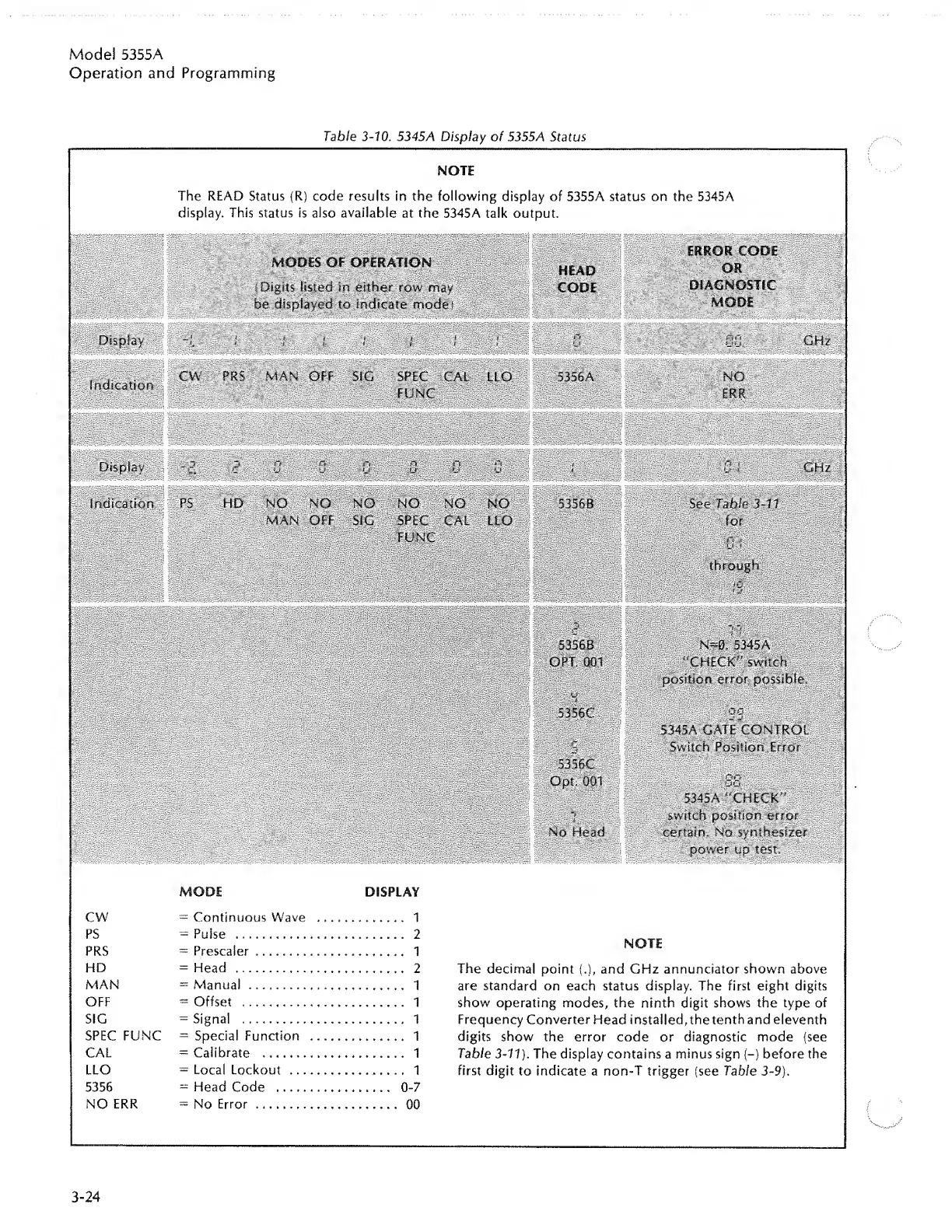

Table 3-70. 5345A Display of 5355A Status
MODE
DISPLAY
CW = Continuous Wave . 1
PS = Pulse . 2
PRS = Prescaler. 1
HD = Head . 2
MAN = Manual. 1
OFF = Offset . 1
SIG - Signal . 1
SPEC FUNC = Special Function . 1
CAL = Calibrate . 1
LLO = Local Lockout . 1
5356 = Head Code . 0-7
NO ERR - No Error. 00
NOTE
The decimal point {.), and GHz annunciator shown above
are standard on each status display. The first eight digits
show operating modes, the ninth digit shows the type of
Frequency Converter Head installed,thetenth and eleventh
digits show the error code or diagnostic mode (see
Table 3-77). The display contains a minus sign (-) before the
first digit to indicate a non-T trigger (see Table 3-9).
