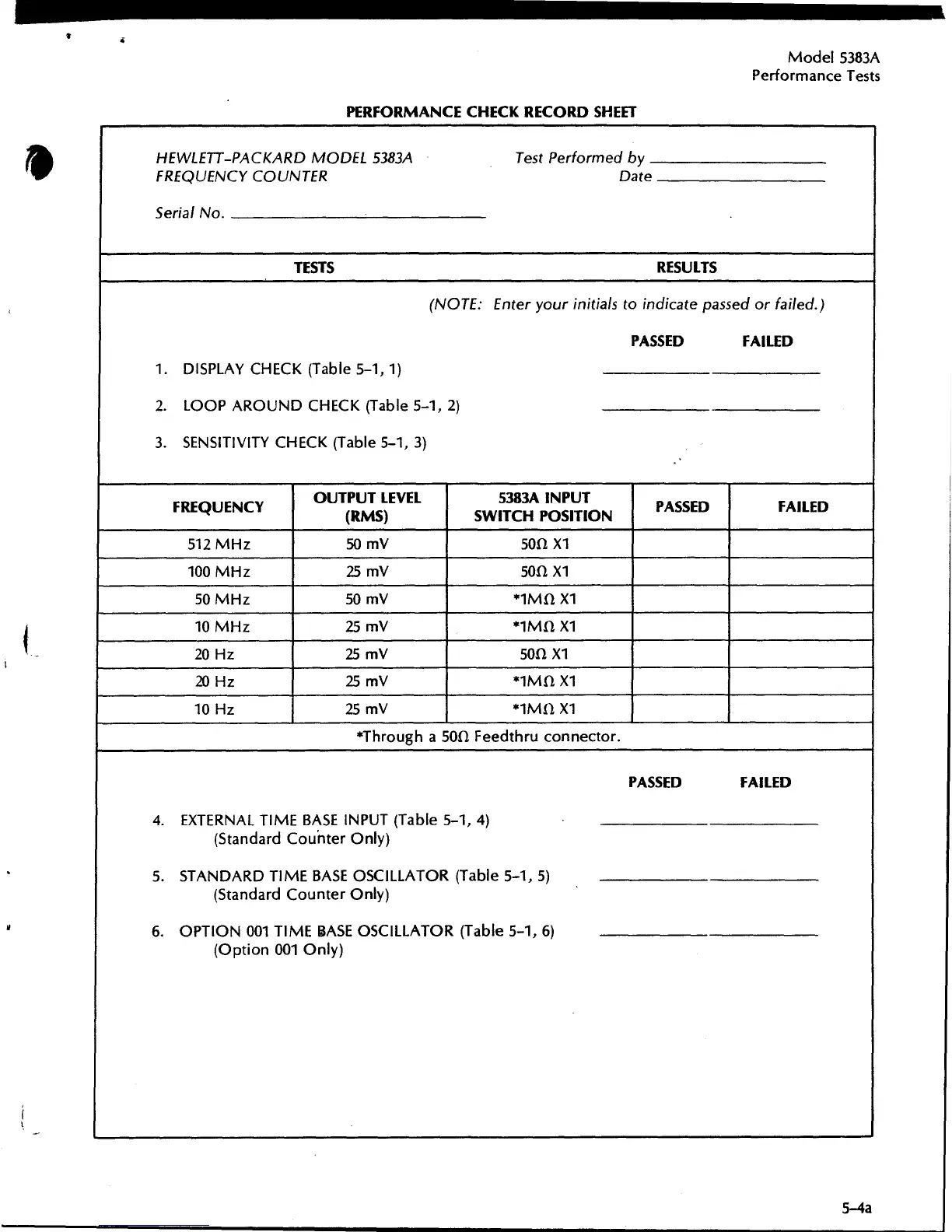

HP 5383A

PERF O RM
A
N C E C HE C
K
RE CO
R
D S HE ET
M
o d el 5383 Α
P erfo r ma n ce Tests
HEWLE TT- PACK A R D M OD EL 5383 Α Test P e r fo r med by
FR E QUEN CY CO UN T ER Date
Serial Νο .
T ESTS
RE S UL TS
(NOTE : En te r yo ur i n itials to i n dicate p asse d o r faile d .)
P
ASS E D FAILE D
1 .
DIS
PL
AYC HE C K (Table 5-1,
1)
2 . L OO P AR O UN D CHECK (Table 5-1, 2)
3 . S EN SITI V ITY CHE C
K
(Ta b le 5-1, 3)
FR E Q
UEN CY
O
U
T
PU T
LEVEL
5383
Α
I
NPU T
P ASS
E D F AI LE D
(R M S) S W ITC H P OSITIO N
512 MHz 50 m V 50 Ω Χ 1
100 MHz 25 m V 50 Ω Χ 1
50 MH z 50
m V
*1 ΜΩ
Χ 1
10
MHz
25 mV *1 ΜΩ Χ 1
20 Hz 25 mV 50 Ω Χ 1
20
Hz
25 m V *1 ΜΩ Χ 1
10 H z 25 m V *1 ΜΩ Χ 1
*T h r o u gh α 50 Ω F eed t hr u con n ecto
r .
P ASS E D F AI LE D
4 . E
XT
ERN A
L TIME BASE
I NPU T (Table 5-1, 4)
(Sta
nd a rd Counte r Only)
5 .
STA N DA R D
TIME
B AS E OSCI LL ATO R (Table 5-1,5)
(Sta nd a rd Co un te r Only)
6 . OPTION 001 TIME BAS E OSCI LL ATO
R (Table
5-1, 6)
(O p
tio
n 001 Only)
