A1CR3(cathode) dc coupled
O.OSV/div .05 J.!S/div.
A 1 U3B (5) 0.05 J.~s/div .
0. 2V / div ac coupled
de
level is approximately 3.6V
A 1 U6B( 14 ) 0.05V/div.
0.2V/
div . ac coupled
de level is approximately 2.8V
A1U3A(10} .05
S-~sldiv .
HP 5384A and HP 5385A
Service
0.05V/div ac coupled
de
level is approximately 3.4V
A1U38 (2) 0. 05 J.IS / div .
O.SV/div.
ac coupled
de
level is approximatley 3.6V
A1U68(12) 0.05 J.!S/div .
0.2V/div.
ac coupled
de
level is approximately 2.8V

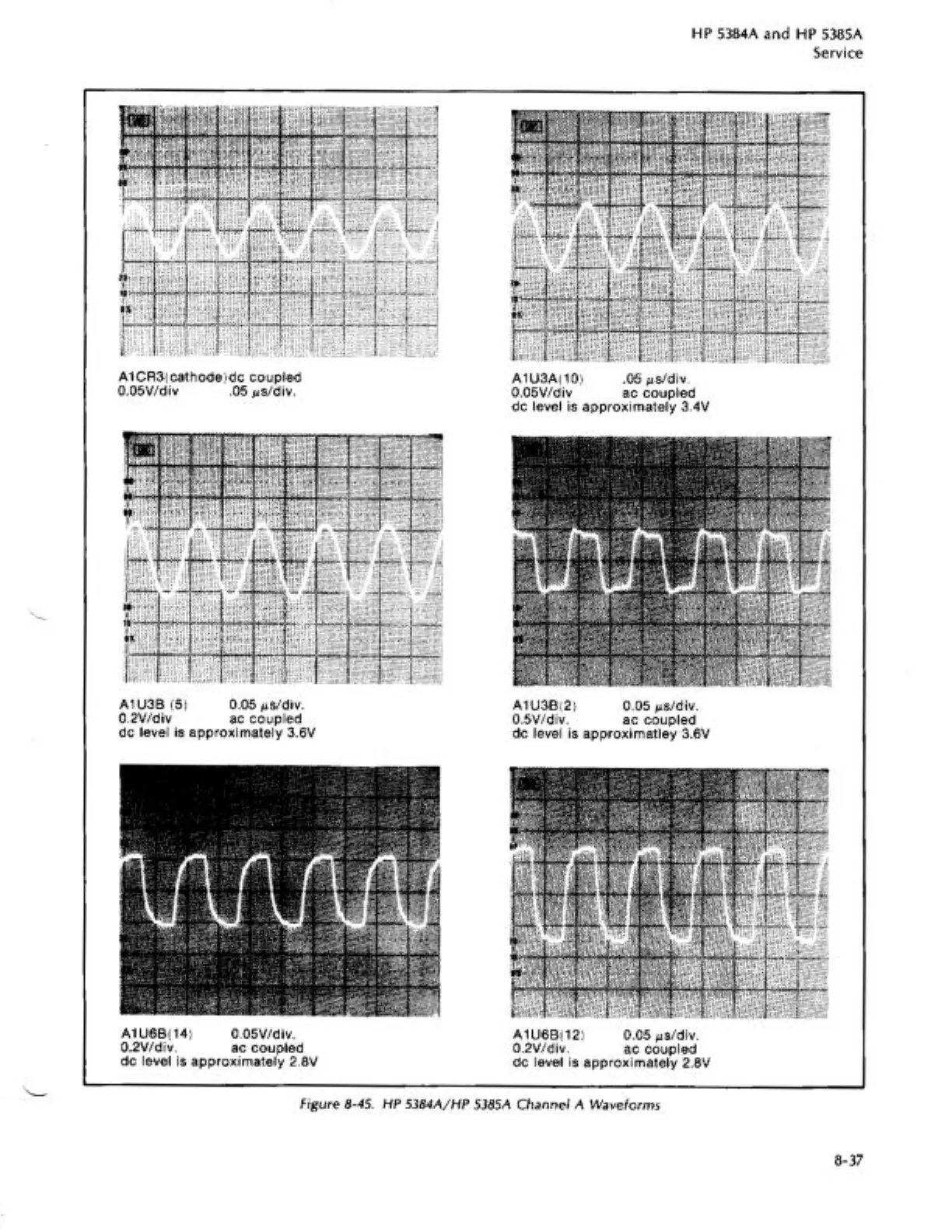

figure 8-45. HP 5384A / HP 5J85A Channel A Waveforms
8-37
