HP 5384A and HP 5385A
Service
A1CR25
0.01V/div.
0.01 J.lS/div.
de coupled
A1L 10 (lead nearest front panel)
0.01V/div.
ac coupled
0.01 J.lS/div.
de level is approximately 2.0V
A1L12 (lead nearest front panel) A1U19(10) 0.01 J.lS/div.
0.02V/div.
ac coupled 0.1V/div. ac coupled
de level is approximately 2.0V de level is approximately 2.4V
A1 U19(4) 1 J.lS/div. A1U6A(11) 1 J.lS/div.
0.2V/div. ac coupled 0.2V/div. ac coupled
de level is approximately 3.4V de level is approximately 2.8V

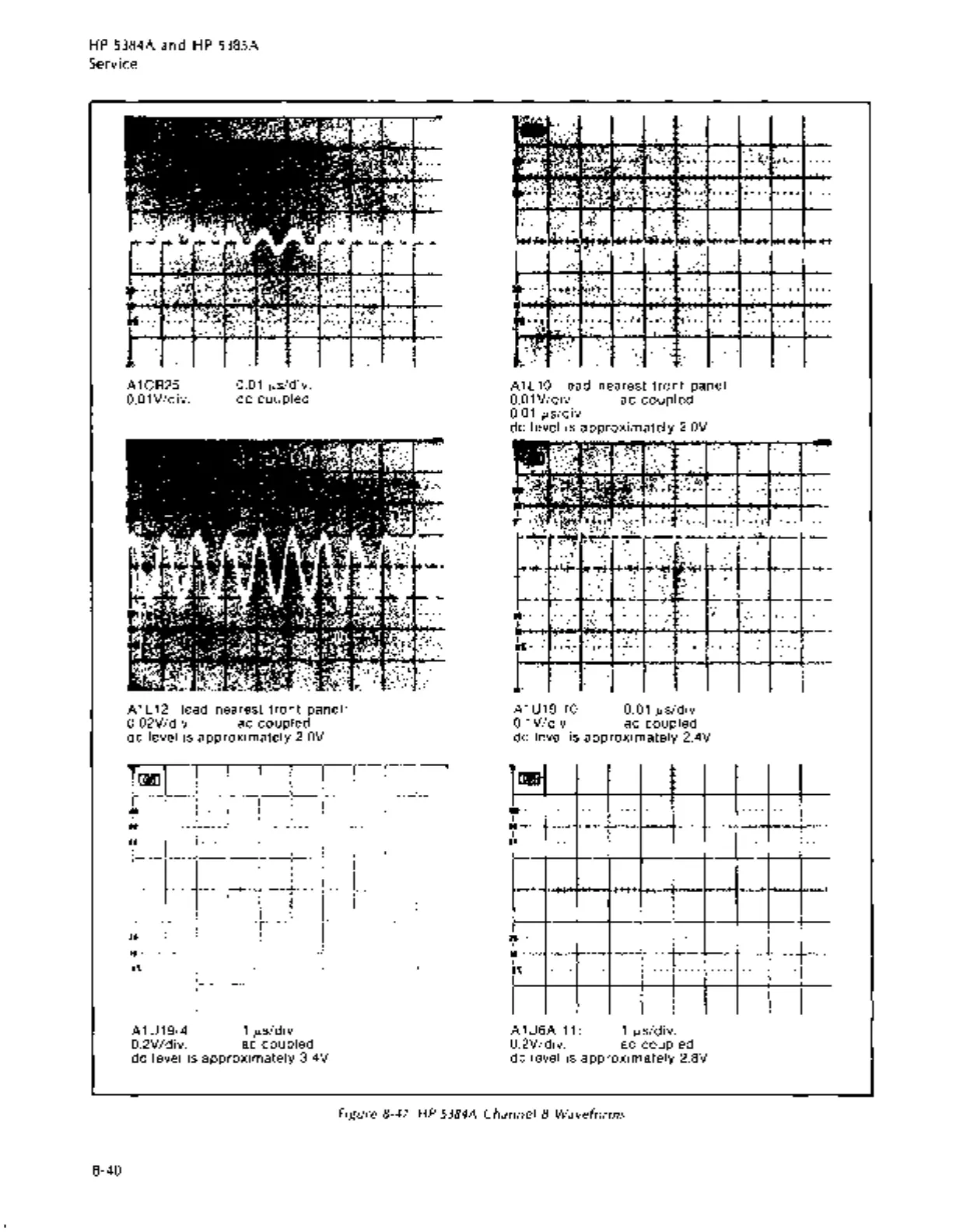

Figure 8-47. HP 5384A Channel B Waveforms
8-40
