UNINET IMAGING INC. • HP 5500 CARTRIDGE REMANUFACTURING INSTRUCTIONS

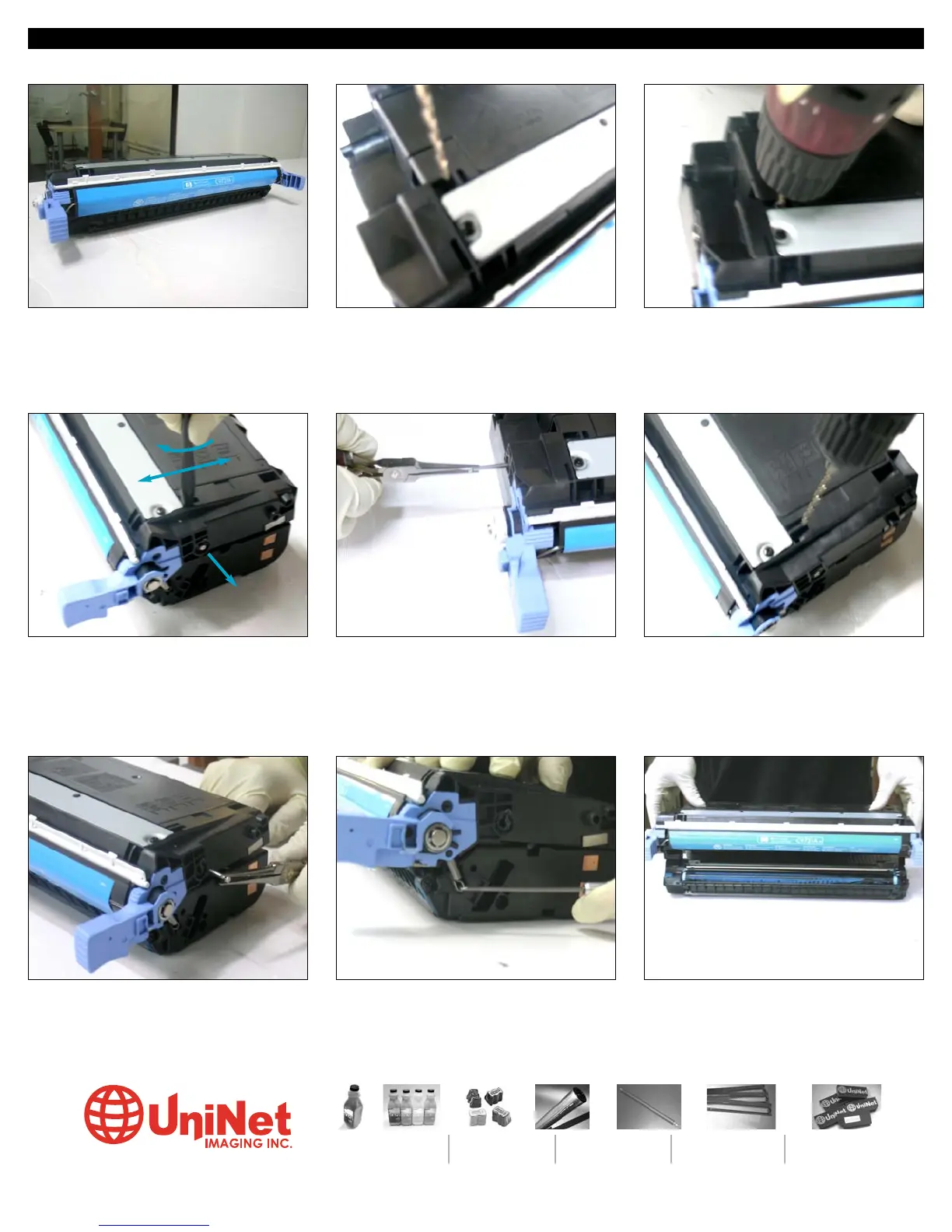

5. Insert a small flathead screwdriver into
the first pin hole. Move from side to side or
twirl until the pin comes out.
6. Pull out the pin with needle nose pliers. 7. Repeat the same procedure on the oppo-
site end.
8. Pull out second pin as shown. 9. Release the spring located on the con-
tact side.
10. Lift and remove the drum unit from the
toner hopper.
Pin should
pop out
DISASSEMBLING THE CARTRIDGE 4. Use a 3/32 size bit to drill a hole in a small opening located on top of the cartridge.
