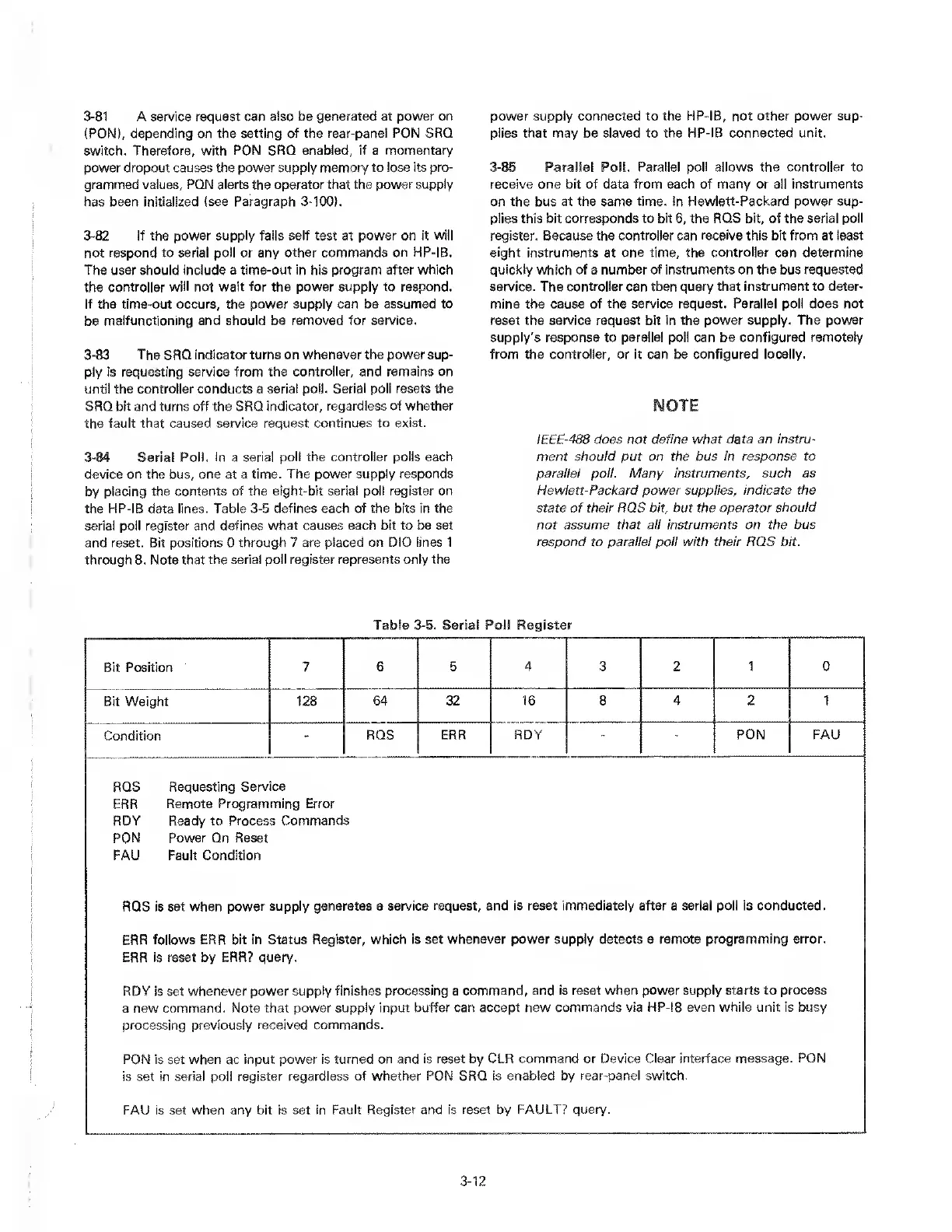

3-81
A
service
request
can
also
be
generated
at
power
on
(PON),
depending
on
the
setting
of
the
rear-panei
PON
SRQ
switch.
Therefore,
with
PON
SRQ
enabled,
if
a
momentary
power
dropout
causes
the
power
supply
memory
to
lose
its
pro¬
grammed
values,
PON
alerts
the
operator
that
the
power
supply
has
been
initialized
(see
Paragraph
3-100).
3-82
If
the
power
supply
fails
self
test
at
power
on
it
will
not
respond
to
serial
poll
or
any
other
commands
on
HP-IB.
The
user
should
include
a
time-out
In
his
program
after
which
the
controller
will
not
wait
for
the
power
supply
to
respond.
If
the
time-out
occurs,
the
power
supply
can
be
assumed
to
be
malfunctioning
and
should
be
removed
for
service.
3-83
The
SRQ
indicator
turns
on
whenever
the
power
sup¬
ply
Is
requesting
service
from
the
controller,
and
remains
on
until
the
controller
conducts
a
serial
poll.
Serial
poll
resets
the
SRQ
bit
and
turns
off
the
SRQ
indicator,
regardless
of
whether
the
fault
that
caused
service
request
continues
to
exist.
3-84
Serial
Poll.
In
a
serial
poll
the
controller
polls
each
device
on
the
bus,
one
at
a
time.
The
power
supply
responds
by
placing
the
contents
of
the
eight-bit
serial
poll
register
on
the
HP-IB
data
lines.
Table
3-5
defines
each
of
the
bits
in
the
serial
poll
register
and
defines
what
causes
each
bit
to
be
set
and
reset.
Bit
positions
0
through
7
are
placed
on
DIO
lines
1
through
8.
Note
that
the
serial
poll
register
represents
only
the
power
supply
connected
to
the
HP-IB,
not
other
power
sup¬
plies
that
may
be
slaved
to
the
HP-IB
connected
unit.
3-85
Parallel
Poll.
Parallel
poll
allows
the
controller
to
receive
one
bit
of
data
from
each
of
many
or
all
instruments
on
the
bus
at
the
same
time.
In
Hewlett-Packard
power
sup¬
plies
this
bit
corresponds
to
bit
6,
the
RQS
bit,
of
the
serial
poll
register.
Because
the
controller
can
receive
this
bit
from
at
least
eight
instruments
at
one
time,
the
controller
can
determine
quickly
which
of
a
number
of
Instruments
on
the
bus
requested
service.
The
controller
can
then
query
that
instrument
to
deter¬
mine
the
cause
of
the
service
request.
Parallel
poll
does
not
reset
the
service
request
bit
in
the
power
supply.
The
power
supply's
response
to
parallel
poll
can
be
configured
remotely
from
the
controller,
or
it
can
be
configured
locally.
NOTE
IEEE-438
does
not
define
what
data
an
instru¬
ment
should
put
on
the
bus
in
response
to
parallel
poll.
Many
instruments,
such
as
Hewlett-Packard
power
supplies,
indicate
the
state
of
their
RQS
bit,
but
the
operator
should
not
assume
that
all
instruments
on
the
bus
respond
to
parallel
poll
with
their
RQS
bit.
Table
3-5.
Serial
Poll
Register
Bit
Position
7
6
5
4
3
2
1
0
Bit
Weight
128
64
32
16
8
4
2
1
Condition
-
RQS
ERR
RDY
-
-
PON
FAU
RQS
Requesting
Service
ERR
Remote
Programming
Error
RDY
Ready
to
Process
Commands
PON
Power
On
Reset
FAD
Fault
Condition
RQS
is
set
when
power
supply
generates
a
service
request,
and
is
reset
Immediately
after
a
serial
poll
is
conducted.
ERR
follows
ERR
bit
in
Status
Register,
which
is
set
whenever
power
supply
detects
a
remote
programming
error.
ERR
is
reset
by
ERR?
query.
RDY
is
set
whenever
power
supply
finishes
processing
a
command,
and
is
reset
when
power
supply
starts
to
process
a
new
command.
Note
that
power
supply
input
buffer
can
accept
new
commands
via
HP-IB
even
white
unit
is
busy
processing
previously
received
commands.
PON
is
set
when
ac
input
power
is
turned
on
and
is
reset
by
CLR
command
or
Device
Clear
interface
message.
PON
is
set
in
serial
poll
register
regardless
of
whether
PON
SRQ
Is
enabled
by
rear-pane!
switch.
FAU
is
set
when
any
bit
is
set
in
Fault
Register
and
is
reset
by
FAULT?
query.
3-12
