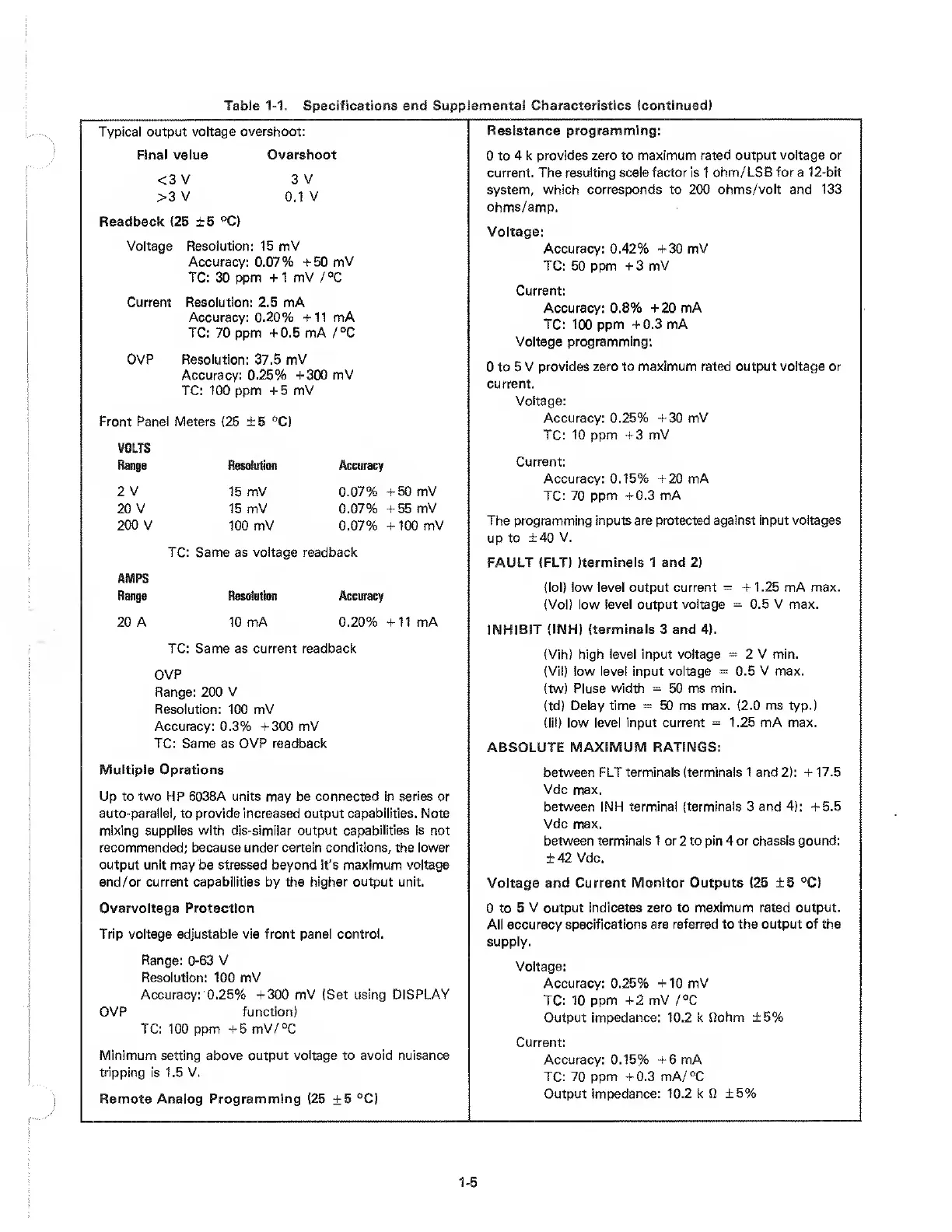

Table
1-1.
Specifications
and
Suppiementa!
Characteristics
(continued)
Typical
output
voltage
overshoot:
Final
value
Overshoot
<3
V
3
V
>3V
0.1V
Readback
{25
±5
°C)
Voltage
Resolution:
15
mV
Accuracy:
0.07%
4-50
mV
TC:
30
ppm
4-1
mV/°C
Current
Resolution:
2.5
mA
Accuracy:
0.20%
4-11
mA
TC:
70
ppm
4-0.5
mA
/°C
OVP
Resolution:
37.5
mV
Accuracy:
0.25%
4-300
mV
TC:
100
ppm
4-5
mV
Front
Panel
Meters
(25
±5
°C)
VOLTS
Range
Resofutim
Accuracy
2
V
15
mV
0.07%
4
50
mV
20
V
15
mV
0.07%
4
55
mV
200
V
100
mV
0.07%
4100
mV
TC:
Same
as
voltage
readback
mp$
Range
Resolutkm
Accuracy
20
A
10
mA
0.20%
411
mA
TC:
Same
as
current
readback
OVP
Range:
2(X)
V
Resolution:
100
mV
Accuracy:
0.3%
4-300
mV
TC:
Same
as
OVP
readback
Multiple
Oprations
Up
to
two
HP
6038A
units
may
be
connected
in
series
or
auto-parallel,
to
provide
increased
output
capabilities.
Note
mixing
supplies
with
dis-similar
output
capabilities
is
not
recommended;
because
under
certain
conditions,
the
lower
output
unit
may
be
stressed
beyond
it's
maximum
voltage
and/or
current
capabilities
by
the
higher
output
unit.
Overvoltage
Protection
Trip
voltage
adjustable
via
front
panel
control.
Range:
0-63
V
Resolution:
100
mV
Accuracy:
0.25%
4-300
mV
(Set
using
DISPLAY
OVP
function}
TC:
100
ppm
+5
mV/°C
Minimum
setting
above
output
voltage
to
avoid
nuisance
tripping
is
1.5
V.
Remote
Analog
Programming
(25
±5
‘’O
Resistance
programming:
0
to
4
k
provides
zero
to
maximum
rated
output
voltage
or
current.
The
resulting
scale
factor
is
1
ohm/LSBfora
12-bit
system,
which
corresponds
to
2(X)
ohms/volt
and
133
ohms/amp.
Voltage:
Accuracy:
0.42%
4-30
mV
TC;
50
ppm
4
3
mV
Current:
Accuracy:
0.8%
420
mA
TC:
100
ppm
4
0.3
mA
Voltage
programming:
0
to
5
V
provides
zero
to
maximum
rated
output
voltage
or
current.
Voltage:
Accuracy:
0.25%
4
30
mV
TC:
10
ppm
43
mV
Current:
Accuracy:
0.15%
420
mA
TC:
70
ppm
40.3
mA
The
programming
inputs
are
protected
against
input
voltages
up
to
±40
V.
FAULT
(FLT)
)terminals
1
and
2)
(iol)
low
level
output
current
=
4
1.25
mA
max.
(Vo!)
low
level
output
voltage
=
0.5
V
max.
INHIBIT
(INH)
(terminals
3
and
4).
(Vih)
high
level
input
voltage
=
2
V
min.
(Vi!)
low
level
input
voltage
=
0.5
V
max.
(tw)
Ptuse
width
=
50
ms
min.
(td)
Delay
time
=
50
ms
max.
(2.0
ms
typ.)
(lil)
low
level
input
current
=
1.25
mA
max.
ABSOLUTE
MAXIMUM
RATINGS:
between
FLT
terminals
(terminals
1
and
2):
4
17.5
Vdc
max.
between
INH
terminal
(terminals
3
and
4):
45.5
Vdc
max.
between
terminals
1
or
2
to
pin
4
or
chassis
gound:
±42
Vdc.
Voltage
and
Current
Monitor
Outputs
(25
±5
°C}
0
to
5
V
output
indicates
zero
to
maximum
rated
output.
All
accuracy
specifications
are
referred
to
the
output
of
the
supply.
Voltage:
Accuracy:
0.25%
410
mV
TC;
10
ppm
42
mV
/°C
Output
impedance:
10.2
k
fiohm
±5%
Current:
Accuracy:
0.15%
46
mA
TC:
70
ppm
4
0.3
mA/®C
Output
impedance:
10.2
k
0
±5%
