3-224
in
Figure
3-18.
the
FLT
output
is
used
to
trigger
a
relay
driver
circuit.
When
the
driver
circuit
energizes
the
relay,
the
power
supply
is
disconnected
from
the
load.
This
applic-
tion
is
useful
to
provide
protection
for
the
load
if
the
controller
is
halted
during
a
debugging
session
and
a
fault
condition
arises.
Once
the
controller
is
no
longer
busy,
the
fault
line
can
be
reset
by
rading
the
fault
register
and
the
power
supply
can
be
in¬
itialized
to
its
power
on
state
(see
Table
3-6)
by
sending
a
CLR.
3-225

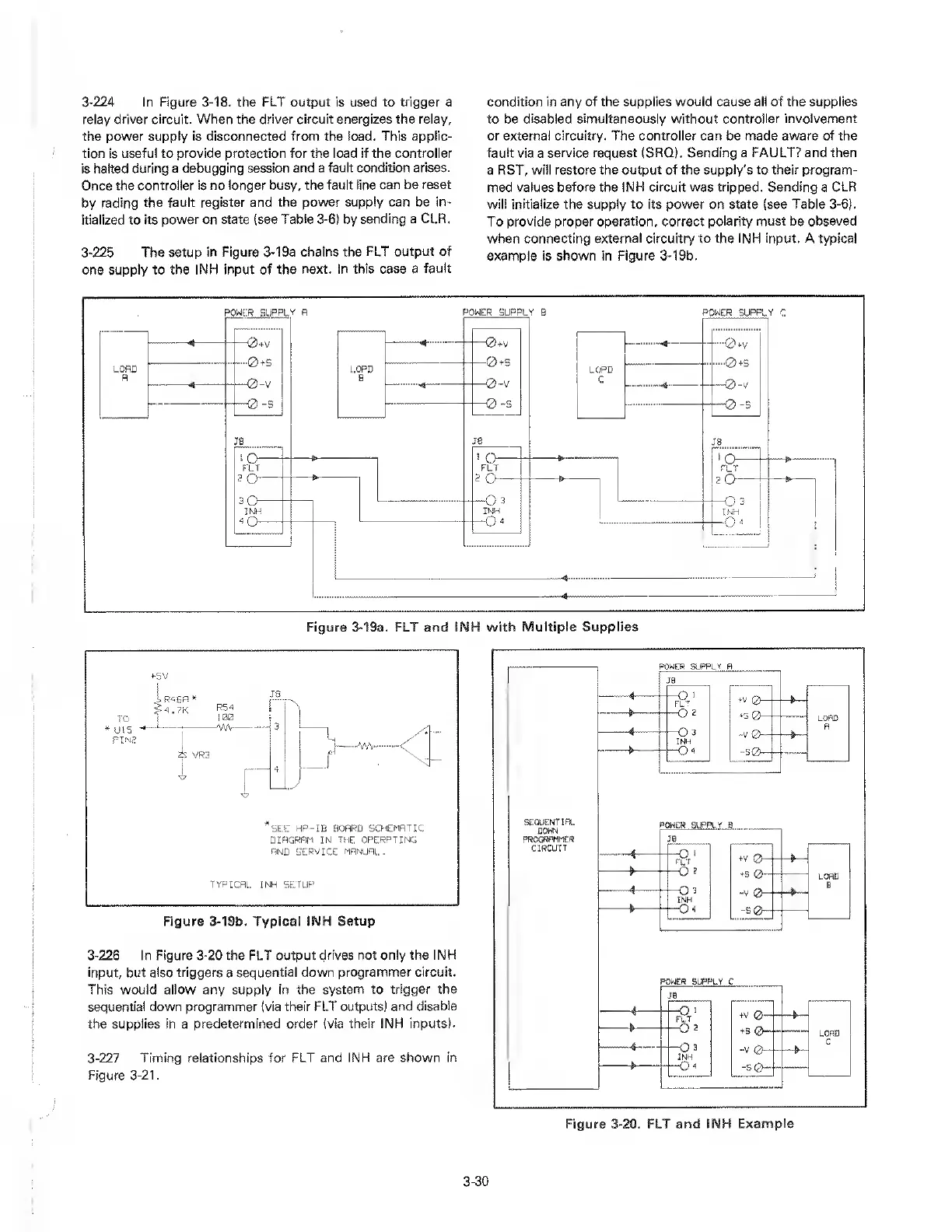

The
setup
in
Figure
3-19a
chains
the
FLT
output
of
one
supply
to
the
INH
input
of
the
next.
In
this
case
a
fault
condition
in
any
of
the
supplies
would
cause
all
of
the
supplies
to
be
disabled
simultaneously
without
controller
involvement
or
external
circuitry.
The
controller
can
be
made
aware
of
the
fault
via
a
service
request
(SRQ).
Sending
a
FAULT?
and
then
a
RST,
will
restore
the
output
of
the
supply's
to
their
program¬
med
values
before
the
INH
circuit
was
tripped.
Sending
a
CLR
will
initialize
the
supply
to
its
power
on
state
(see
Table
3-6).
To
provide
proper
operation,
correct
polarity
must
be
obseved
when
connecting
external
circuitry
to
the
INH
input.
A
typical
example
is
shown
in
Figure
3-19b.
