HP 6268B Operating And Service Manual

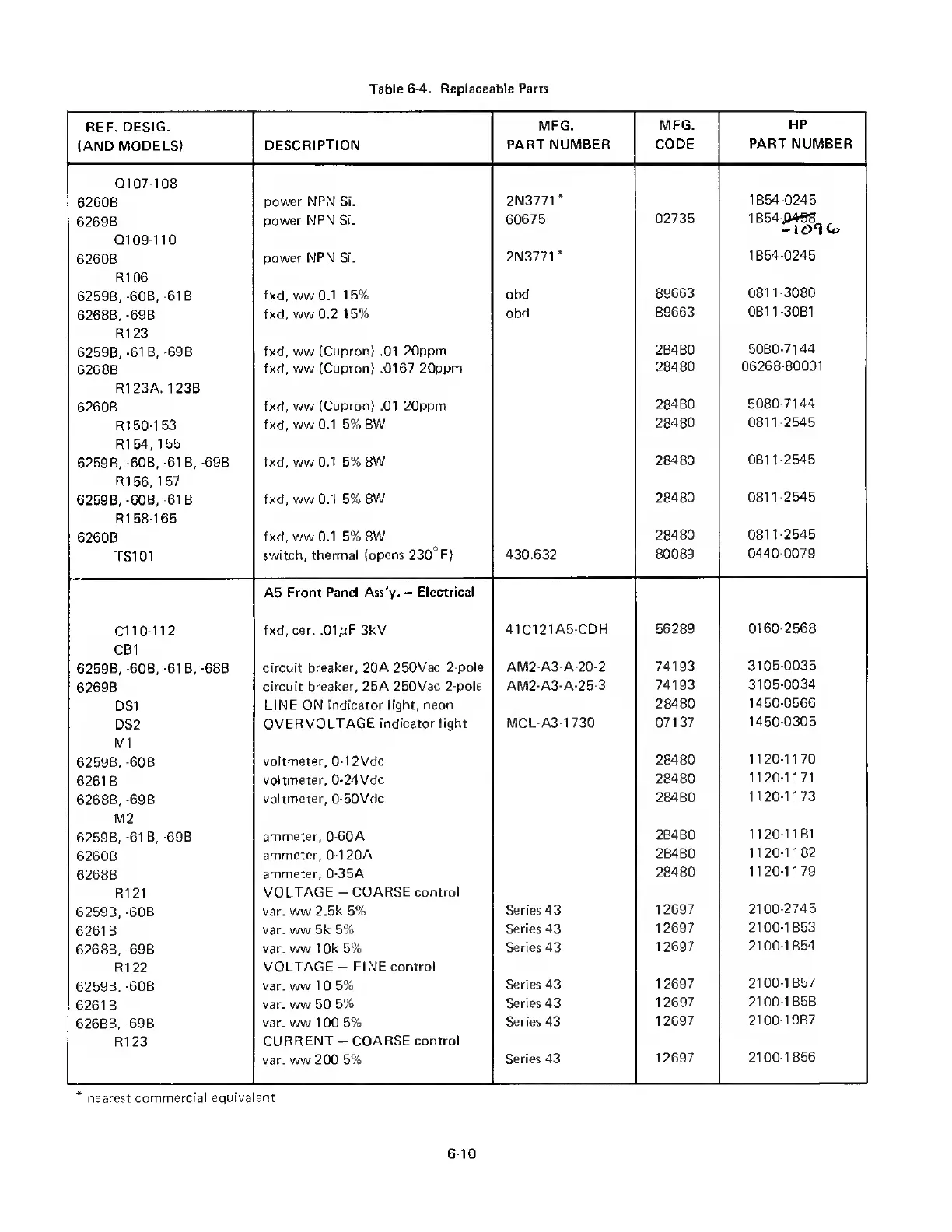

Table 6-4. Replaceable Parts
REF. DESIG.
(AND MODELS)
DESCRIPTION
MFG.
PART NUMBER
MFG.
CODE
HP
PART NUMBER
Q107-108
6260B
power NPN Si.
2N3771 *
1854-0245
6269B
power NPN Si.
60675
02735
1854-J}4e8
-!£><! Co
Q109-110
6260B
power NPN Si.
2N3771 *
1854-0245
R106
6259B, -60B, -61 B
fxd, ww 0.1 1 5%
obd
89663 0811 -3080
6268B, -69B
fxd, ww 0.2 15%
obd
89663
0811 -3081
R123
6259B, -61 B, -69B
fxd, ww (Cupron) .01 20ppm
28480
5080-7144
6268B
fxd, ww (Cupron) .0167 20ppm
28480
06268-80001
R123A. 1 23 B
6260B
fxd, ww (Cupron) .01 20ppm
28480
5080-7144
R150-1 53
fxd, ww 0.1 5% 8W
28480
0811-2545
R1 54, 155
6259B, -60B, -61 B, -69B
fxd, ww 0.1 5% 8W
28480
081 1-2545
R1 56, 157
6259B, -60B, -61 B
fxd, ww 0.1 5% 8W
28480
0811-2545
R1 58-165
6260B
fxd, ww 0.1 5% 8W
28480
0811-2545
TS101
switch, thermal (opens 230°F)
430.632
80089
0440-0079
C110-112
A5 Front Panel Ass'y.— Electrical
fxd, cer. .01qF 3kV
41 Cl 21A5-CDH
56289 0160-2568
CB1
6259B, -60B, -61 B, -68B
circuit breaker, 20A 250Vac 2-pole
AM2-A3 A 20-2
74193
31050035
6269B
circuit breaker, 25A 250Vac 2 pole
AM2-A3-A-25-3 74193
3105-0034
DS1
LINE ON indicator light, neon
28480
1450-0566
DS2
OVERVOLTAGE indicator light
MCL A3-1730
07137
1450-0305
Ml
6259B, -60B
voltmeter, 0-12Vdc
28480
1120-1170
6261 B
voltmeter, 0-24Vdc
28480
1120-1171
6268B, -69B
voltmeter, 0-50Vdc
28480
1120-1173
M2
6259B, -61 B, -69B
ammeter, 0-60A
28480
1120 1181
6260B
ammeter, 0-1 20A
28480
1120-1182
6268B
ammeter, 0-35A
28480
1120-1179
R121
6259B, -60B
VOLTAGE - COARSE control
var. ww 2.5k 5%
Series 43
12697
2100-2745
6261 B
var. ww 5k 5%
Series 43
12697
2100-1853
6268B, -69B
var. ww 10k 5%
Series 43
12697
2100-1854
R122
6259B, -60B
VOLTAGE — FINE control
var. ww 1 0 5%
Series 43
12697
2100-1857
6261 B
var. ww 50 5%
Series 43
12697
2100-1858
6268B, -69B
var, ww 100 5%
Series 43
12697
2100-1987
R123
CURRENT - COARSE control
var. ww 200 5%
Series 43
12697
2100-1856
nearest commercial equivalent
6-10
