HP 6268B Operating And Service Manual

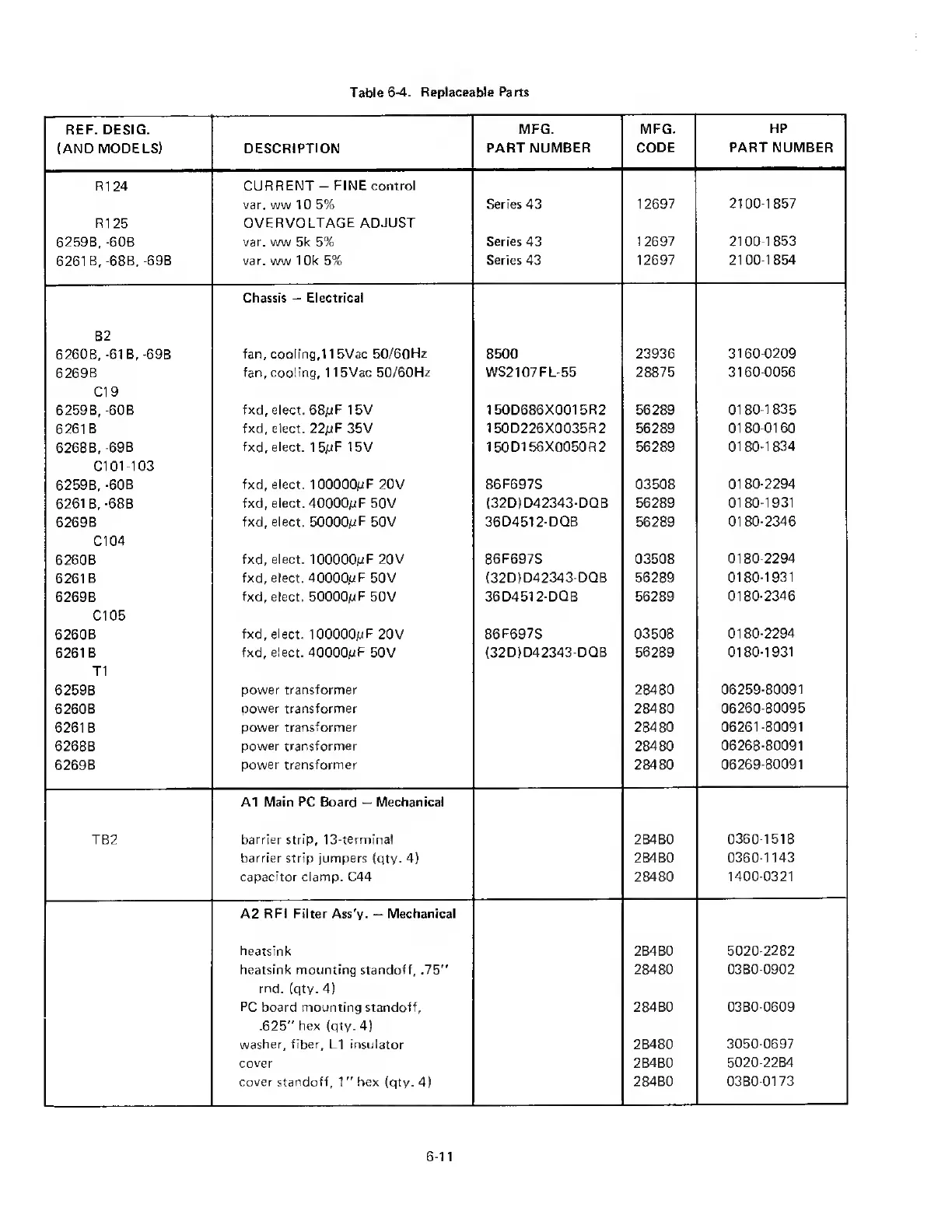

Table 6-4. Replaceable Parts
REF. DESIG.
{AND MODELS) DESCRIPTION
MFG.
PART NUMBER
MFG.
CODE
HP
PART NUMBER
R124
CURRENT - FINE control
var. ww 10 5%
Series 43
12697 2100-1857
R125
OVERVOLTAGE ADJUST
6259B, -60B
var. ww 5k 5% Series 43
12697 2100-1853
6261 B, -68B, -69B
var. ww 10k 5% Series 43
2100-1854
Chassis - Electrical
B2
6260B, -61 B, -69B
fan, cooling,11 5Vac 50/60Hz 8500 23936 3160-0209
6269B
fan, cooling, 115Vac 50/60Hz WS2107FL-55 28875 3160-0056
Cl 9
6259B, -60B
fxd, elect. 68pF 15V 150D686X0015R2 56289 0180-1835
6261 B
fxd, elect. 22/uF 35V 150D226X0035R2 56289 01 80-01 60
6268B, -69B
fxd, elect. 1 5 /jF 1 5V 150D1 56 X0050 R2 56289
0180-1834
Cl 01-103
6259B, -60B
fxd, elect. lOOOOOpF 20V 86F697S 03508
0180-2294
6261 B, -68B
fxd, elect. 40000 mF 50V (32D) D42343-DQB 56289
0180-1931
6269B fxd, elect. 50000^F 50V 36D4512-DQB 56289
01 80-2346
Cl 04
6260B fxd, elect. 1 00000 mF 20V
86F697S 03508
0180 2294
6261 B fxd, elect. 40000 mF 50V
(32D)D42343-DQB 56289
0180-1931
6269B
fxd, elect. 50000 mF 50V 36D4512-DQB 56289
0180-2346
Cl 05
6260B fxd, elect. 1 00000 mF 20V 86F697S 03508
0180-2294
6261 B fxd, elect. 40000 mF 50V
(32D)D42343-DQB
56289
0180-1931
T1
6259B
power transformer 28480 06259-80091
6260B
power transformer
28480
06260 80095
6261 B
power transformer 28480 06261-80091
6268B
power transformer
28480
06268-80091
6269B power transformer 28480
06269 80091
A1 Main PC Board — Mechanical
TB2 barrier strip, 13-terminal 28480 0360 1518
barrier strip jumpers (qty. 4) 28480
0360-1143
capacitor clamp. C44
28480
1400-0321
A2 RFI Filter Ass'y- — Mechanical
heatsink 28480 5020-2282
heatsink mounting standoff, .75”
28480 0380-0902
rnd. {qty. 4)
PC board mounting standoff. 28480 0380-0609
.625” hex (qty. 4)
washer, fiber, LI insulator
28480
3050-0697
cover 28480
5020 2284
cover standoff, 1 ” hex (qty. 4}
28480 0380-0173
6-11
