HP 6268B Operating And Service Manual

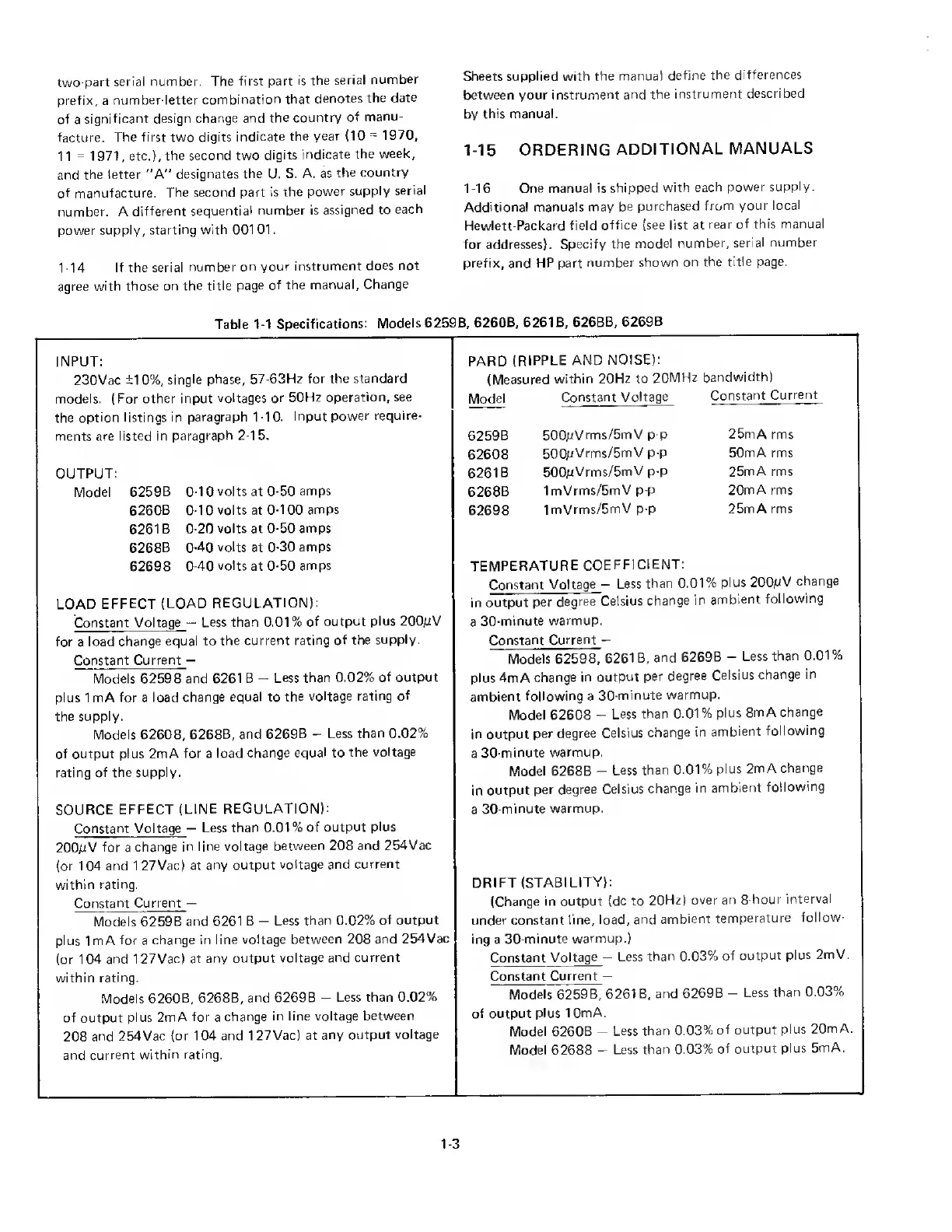

two-part serial number. The first part is the serial number
prefix, a number-letter combination that denotes the date
of a significant design change and the country of manu¬
facture. The first two digits indicate the year (10 = 1970,
11 = 1971, etc.), the second two digits indicate the week,
and the letter "A” designates the U. S. A. as the country
of manufacture. The second part is the power supply serial
number. A different sequential number is assigned to each
power supply, starting with 001 01.
1-14 If the serial number on your instrument does not
agree with those on the title page of the manual. Change
Sheets supplied with the manual define the differences
between your instrument and the instrument described
by this manual.
1-15 ORDERING ADDITIONAL MANUALS
1-16 One manual is shipped with each power supply.
Additional manuals may be purchased from your local
Hewlett-Packard field office (see list at rear of this manual
for addresses). Specify the model number, serial number
prefix, and HP part number shown on the title page.
Table 1-1 Specifications: Models 6259B, 6260B, 6261B, 6268B, 6269B
INPUT:
230Vac ±10%, single phase, 57-63Hz for the standard
models. (For other input voltages or 50Hz operation, see
the option listings in paragraph 1-10. Input power require¬
ments are listed in paragraph 2-1 5.
OUTPUT:
Model 6259B 0-10 volts at 0-50 amps
6260B 0-10 volts at 0-100 amps
6261 B 0-20 volts at 0-50 amps
6268B 0-40 volts at 0-30 amps
6269B 0-40 volts at 0-50 amps
LOAD EFFECT (LOAD REGULATION):
Constant Voltage — Less than 0.01% of output plus 200pV
for a load change equal to the current rating of the supply.
Constant Current —
Models 6259B and 6261 B - Less than 0.02% of output
plus 1 mA for a load change equal to the voltage rating of
the supply.
Models 6260B, 6268B, and 6269B - Less than 0.02%
of output plus 2mA for a load change equal to the voltage
rating of the supply.
SOURCE EFFECT (LINE REGULATION):
Constant Voltage - Less than 0.01 % of output plus
200pV for a change in line voltage between 208 and 254Vac
(or 104 and 1 27Vac) at any output voltage and current
within rating.
Constant Current -
Models 6259B and 6261 B - Less than 0.02% of output
plus 1 mA for a change in line voltage between 208 and 254Vac
(or 104 and 127Vac) at any output voltage and current
within rating.
Models 6260B, 6268B, and 6269B - Less than 0.02%
of output plus 2mA for a change in line voltage between
208 and 254Vac (or 104 and 127 Vac) at any output voltage
and current within rating.
PARD (RIPPLE AND NOISE):
(Measured within 20Hz to 20MHz bandwidth)
Model
Constant Voltage
Constant Current
6259B
500pVrms/5mV p-p
25mA rms
6260B
500pVrms/5mV p-p 50mA rms
6261 B
500pVrms/5mV p-p 25mA rms
6268B
1 mVrms/5mV p-p 20mA rms
6269B
1mVrms/5mV p-p 25mA rms
TEMPERATURE COEFFICIENT:
Constant Voltage - Less than 0.01% plus 200pV change
in output per degree Celsius change in ambient following
a 30-minute warmup.
Constant Current -
Models 6259B, 6261 B, and 6269B - Less than 0.01 %
plus 4mA change in output per degree Celsius change in
ambient following a 30-minute warmup.
Model 6260B - Less than 0.01 % plus 8mA change
in output per degree Celsius change in ambient following
a 30-minute warmup.
Model 6268B - Less than 0.01% plus 2mA change
in output per degree Celsius change in ambient following
a 30-minute warmup.
DRIFT (STABILITY):
(Change in output (dc to 20Hz) over an 8-hour interval
under constant line, load, and ambient temperature follow¬
ing a 30-minute warmup.)
Constant Voltage - Less than 0.03% of output plus 2mV.
Constant Current —
Models 6259B, 6261 B, and 6269B - Less than 0.03%
of output plus 10mA.
Model 6260B - Less than 0.03% of output plus 20mA.
Model 6268B - Less than 0.03% of output plus 5mA.
1-3
