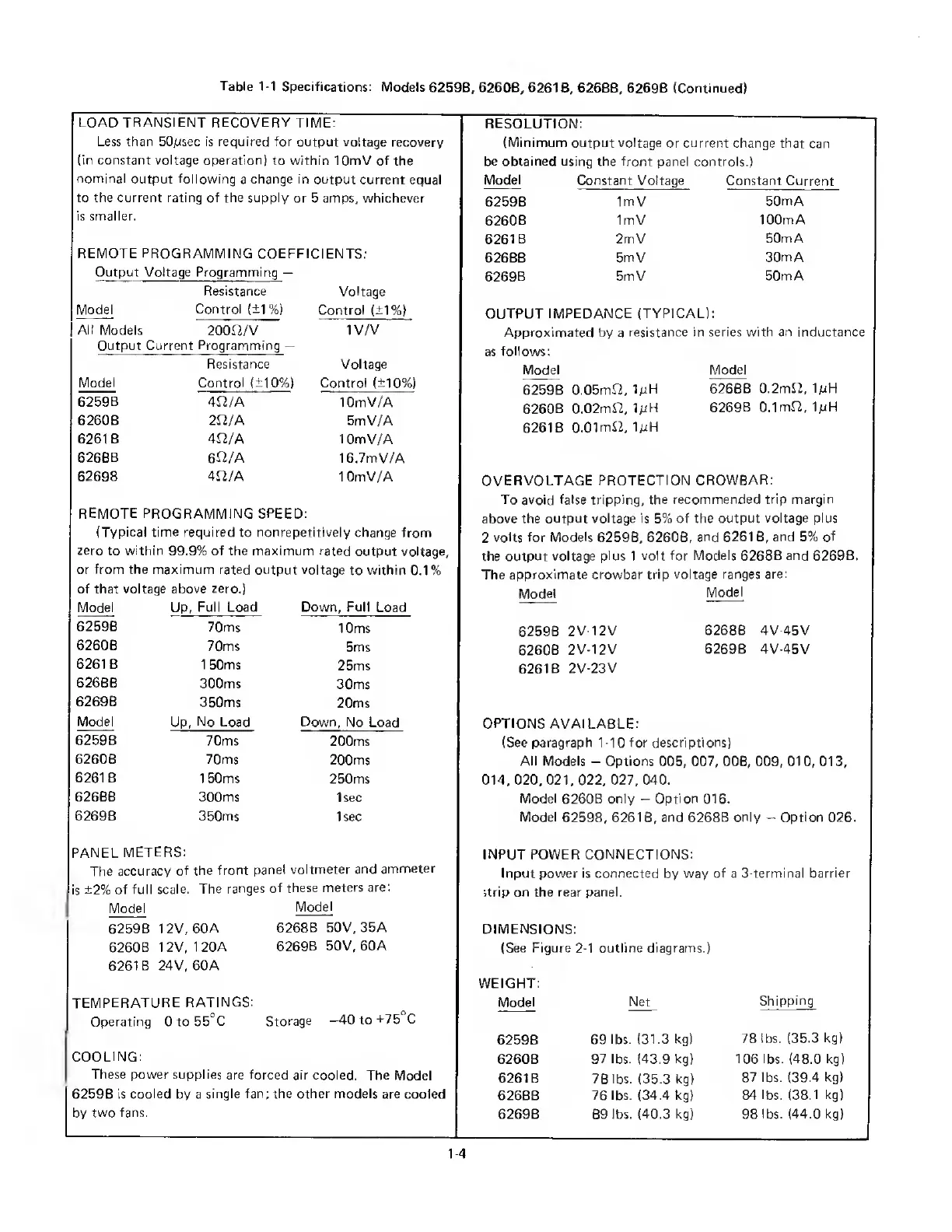

Table 1-1 Specifications: Models 6259B, 6260B, 6261B, 6268B, 6269B (Continued)
LOAD TRANSIENT RECOVERY TIME:
Less than 50/Jsec is required for output voltage recovery
(in constant voltage operation) to within lOmV of the
nominal output following a change in output current equal
to the current rating of the supply or 5 amps, whichever
is smaller.
REMOTE PROGRAMMING COEFFICIENTS:
Output Voltage Programming —
Resistance
Voltage
Model Control (±1 %)
Control (±1%)
All Models
200JT2/V
1V/V
Output Current Programming —
Resistance Voltage
Model Control (±10%) Control (±10%)
6259B 4I2/A
lOmV/A
6260B 2£2/A 5mV/A
6261 B 4L2/A
10m V/A
6268B 6J2/A
16.7mV/A
6269 B
4L2/A 1 OrnV/A
REMOTE PROGRAMMING SPEED:
(Typical time required to nonrepetitively change from
zero to within 99.9% of the maximum rated output voltage
or from the maximum rated output
of that voltage above zero.)
voltage to within 0.1 %
Model
Up, Full Load Down, Full Load
6259B
70ms
10ms
6260B
70ms
5ms
6261 B
1 50ms
25ms
6268B
300ms
30ms
6269B
350ms
20ms
Model
Up, No Load Down, No Load
6259B
70ms
200ms
6260B
70ms
200ms
6261 B 1 50ms
250ms
6268B
300ms Isec
6269B
350ms Isec
PANEL METERS:
The accuracy of the front panel voltmeter and ammeter
is ±2% of full scale. The ranges of these meters are:
Model Model
6259B 12V,60A 6268B 50V,35A
6260B 12V, 120A 6269B 50V, 60A
6261 B 24V, 60A
TEMPERATURE RATINGS:
Operating 0 to 55'C Storage -40 to +75 C
COOLING:
These power supplies are forced air cooled. The Model
6259B is cooled by a single fan; the other models are cooled
by two fans.
RESOLUTION:
(Minimum output voltage or current change that can
be obtained using the front panel controls.)
Model Constant Voltage Constant Current
6259 B 1 m V 50mA
6260B 1 mV 100mA
6261B 2mV 50mA
6268B 5m V 30mA
6269B 5m V 50mA
OUTPUT IMPEDANCE (TYPICAL):
Approximated by a resistance in series with an inductance
as follows:
Model Model
6259B 0.05mft, IpH 6268B 0.2m£2, 1/uH
6260B 0.02m£2, IpH 6269B 0.1m£2, IpH
6261 B 0.01mS2, IpH
OVERVOLTAGE PROTECTION CROWBAR:
To avoid false tripping, the recommended trip margin
above the output voltage is 5% of the output voltage plus
2 volts for Models 6259B, 6260B, and 6261 B, and 5% of
the output voltage plus 1 volt for Models 6268B and 6269B.
The approximate crowbar trip voltage ranges are:
Model Model
6259B 2V-12V 6268B 4V-45V
6260B 2V-12V 6269B 4V-45V
6261 B 2V-23V
OPTIONS AVAILABLE:
(See paragraph 1-10 for descriptions)
All Models - Options 005, 007, 008, 009, 010, 013,
014, 020, 021, 022, 027, 040.
Model 6260B only — Option 016.
Model 6259B, 6261 B, and 6268B only — Option 026.
INPUT POWER CONNECTIONS:
Input power is connected by way of a 3-terminal barrier
Trip on the rear panel.
DIMENSIONS:
(See Figure 2-1 outline diagrams.)
WEIGHT:
Model
Net
Shipping
6259B
69 lbs. (31.3 kg)
78 lbs. (35.3 kg)
6260B 97 lbs. (43.9 kg) 106 lbs. (48.0 kg)
6261 B
78 lbs. (35.3 kg)
87 lbs. (39.4 kg)
6268B
76 lbs. (34.4 kg) 84 lbs. (38.1 kg)
6269B 89 lbs. (40.3 kg)
98 lbs. (44.0 kg)
1-4
