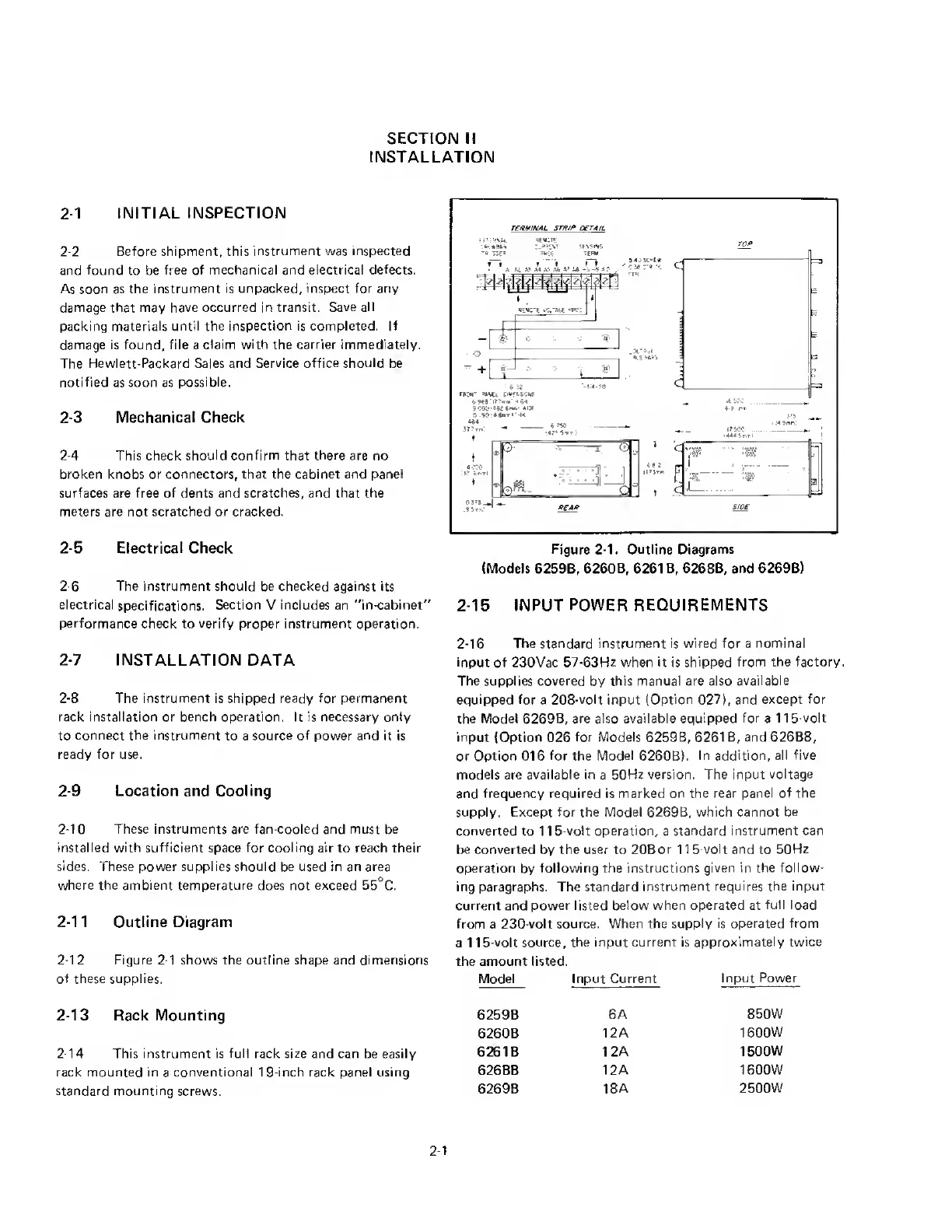

SECTION
II
INSTALLATION
2-1
INITIAL
INSPECTION
2-2
Before
shipment,
this
instrument
was
inspected
and
found
to
be
free
of
mechanical
and
electrical
defects.
As
soon
as
the
instrument
is
unpacked,
inspect
for
any
damage
that
may
have
occurred
in
transit.
Save
all
packing
materials
until
the
inspection
is
completed.
If
damage
is
found,
file
a
claim
with
the
carrier
immediately.
The
Hewlett-Packard
Sales
and
Service
office
should
be
notified
as
soon
as
possible.
2-3
Mechanical
Check
2-4
This
check
should
confirm
that
there
are
no
broken
knobs
or
connectors,
that
the
cabinet
and
panel
surfaces
are
free
of
dents
and
scratches,
and
that
the
meters
are
not
scratched
or
cracked.
2-5
Electrical
Check
2-6
The
instrument
should
be
checked
against
its
electrical
specifications.
Section
V
includes
an
"in-cabinet”
performance
check
to
verify
proper
instrument
operation.
2-7
INSTALLATION
DATA
2-8
The
instrument
is
shipped
ready
for
permanent
rack
installation
or
bench
operation.
It
is
necessary
only
to
connect
the
instrument
to
a
source
of
power
and
it
is
ready
for
use.
2-9
Location
and
Cooling
2-10
These
instruments
are
fan-cooled
and
must
be
installed
with
sufficient
space
for
cooling
air
to
reach
their
sides.
These
power
supplies
should
be
used
in
an
area
where
the
ambient
temperature
does
not
exceed
55"C.
2-11
Outline
Diagram
2-1
2
Figure
2-1
shows
the
outline
shape
and
dimensions
of
these
supplies.
2-13
Rack
Mounting
2-14
This
instrument
is
full
rack
size
and
can
be
easily
rack
mounted
in
a
conventional
19-inch
rack
panel
using
standard
mounting
screws.
TERMINAL
STRIP
DETAIL
-esi;te
.*•:«»«
5.1
n
sing
336=?
tEPM
0
52
-!/«•
70
ffrON'
Cl¥ENOCHS
6
9e8:ir?*<p'
*
9C0C"4$2
6nr.'
*1*
5
50'.4
8»t
i
TOP
3'S
54
9mr»|
JJSCC
--•».
SIDE
Figure
2-1.
Outline
Diagrams
(Models
6259B,
6260B,
6261B,
6268B,
and
6269B)
2-15
INPUT
POWER
REQUIREMENTS
2-16
The
standard
instrument
is
wired
for
a
nominal
input
of
230Vac
57-63Hz
when
it
is
shipped
from
the
factory.
The
supplies
covered
by
this
manual
are
also
available
equipped
for
a
208-volt
input
(Option
027),
and
except
for
the
Model
6269B,
are
also
available
equipped
for
a
115-volt
input
(Option
026
for
Models
6259B,
6261
B,
and
6268B,
or
Option
016
for
the
Model
6260B).
In
addition,
all
five
models
are
available
in
a
50Hz
version.
The
input
voltage
and
frequency
required
is
marked
on
the
rear
panel
of
the
supply.
Except
for
the
Model
6269B,
which
cannot
be
converted
to
11
5-volt
operation,
a
standard
instrument
can
be
converted
by
the
user
to
208
or
11
5-volt
and
to
50Hz
operation
by
following
the
instructions
given
in
the
follow¬
ing
paragraphs.
The
standard
instrument
requires
the
input
current
and
power
listed
below
when
operated
at
full
load
from
a
230-volt
source.
When
the
supply
is
operated
from
a
115-volt
source,
the
input
current
is
approximately
twice
the
amount
listed.
Model
Input
Current
Input
Powe
6259B
6A
850W
6260B
12A
1600W
6261B
12A
1500W
6268B
12A
1600W
6269B
18A
2500W
