a. Service door (see Service door on page 37).
b. Battery (see Battery on page 38).

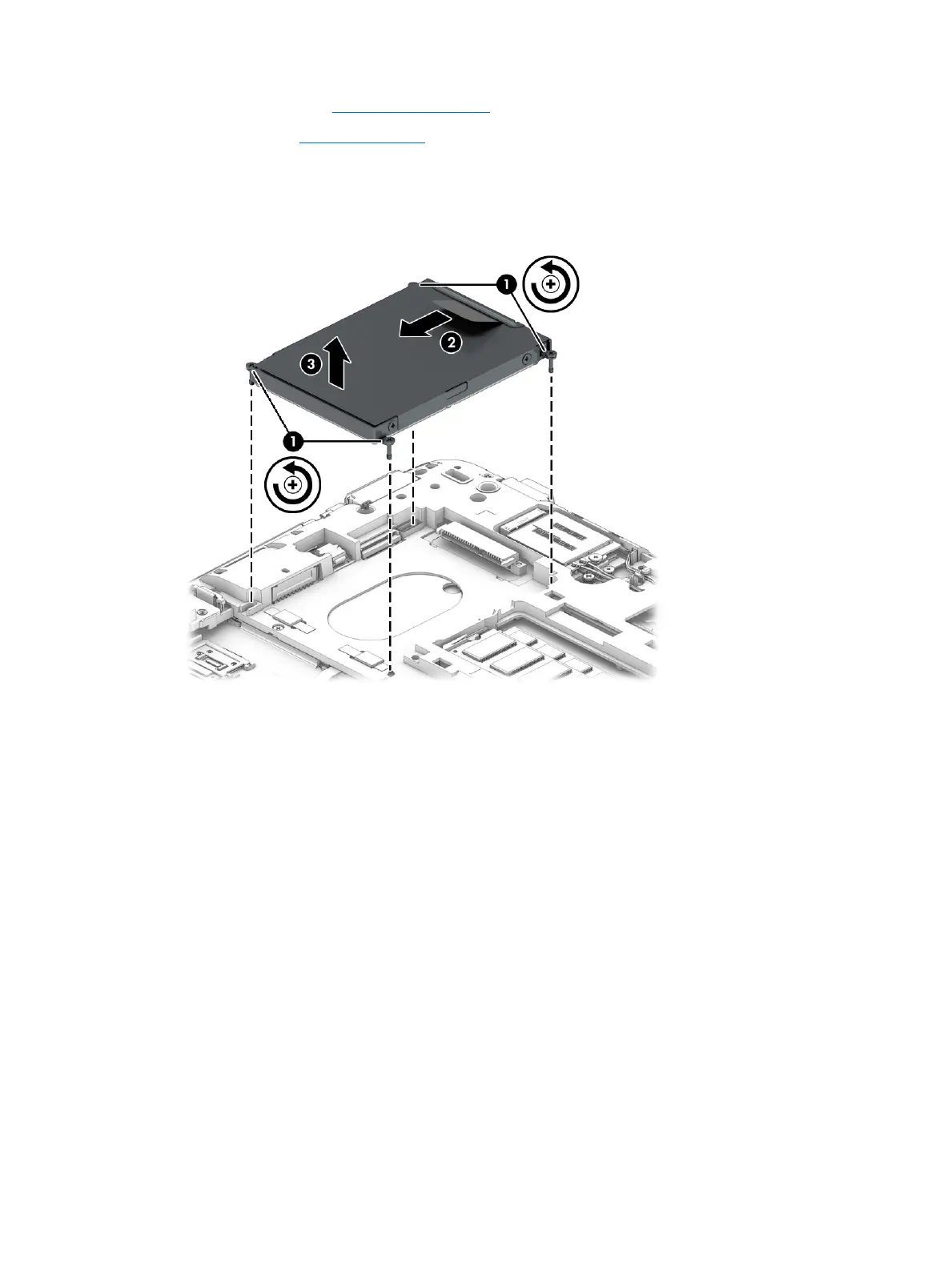

Remove the hard drive:
1. Loosen 4 P1 captive screws or remove 4 M 2.0x8L P1 screws (1).
2. Pull the plastic tab (2), and then remove the hard drive (3).
40 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
