3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the following components:
a. Service door (see Service door on page 37).
b. Remove the battery (see Battery on page 38)
c. Hard drive (see Hard drive on page 39).
Remove the solid-state drive:
▲

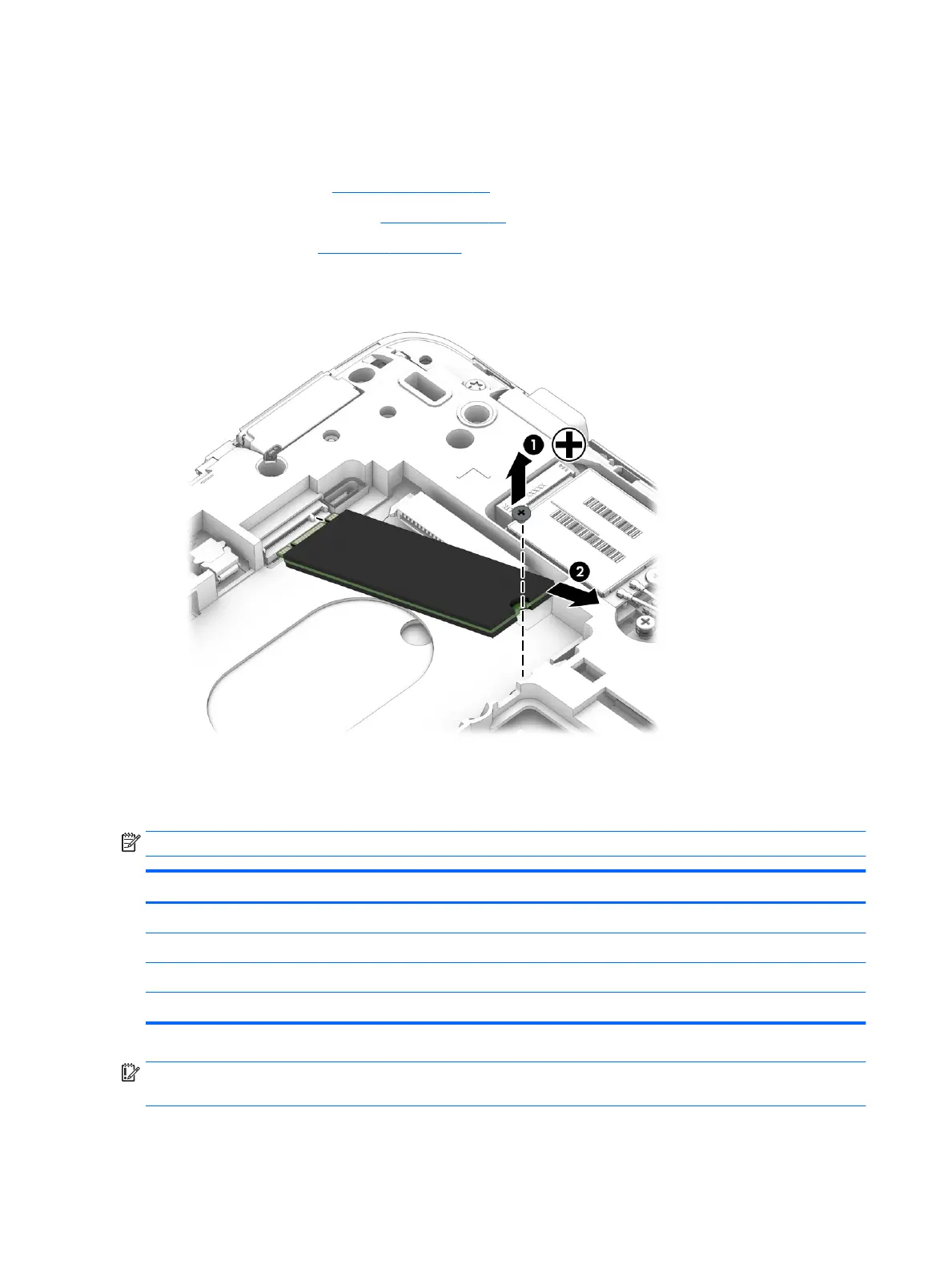

Remove 1 Phillips M2.0x8 screw (1), and then remove the solid-state drive (2).
Reverse this procedure to install the solid-state drive.
WWAN module (select products only)
NOTE: The WWAN module spare part kit includes the cable.
Description Spare part number
WWAN module
T77W595 LTE M.2 with GPS 800870-002
Huawei Wrangler 2 HSPA+M.2 918670-852
Macan ME906S LTE with GPS M.2 918671-852
IMPORTANT: Make special note of each screw and screw lock size and location during removal and
replacement
Before removing the WWAN module, follow these steps:
42 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
