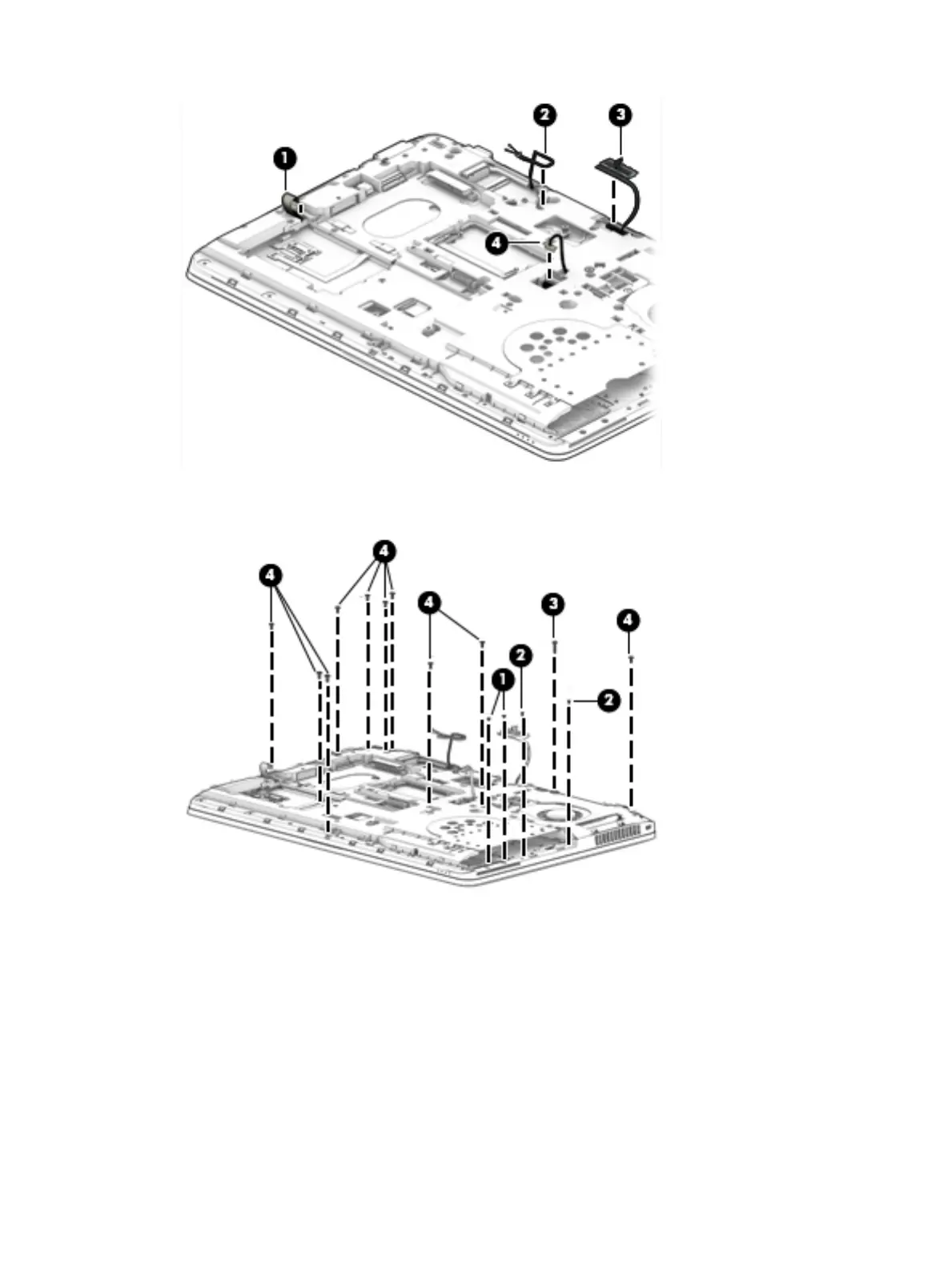

2. Remove the two M2x3L screws (1), the two M2x1.5L 1 P0 screws (2), 1 M2.5x8L T8 screw (3), and 9
M2.6x6L T8 screws (4).
Reverse this procedure to install the base enclosure.
56 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
