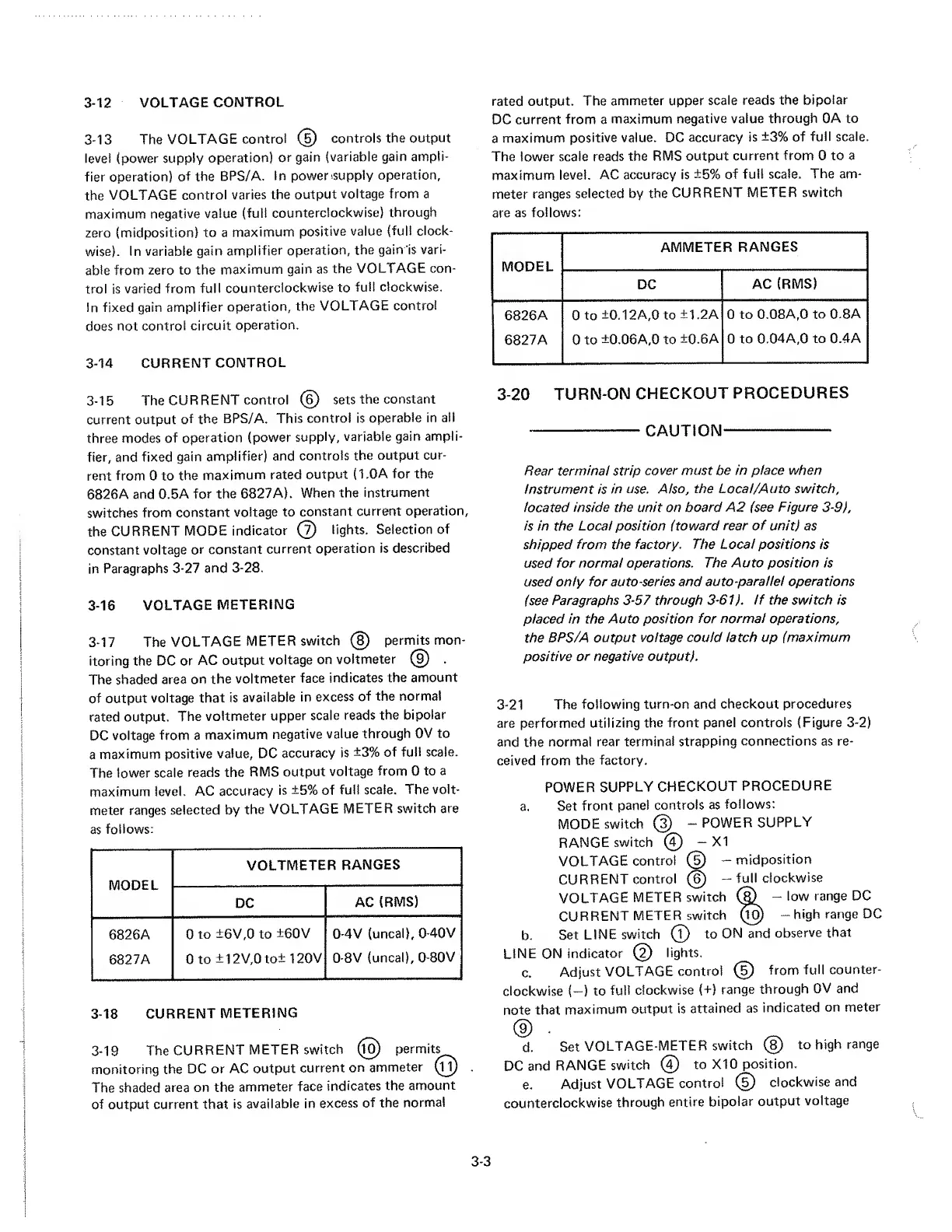

Page #12 background image
3-12
VOLTAGE
CONTROL
3-13
The
VOLTAGE
control
®
controls
the
output
level
(power
supply
operation)
or
gain
(variable
gain
ampli¬
fier
operation)
of
the
BPS/A.
In
powensupply
operation,
the
VOLTAGE
control
varies
the
output
voltage
from
a
maximum
negative
value
(full
counterclockwise)
through
zero
(midposition}
to
a
maximum
positive
value
(full
clock¬
wise).
In
variable
gain
amplifier
operation,
the
gainls
vari¬
able
from
zero
to
the
maximum
gain
as
the
VOLTAGE
con¬
trol
is
varied
from
full
counterclockwise
to
full
clockwise.
In
fixed
gain
amplifier
operation,
the
VOLTAGE
control
does
not
control
circuit
operation.
3-14
CURRENT
CONTROL
3-15
The
CURRENT
control
(6)
sets
the
constant
current
output
of
the
BPS/A.
This
control
is
operable
in
all
three
modes
of
operation
(power
supply,
variable
gain
ampli¬
fier,
and
fixed
gain
amplifier)
and
controls
the
output
cur¬
rent
from
0
to
the
maximum
rated
output
(1.0A
for
the
6826A
and
0.5A
for
the
6827A).
When
the
instrument
switches
from
constant
voltage
to
constant
current
operation,
the
CURRENT
MODE
indicator
©
tights.
Selection
of
constant
voltage
or
constant
current
operation
is
described
in
Paragraphs
3-27
and
3-28,
3-16
VOLTAGE
METERING
3-17
The
VOLTAGE
METER
switch
(8)
permits
mon¬
itoring
the
DC
or
AC
output
voltage
on
voltmeter
®
.
The
shaded
area
on
the
voltmeter
face
indicates
the
amount
of
output
voltage
that
is
available
in
excess
of
the
norma!
rated
output.
The
voltmeter
upper
scale
reads
the
bipolar
DC
voltage
from
a
maximum
negative
value
through
OV
to
a
maximum
positive
value,
DC
accuracy
is
±3%
of
full
scale.
The
lower
scale
reads
the
RMS
output
voltage
from
0
to
a
maximum
level.
AC
accuracy
is
±5%
of
full
scale.
The
volt¬
meter
ranges
selected
by
the
VOLTAGE
METER
switch
are
as
follows:
MODEL
VOLTMETER
RANGES
DC
AC
(RMS)
6826A
6827A
0
to
±6V,0
to
±60V
Oto
±12V,0to±
120V
0-4V
(uncai),
0-40V
0-8V
(uncai),
0-80V
3-18
CURRENT
METERING
3-19
The
CURRENT
METER
switch
@
permits
monitoring
the
DC
or
AC
output
current
on
ammeter
(H)
The
shaded
area
on
the
ammeter
face
indicates
the
amount
of
output
current
that
is
available
in
excess
of
the
normal
rated
output.
The
ammeter
upper
scale
reads
the
bipolar
DC
current
from
a
maximum
negative
value
through
OA
to
a
maximum
positive
value.
DC
accuracy
is
±3%
of
full
scale.
The
lower
scale
reads
the
RMS
output
current
from
0
to
a
maximum
level.
AC
accuracy
is
±5%
of
full
scale.
The
am¬
meter
ranges
selected
by
the
CURRENT
METER
switch
are
as
follows:
MODEL
AMMETER
RANGES
DC
AC
(RMS)
6826A
6827A
0
to
±0.12A,0
to
±1.2A
0
to
±Q.06A,0
to
±0.6A
0
to
0.08A,0
to
0.8A
0
to
0.04A,0
to
0.4A
3-20
TURN-ON
CHECKOUT
PROCEDURES
-CAUTION--—
Rear
terminal
strip
cover
must
be
in
place
when
Instrument
is
in
use.
Also,
the
Local/Auto
switch,
located
inside
the
unit
on
board
A2
(see
Figure
3-9),
is
in
the
Local
position
(toward
rear
of
unit)
as
shipped
from
the
factory.
The
Local
positions
is
used
for
normal
operations.
The
Auto
position
is
used
only
for
auto-series
and
auto-parallel
operations
(see
Paragraphs
3-57
through
3-61).
If
the
switch
is
placed
in
the
Auto
position
for
normal
operations,
the
BPS/A
output
voltage
could
latch
up
(maximum
positive
or
negative
output).
3-21
The
following
turn-on
and
checkout
procedures
are
performed
utilizing
the
front
panel
controls
(Figure
3-2)
and
the
normal
rear
terminal
strapping
connections
as
re¬
ceived
from
the
factory.
POWER
SUPPLY
CHECKOUT
PROCEDURE
a.
Set
front
panel
controls
as
follows:
MODE
switch
©
POWER
SUPPLY
RANGE
switch
©
-
XI
VOLTAGE
control
©
-midposition
CURRENT
control
(6)
full
clockwise
VOLTAGE
METER
switch
@
-
low
range
DC
CURRENT
METER
switch
@
-high
range
DC
b.
Set
LINE
switch
©
to
ON
and
observe
that
LINE
ON
indicator
©
lights.
c.
Adjust
VOLTAGE
control
©
from
full
counter¬
clockwise
{-)
to
full
clockwise
(+}
range
through
0V
and
note
that
maximum
output
is
attained
as
indicated
on
meter
®
d.
Set
VOLTAGE-METER
switch
©
to
high
range
DC
and
RANGE
switch
@
to
X10
position.
e.
Adjust
VOLTAGE
control
©
clockwise
and
counterclockwise
through
entire
bipolar
output
voltage
3-3
