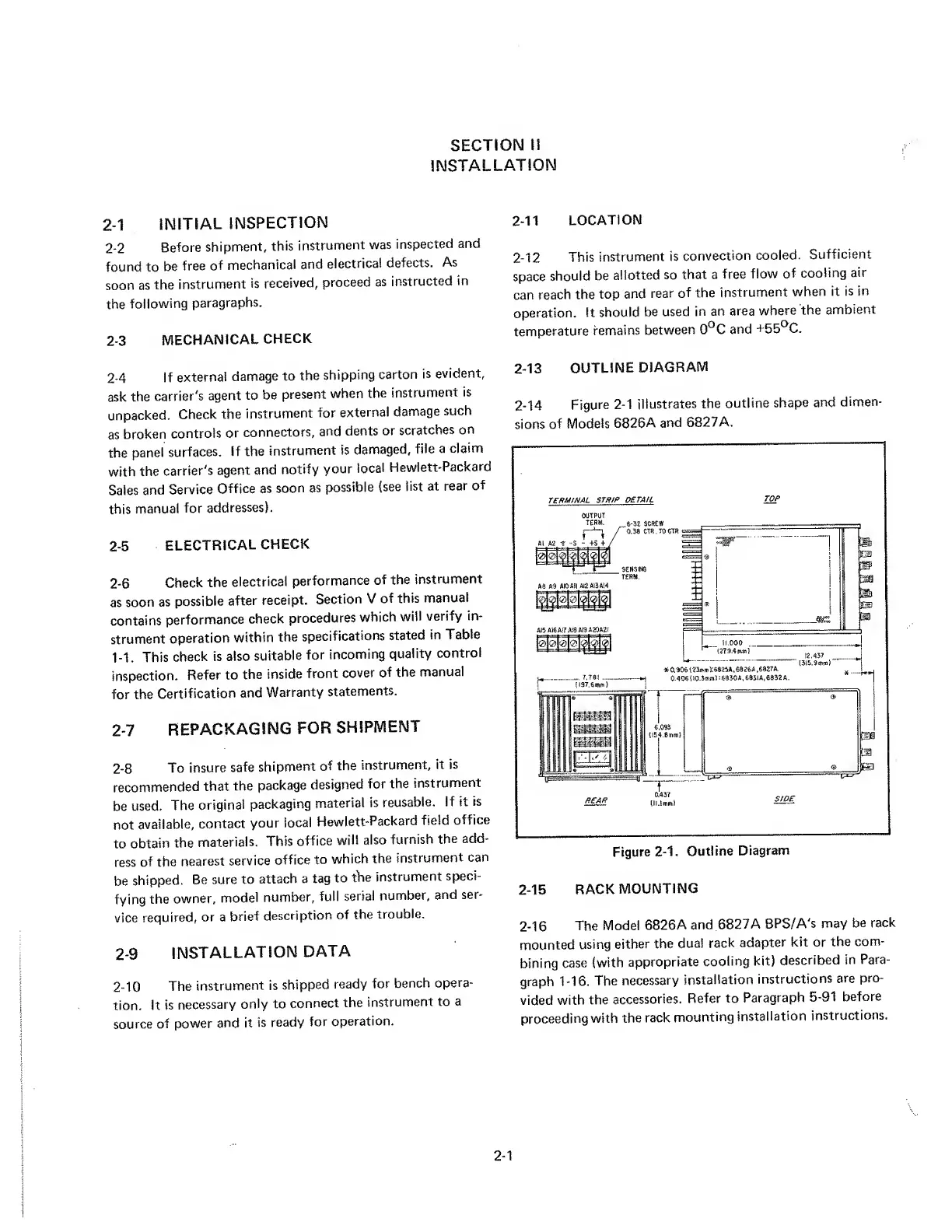

HP 6826A Service Manual

SECTION II
INSTALLATION
2-1 INITIAL INSPECTION
2-2 Before shipment, this instrument was inspected and
found to be free of mechanical and electrical defects. As
soon as the instrument is received, proceed as instructed in
the following paragraphs.
2-3 MECHANICAL CHECK
2-4 If external damage to the shipping carton is evident,
ask the carrier's agent to be present when the instrument is
unpacked. Check the instrument for external damage such
as broken controls or connectors, and dents or scratches on
the panel surfaces, if the instrument is damaged, file a claim
with the carrier's agent and notify your local Hewlett-Packard
Sales and Service Office as soon as possible (see list at rear of
this manual for addresses).
2-5 ELECTRICAL CHECK
2-6 Check the electrical performance of the instrument
as soon as possible after receipt. Section V of this manual
contains performance check procedures which will verify in¬
strument operation within the specifications stated in Table
1- 1 . This check is also suitable for incoming quality control
inspection. Refer to the inside front cover of the manual
for the Certification and Warranty statements.
2- 7 REPACKAGING FOR SHIPMENT
2-8 To insure safe shipment of the instrument, it is
recommended that the package designed for the instrument
be used. The original packaging material is reusable. If it is
not available, contact your local Hewlett-Packard field office
to obtain the materials. This office will also furnish the add¬
ress of the nearest service office to which the instrument can
be shipped. Be sure to attach a tag to the instrument speci¬
fying the owner, model number, full serial number, and ser¬
vice required, or a brief description of the trouble.
2-9 INSTALLATION DATA
2-10 The instrument is shipped ready for bench opera¬
tion. It is necessary only to connect the instrument to a
source of power and it is ready for operation.
2-11 LOCATION
2-12 This instrument is convection cooled. Sufficient
space should be allotted so that a free flow of cooling air
can reach the top and rear of the instrument when it is in
operation. It should be used in an area where the ambient
temperature remains between 0°C and +55°C.
2-13 OUTLINE DIAGRAM
2-14 Figure 2-1 illustrates the outline shape and dimen¬
sions of Models 6826A and 6827A.
2-15 RACK MOUNTING
2-16 The Mode! 6826A and 6827A BPS/A's may be rack
mounted using either the dual rack adapter kit or the com¬
bining case (with appropriate cooling kit) described in Para¬
graph 1-16. The necessary installation instructions are pro¬
vided with the accessories. Refer to Paragraph 5-91 before
proceeding with the rack mounting installation instructions.
2-1

HP 6826A Specifications

General

Brand	HP
Model	6826A
Category	Power Supply
Language	English
